Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
KLKD-20
KLKD-20 is a 20 Amp, 600 Volt AC/DC fast acting midget fuse designed for supplemental overcurrent protection.

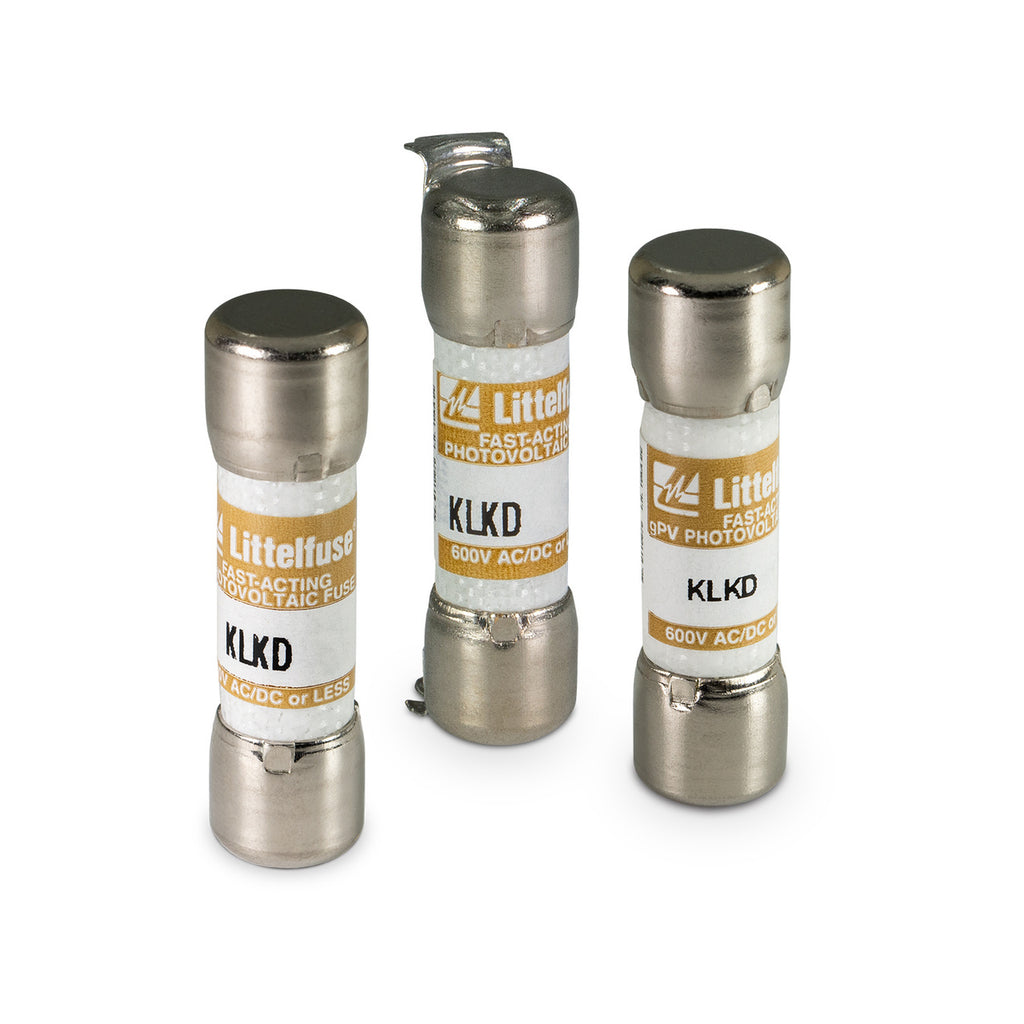

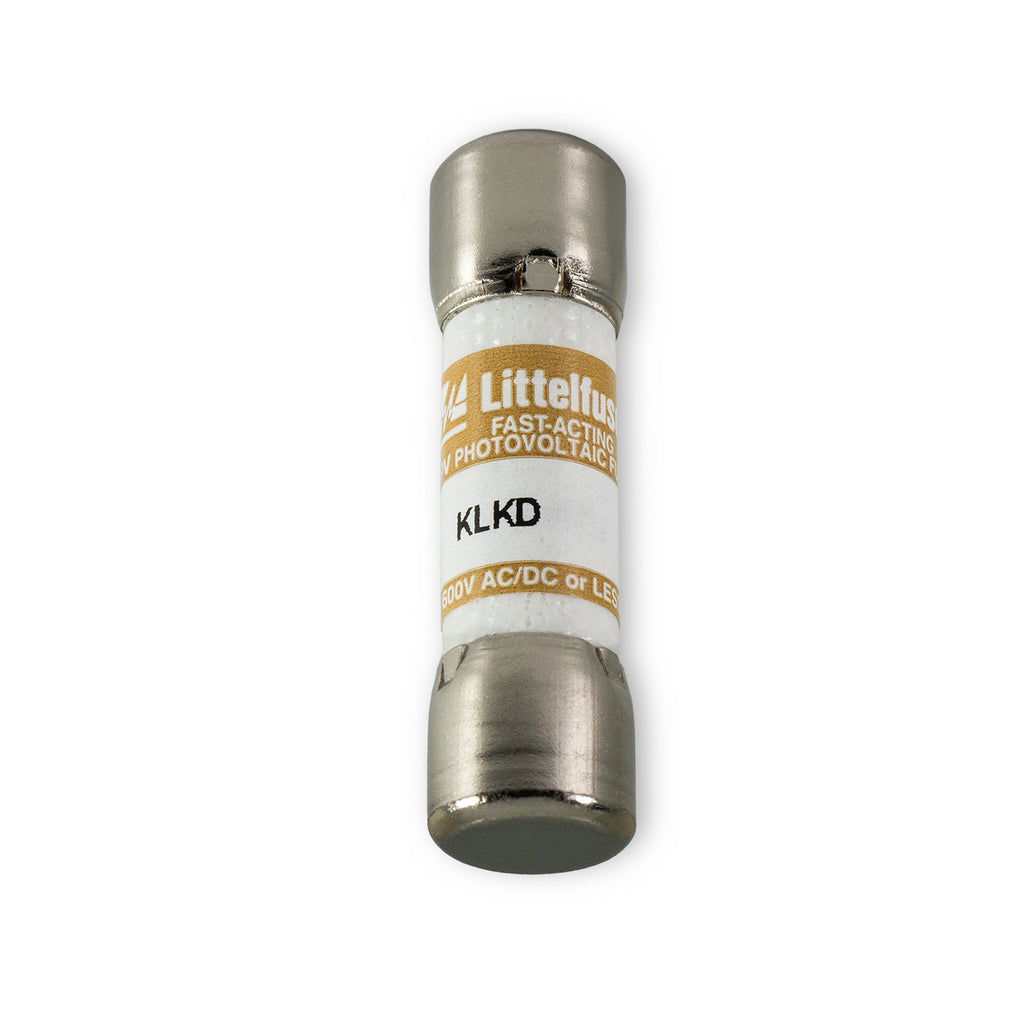

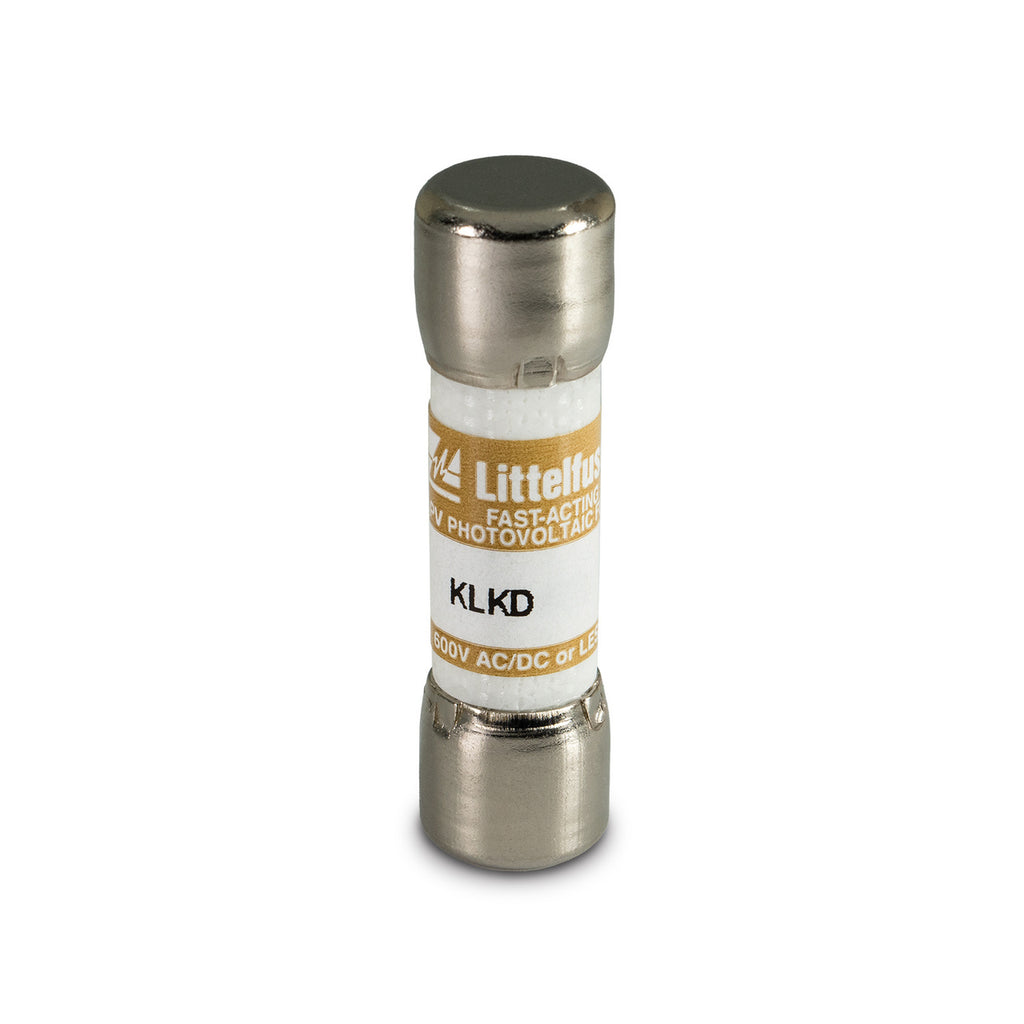

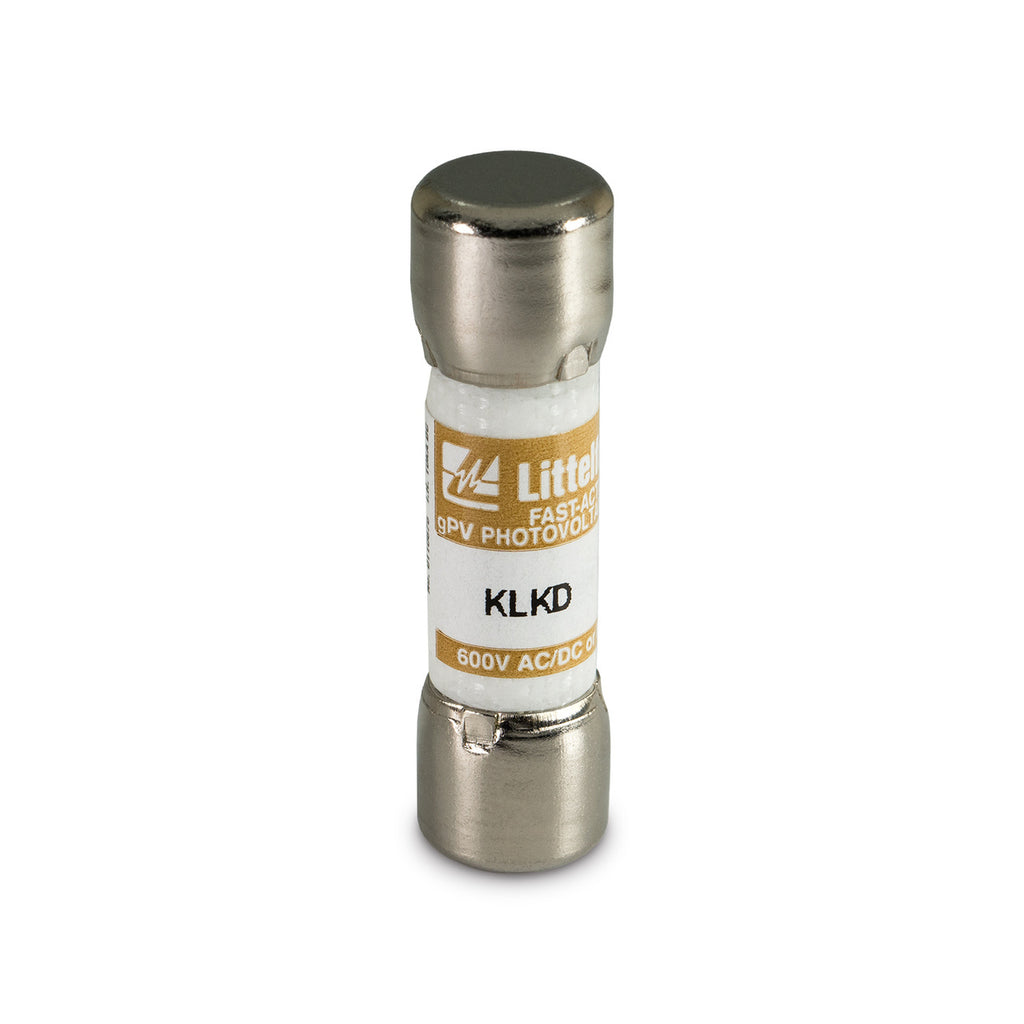

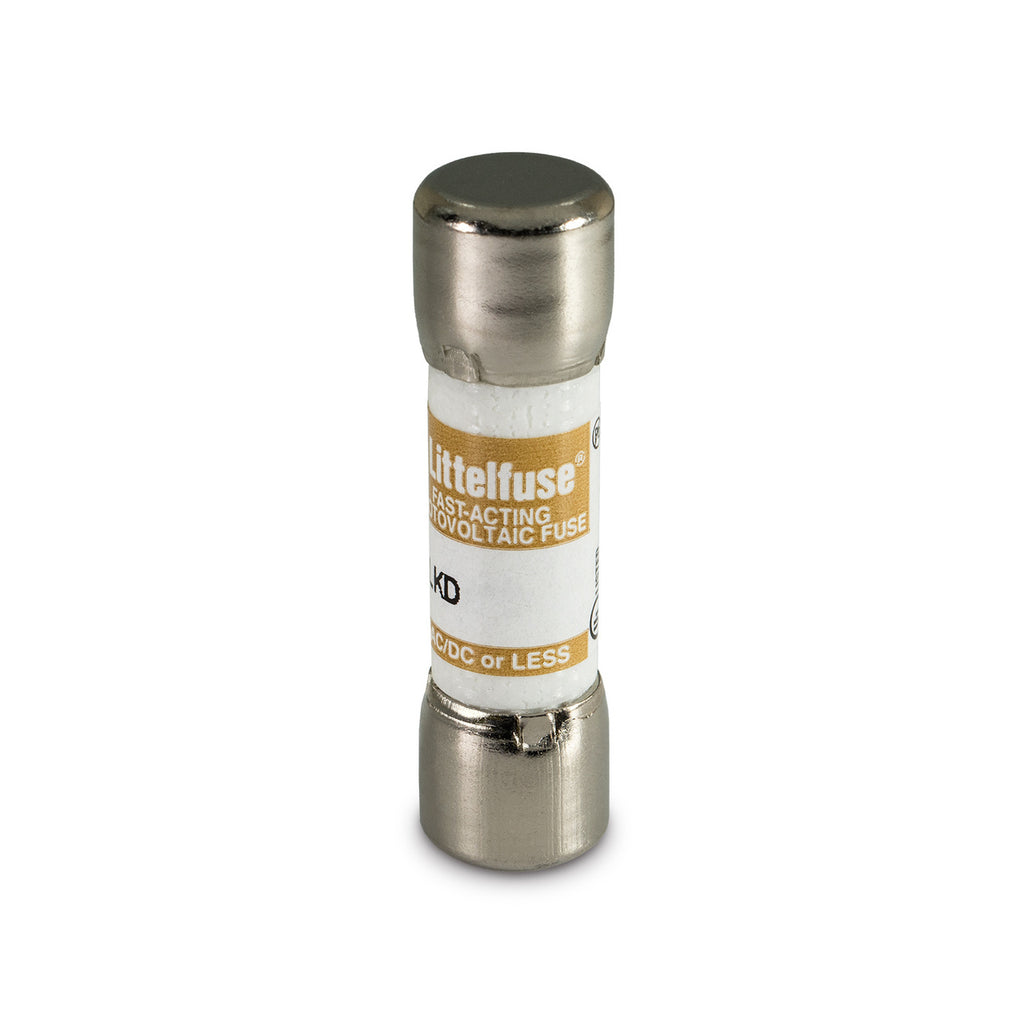

This Littelfuse KLKD-20 fuse features a compact 10x38mm midget size with a melamine body and copper alloy end caps. It is rated for 600 VAC and 600 VDC operation, with a high interrupting rating of 100,000 AIC at 600 VAC and 50,000 AIC at 600 VDC. The fuse meets UL and IEC photovoltaic fuse specifications and is RoHS compliant. It is intended for use in solar combiner boxes and circuits requiring fast-acting protection against overcurrent conditions.
- Amperage: 20 Amps
- Voltage Rating: 600 VAC / 600 VDC
- Fuse Type: Fast Acting Midget Fuse
- Size: 10 x 38 mm
- Interrupting Rating: 100,000 AIC @ 600 VAC
- DC Interrupting Rating: 50,000 AIC @ 600 VDC
- Body Material: Melamine
- End Caps: Copper Alloy
- Certifications: UL and IEC Photovoltaic Specifications
- RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLKD-20
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Diameter : 0.41
- Barrels : 1
Product Data
- Weight : 0.08
