Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLK025

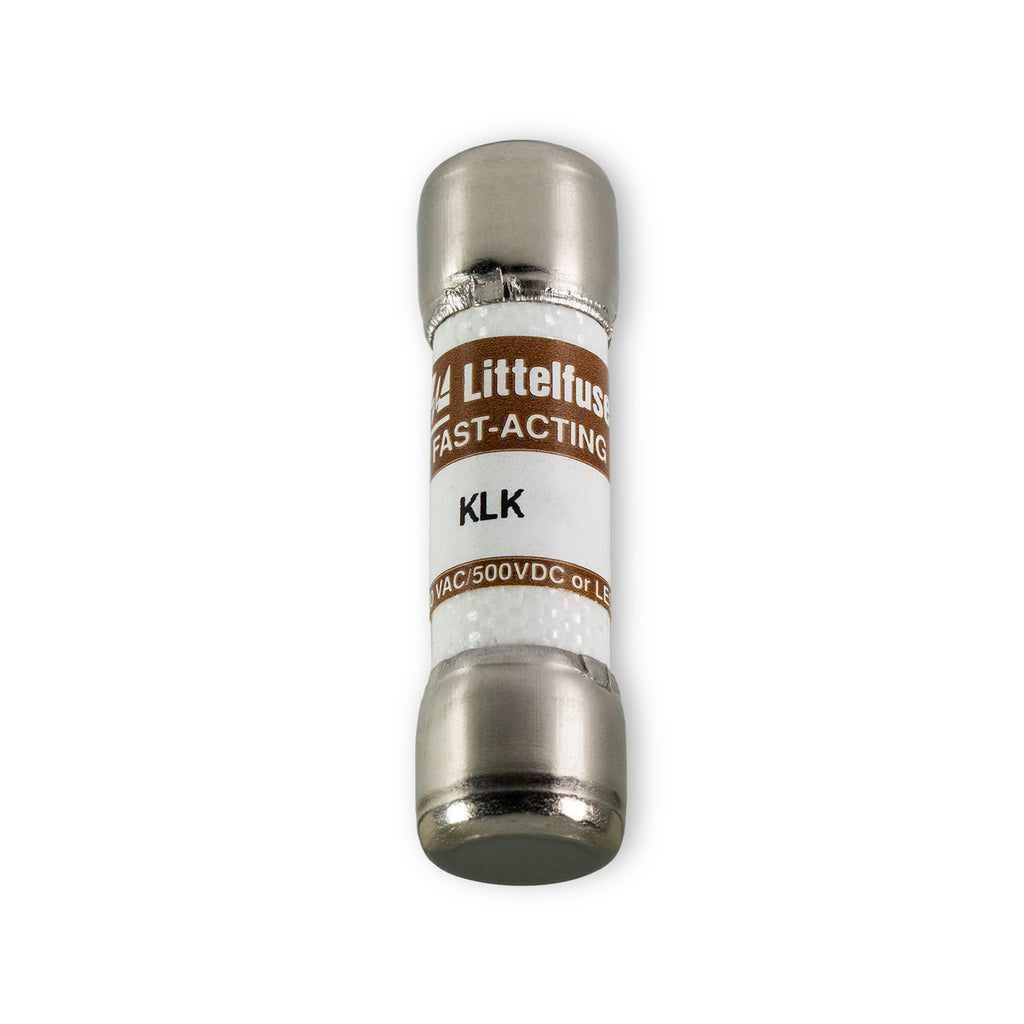

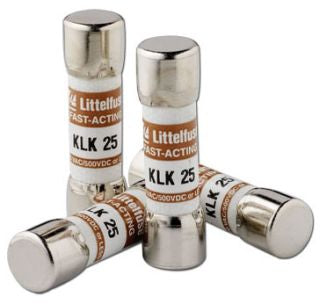

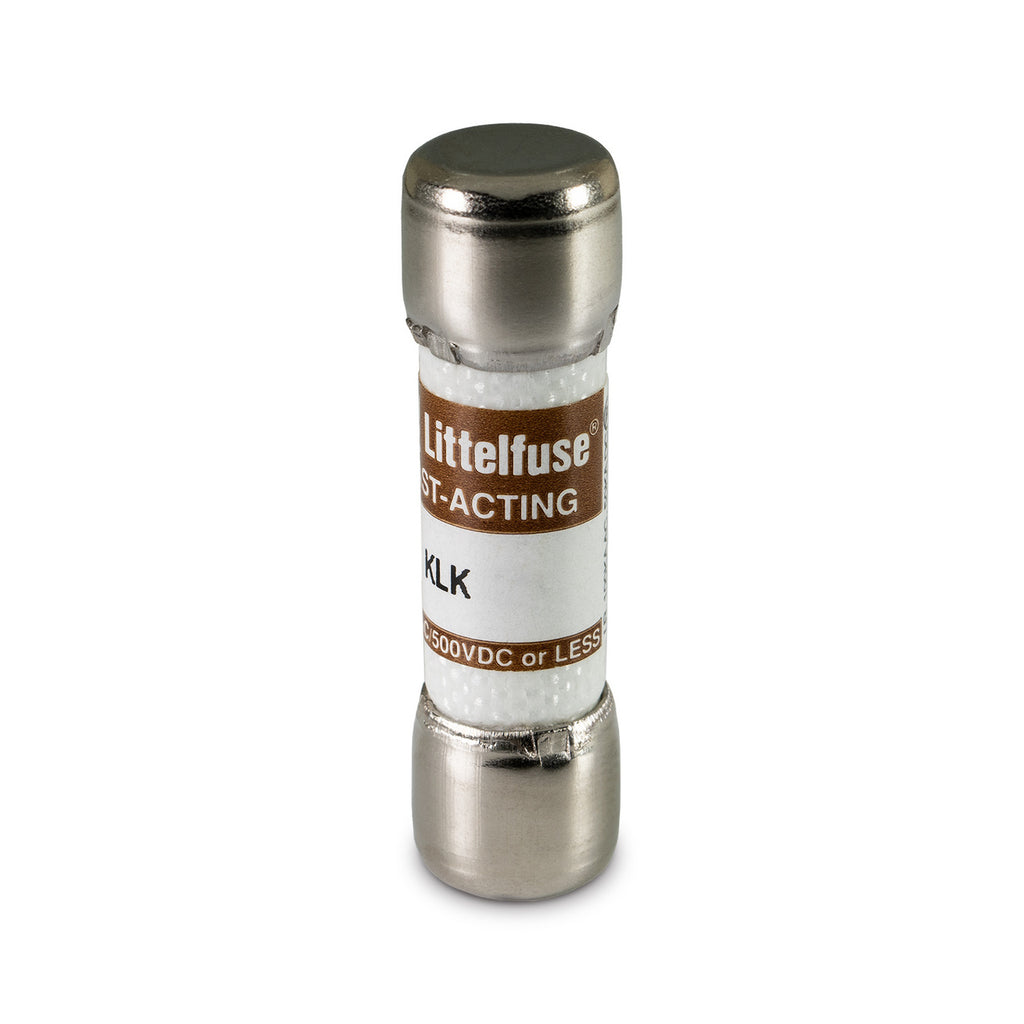

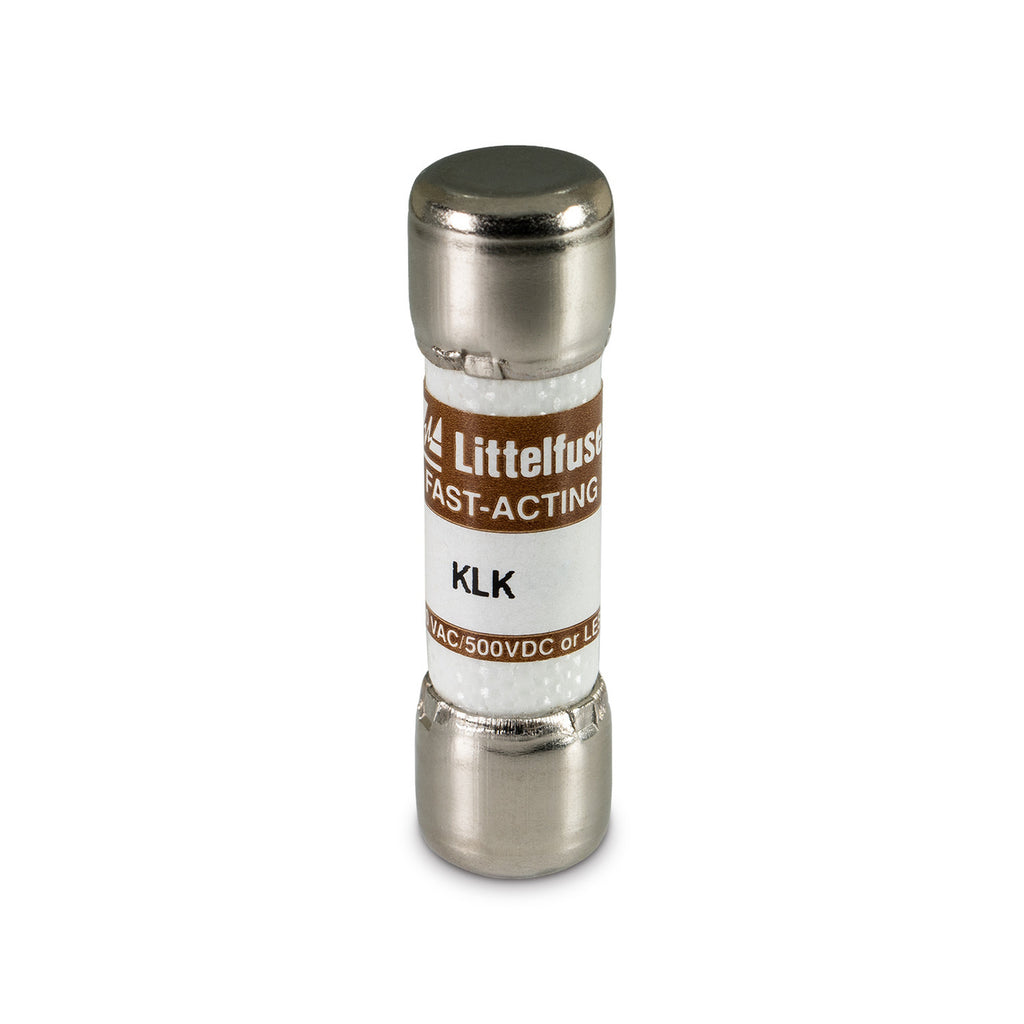

KLK025 is a Littelfuse 25 Amp, 600 Volt fast acting midget cartridge fuse from the KLK series.
This fuse features a fast-acting response time and a high interrupting rating of 100,000 Amps AC RMS symmetrical, making it suitable for control circuits, street lighting, H.I.D. lighting, computers, and other applications without high inrush currents. It has a cartridge mounting type with dimensions of 13/32 inch diameter and 1 1/2 inch length. The KLK025 complies with UL, CSA certifications, and is RoHS compliant.
- Amperage: 25 Amps
- Voltage Rating: 600 Volts AC / 500 Volts DC
- Speed: Fast Acting
- Mounting Type: Cartridge
- Class: Midget
- Interrupting Rating: 100,000 Amps AC, 50,000 Amps DC
- Dimensions: 13/32 inch diameter x 1 1/2 inch length
- Series: KLK
- Certifications: UL Listed, CSA Certified, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLK025
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLK Series - Fast-Acting Midget Fuses
- Type : KLK Series - Fast-Acting Midget Fuses
- Voltage : 600
- Amperage : 25
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : FA - Fast Action
Product Data
- UPC : 079458250725
- GTIN : 00079458250725
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 8.4
- Certification : UL Listed, CSA Certified, CE, QPL, RoHS
