Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLK005

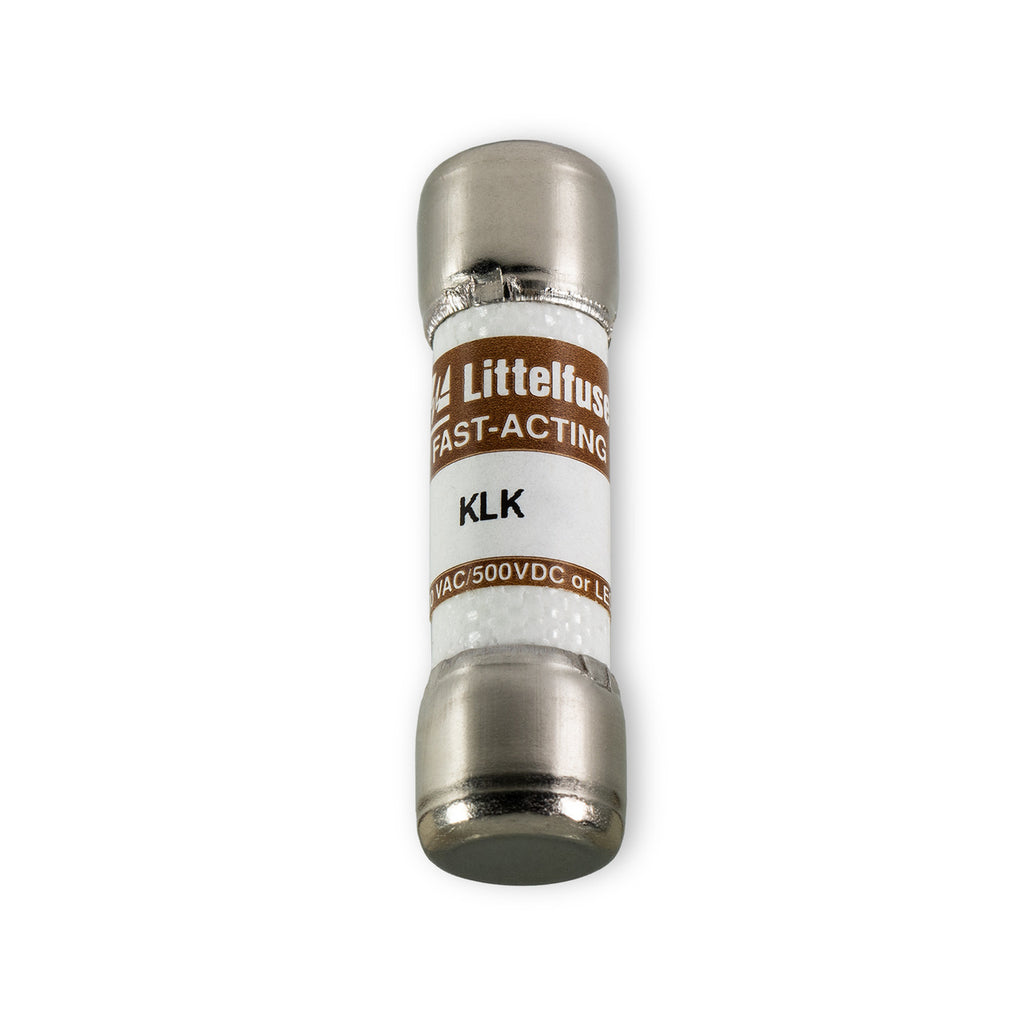

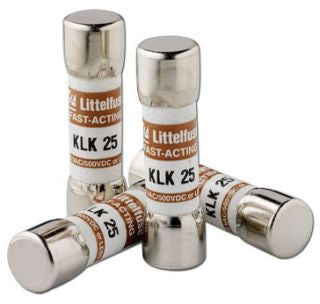

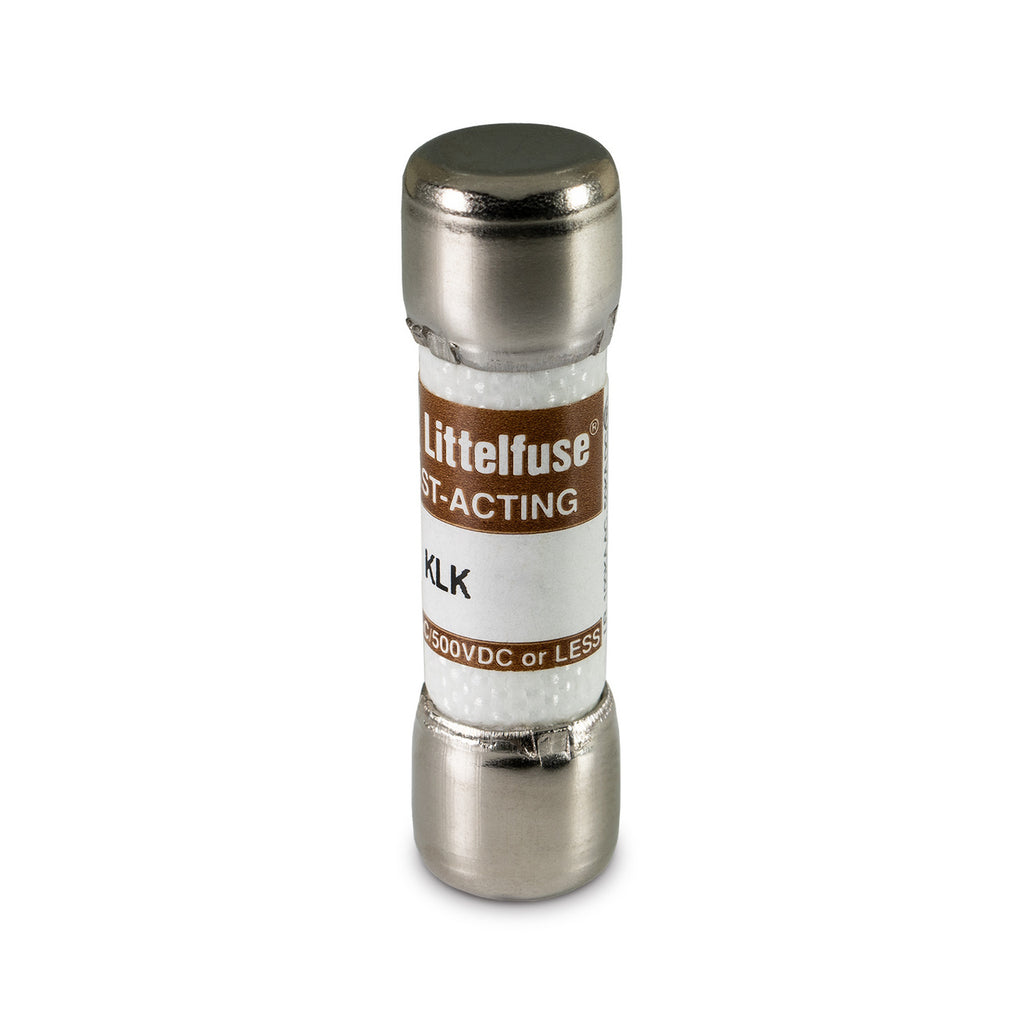

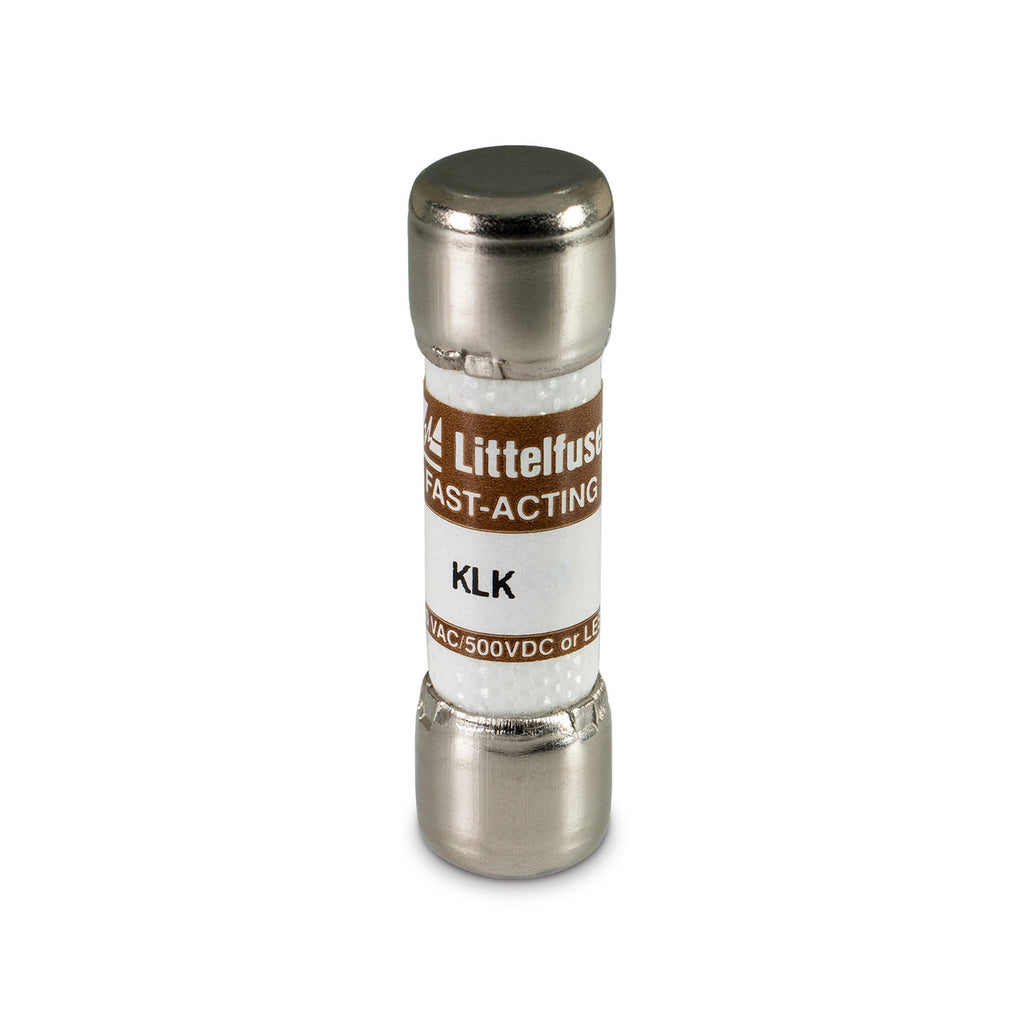

KLK005 is a Littelfuse KLK Series fast-acting midget fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a 5A current rating and a 600VAC/500VDC voltage rating, making it suitable for a wide range of electrical systems. The KLK005 fuse is constructed with fast-acting characteristics and is current limiting, providing high interrupting capacity for enhanced safety. It is part of the Powr-Gard brand line and is lead-free and RoHS compliant. The physical dimensions are 13/32 inch diameter by 1 1/2 inch length, fitting standard midget fuse holders.
- Series: KLK
- Amperage: 5A
- Voltage Rating: 600VAC / 500VDC
- Interrupting Rating: 100,000A
- Mounting Type: Midget
- Physical Size: 13/32 in x 1 1/2 in
- Fast-Acting
- Current Limiting
- Lead-Free
- RoHS Compliant
Specifications
- Part Number: KLK005
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLK Series - Fast-Acting Midget Fuses
- Type : KLK Series - Fast-Acting Midget Fuses
- Voltage : 600
- Amperage : 5
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : FA - Fast Action
Product Data
- UPC : 079458250558
- GTIN : 00079458250558
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 6.9
- Certification : CE, CSA Certified, QPL, RoHS, UL Listed
