Description
KLK002

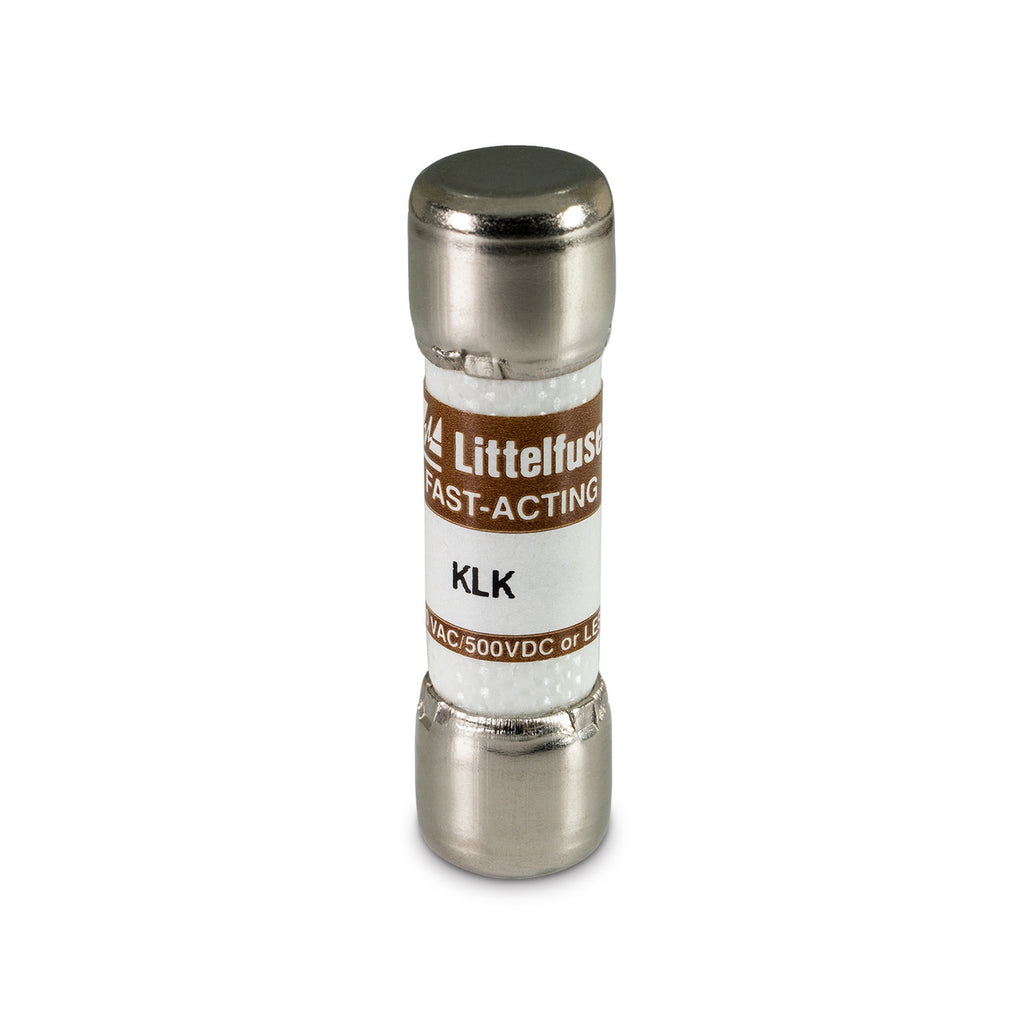

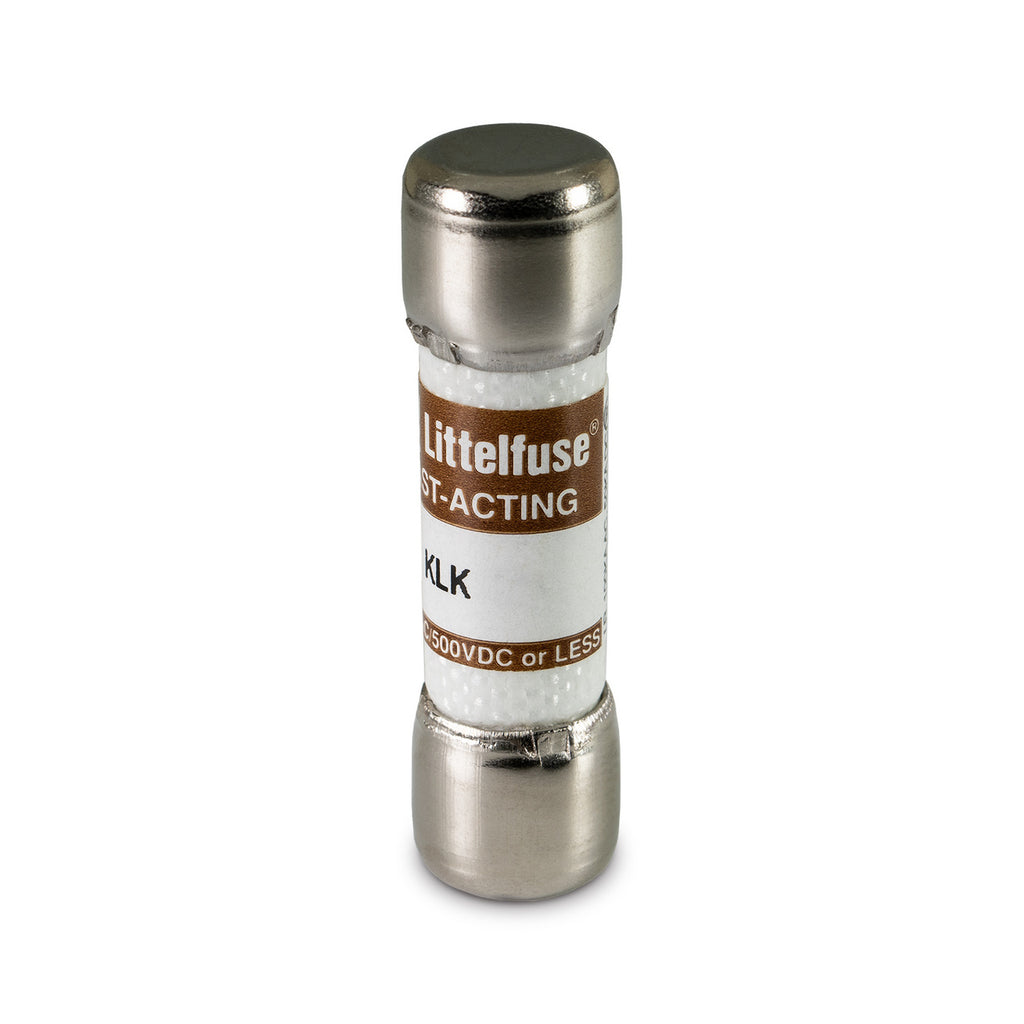

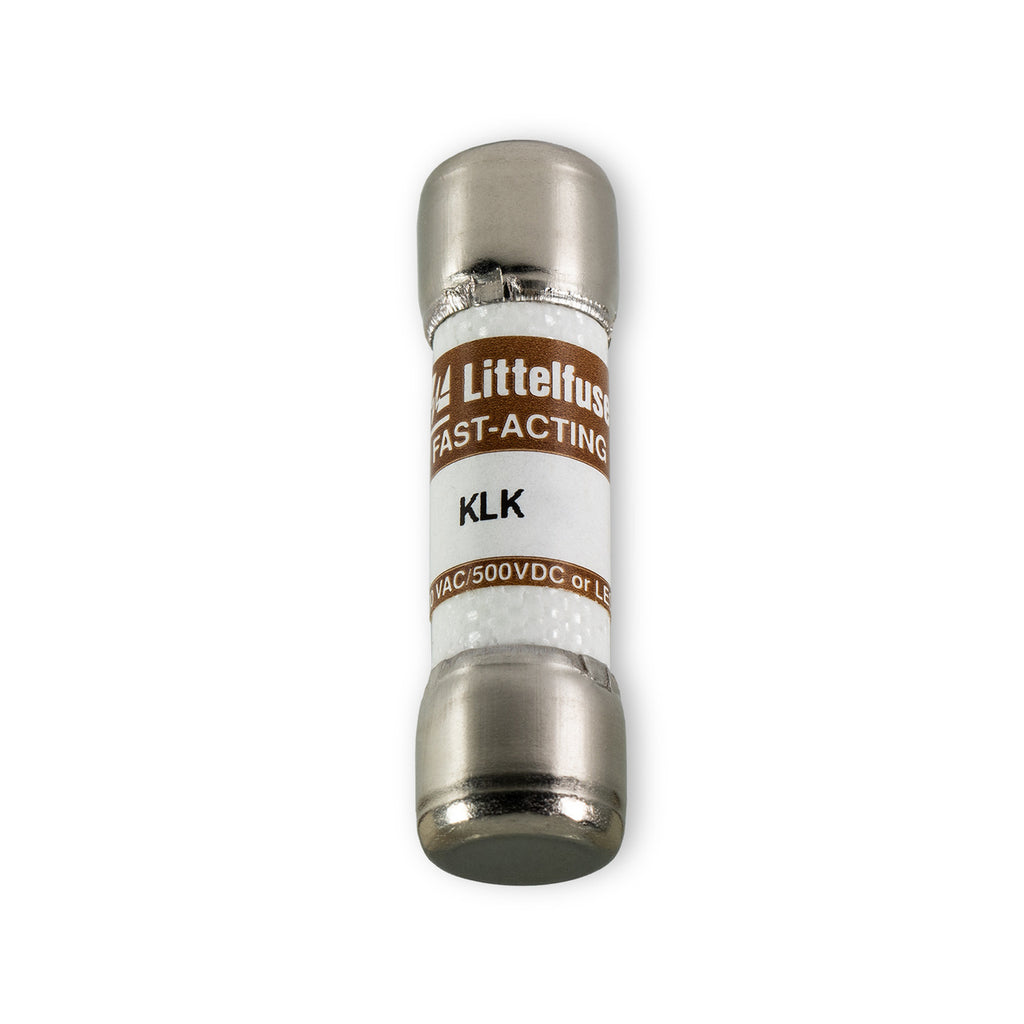

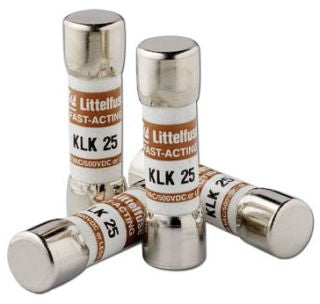

KLK002 is a Littelfuse KLK Series fast-acting midget fuse designed for low voltage circuit protection. This cartridge-style fuse provides reliable overcurrent protection in industrial and commercial applications where high fault currents may occur. The KLK002 features a 2A current rating and a maximum AC voltage rating of 600V, with a DC voltage rating of 500V. It is constructed as a 5AG (midget) size fuse with a 13/32 inch diameter and 1-1/2 inch length. The fuse is fast-acting, making it suitable for circuits requiring rapid response to overcurrent events. It is designed for use in fuse blocks, clips, or holders compatible with midget fuses.
- Part Number: KLK002
- Manufacturer: Littelfuse
- Series: KLK
- Current Rating: 2A
- Maximum AC Voltage: 600V
- DC Voltage Rating: 500V
- Fuse Size: 5AG (Midget)
- Diameter: 13/32 inch
- Length: 1-1/2 inch
- Interrupting Rating: 100,000A
- Mounting Type: Fuse Block / Clip / Holder
- Response Time: Fast-Acting
- Approvals: UL 248-14, CSA, CE
Specifications
- Part Number: KLK002
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLK Series - Fast-Acting Midget Fuses
- Type : KLK Series - Fast-Acting Midget Fuses
- Voltage : 600
- Amperage : 2
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : FA - Fast Action
Product Data
- UPC : 079458250411
- GTIN : 00079458250411
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 5
- Certification : UL Listed, CSA Certified, CE, QPL, RoHS
