Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

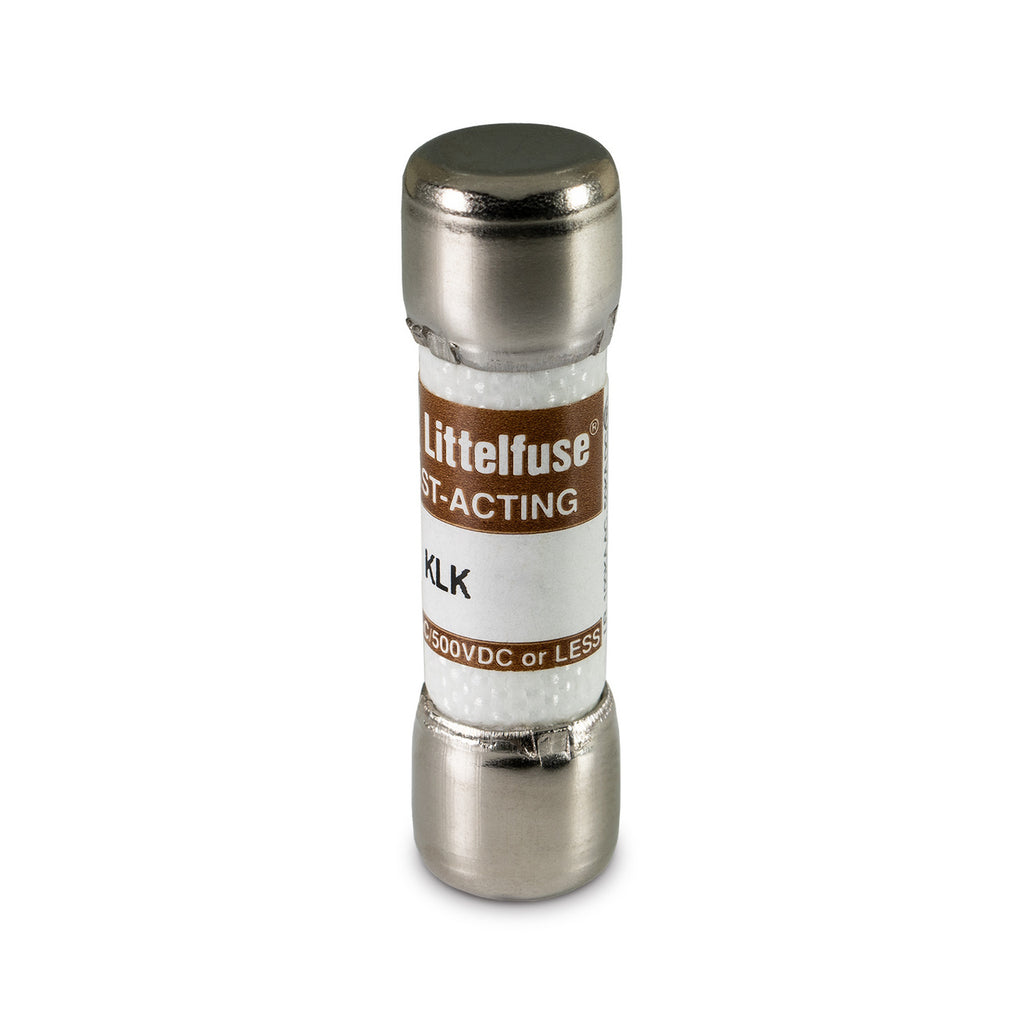

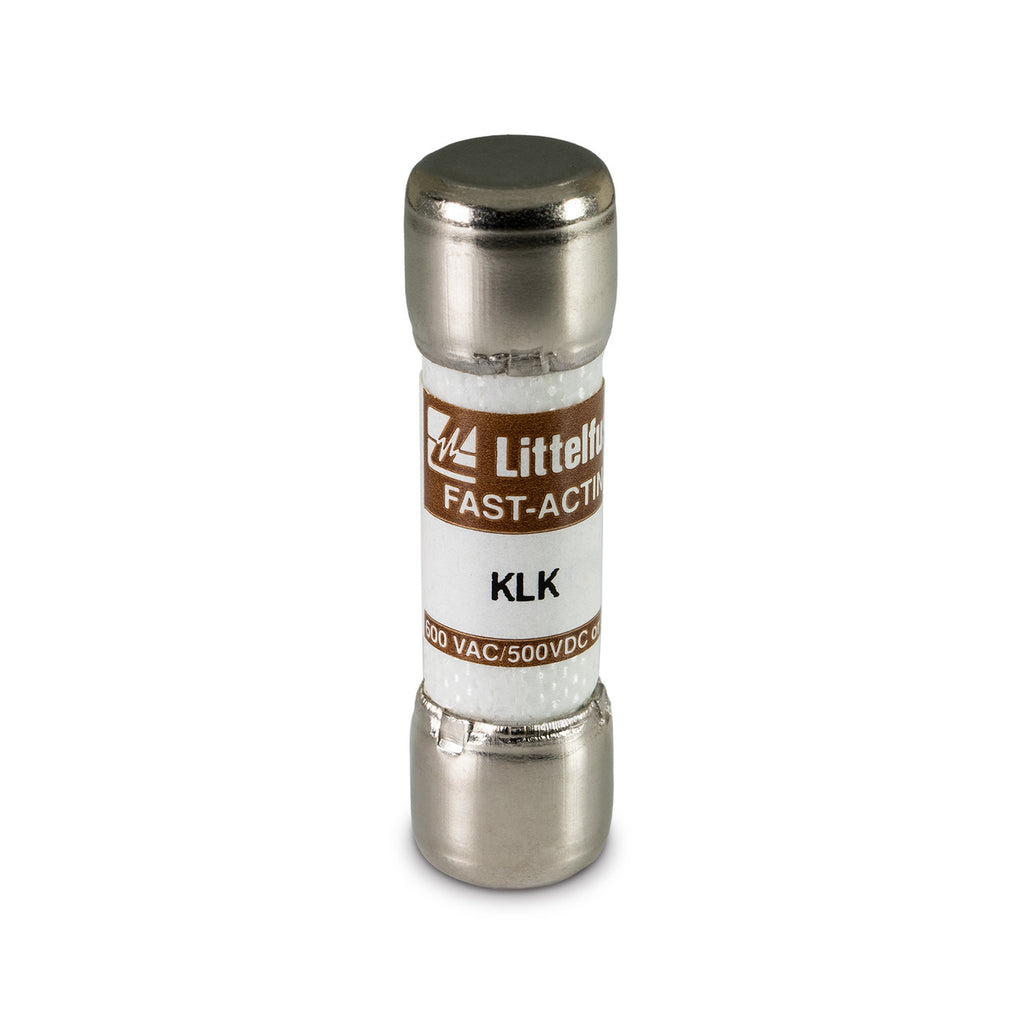

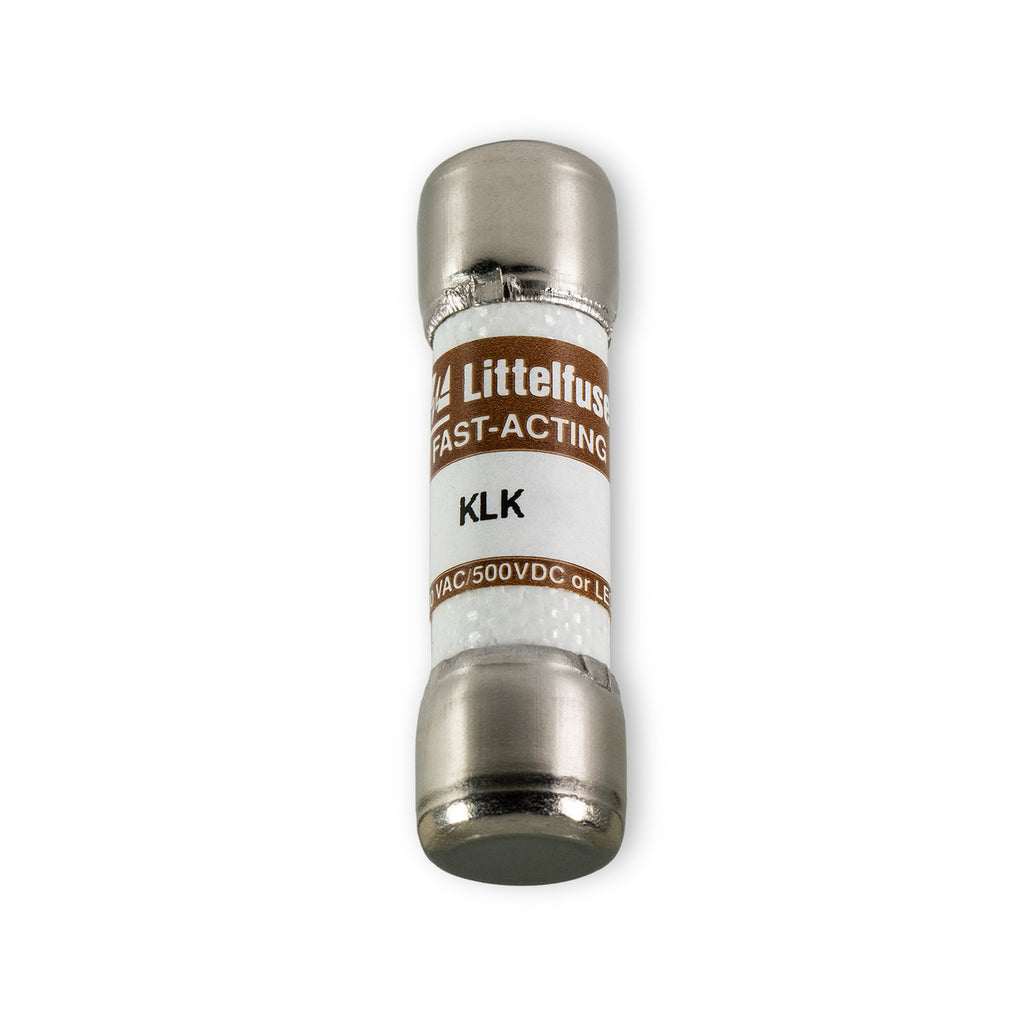

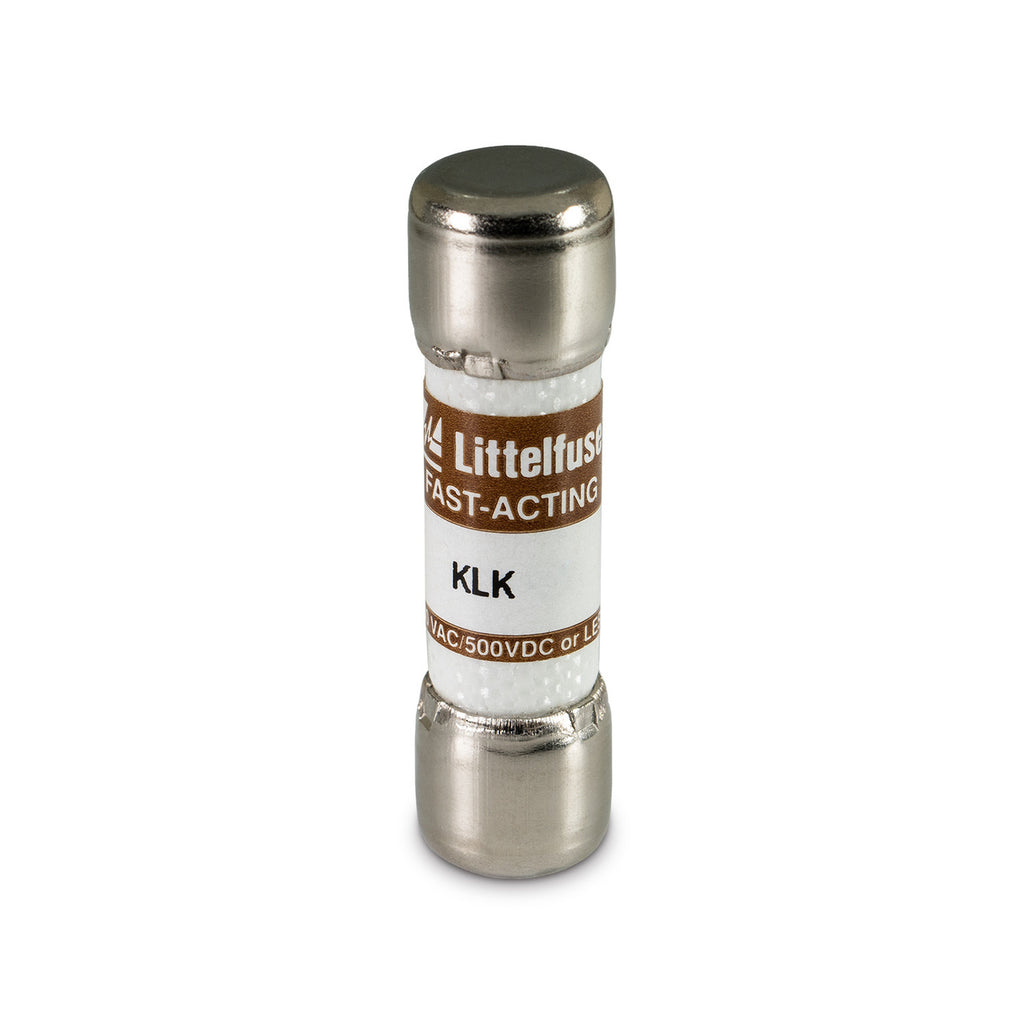

KLK.500
KLK.500 is a fast-acting midget fuse designed for supplemental overcurrent protection in control circuits, lighting, and other low in-rush applications. This fuse provides reliable short-circuit response and backup protection for critical systems. The KLK.500 features a 10x38mm (5AG) cartridge design, making it compatible with a wide range of fuse blocks and holders. It is non-indicating and can be used with an indicating fuse block for blown fuse identification. The fuse is current-limiting and offers high interrupting capacity for enhanced safety.
- 0.5A Amperage
- 600V AC / 500V DC Voltage Rating
- 10x38mm (5AG) Size
- Fast-Acting
- 100,000A Interrupt Rating (AC)
- Current-Limiting
- UL 248-14 Listed
- CSA Certified
- CE Marked
- POWR-GARD® Technology
- Non-Indicating
- Compatible with Indicating Fuse Blocks
Specifications
- Part Number: KLK.500
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KLK Series - Fast-Acting Midget Fuses
- Type : KLK Series - Fast-Acting Midget Fuses
- Voltage : 600
- Amperage : 0.5
- AIC rating : 100kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : FA - Fast Action
Product Data
- UPC : 079458250244
- GTIN : 00079458250244
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 6.77
- Certification : UL Listed, CSA Certified, CE, QPL, RoHS
