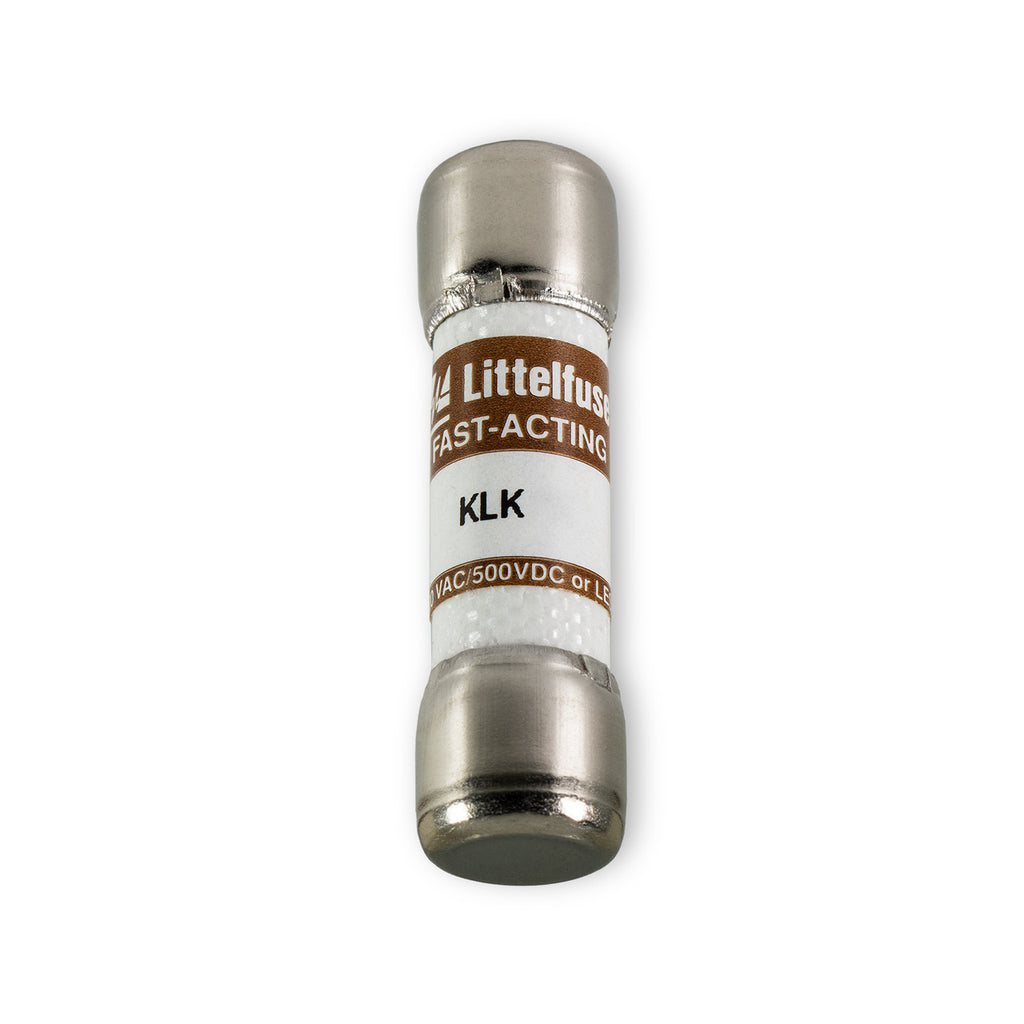

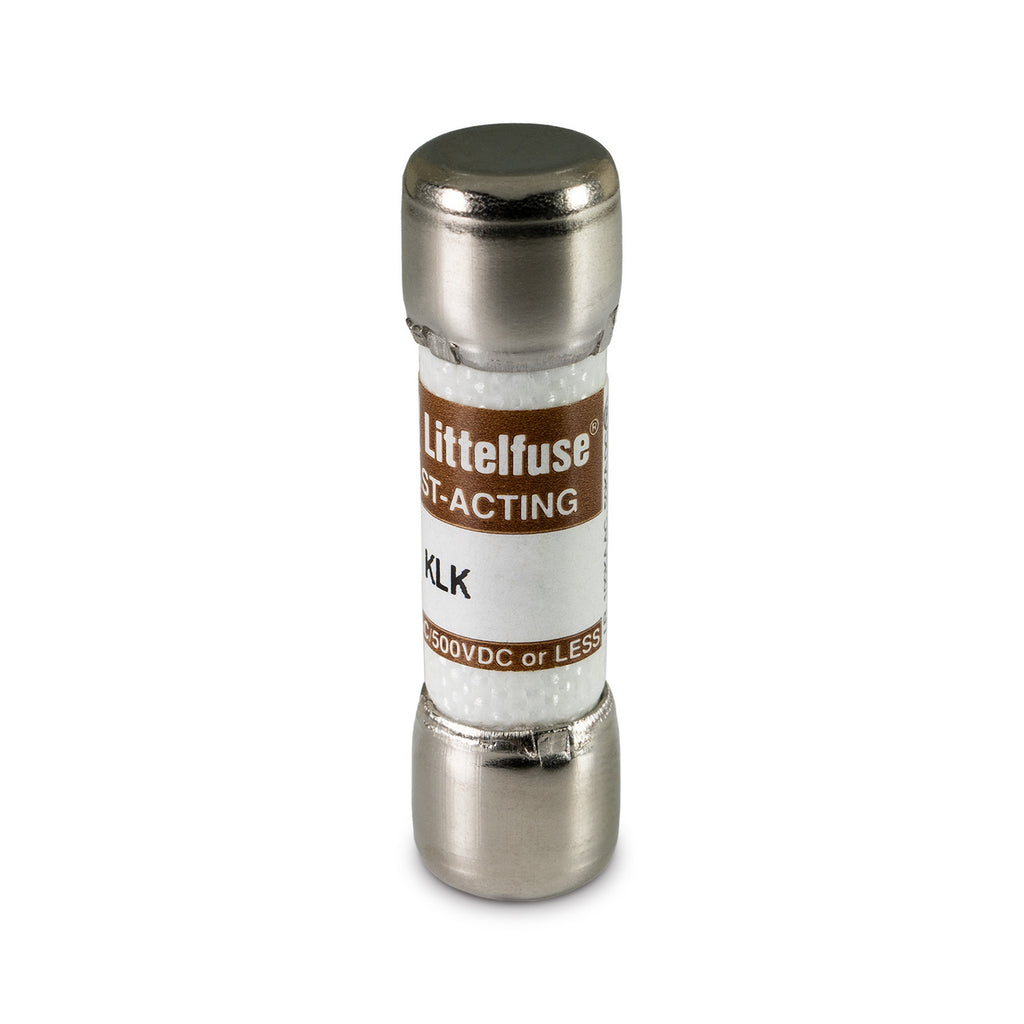

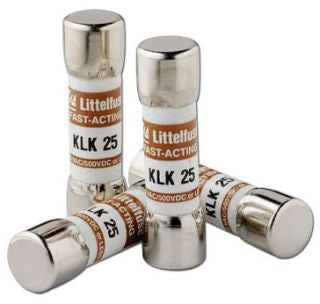

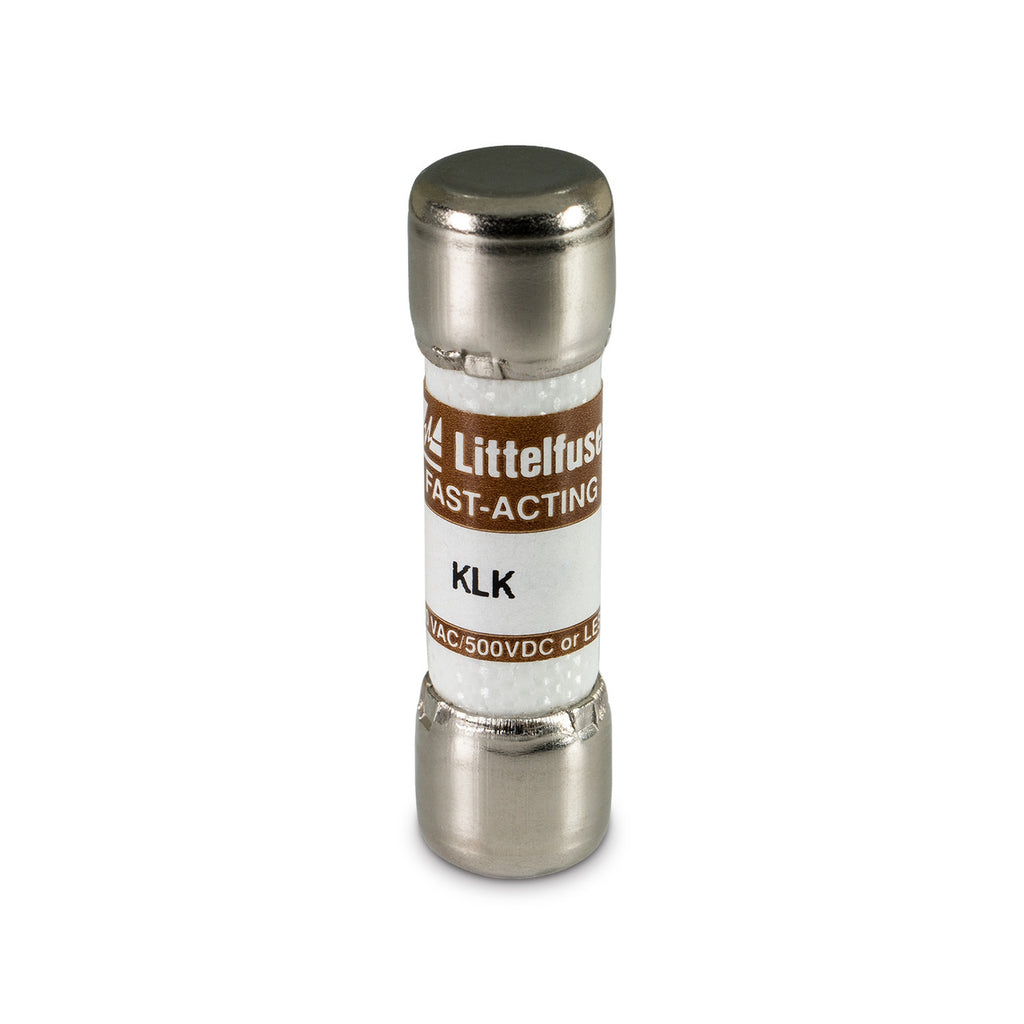

KLK-004 - Littelfuse 4A 600V AC 500V DC Fast Acting Midget Fuse

KLK004

KLK-004 is a Littelfuse fast acting midget fuse designed for circuit protection with a 4 ampere rating and voltage ratings of 600V AC and 500V DC.

This KLK series fuse features a fast acting characteristic with current limiting capability, suitable for protecting control circuit transformers and other sensitive equipment. It has a high interrupting rating of 100,000 amperes at 600 VAC and 50,000 amperes at 500 VDC, ensuring reliable interruption of fault currents. The fuse size is 13/32 inch diameter by 1-1/2 inch length, conforming to the 5AG midget fuse standard.

Key Specifications
• Amperage: 4 Amps
• Voltage Rating: 600V AC, 500V DC
• Fuse Type: Midget (5AG)
• Fuse Size: 13/32 in x 1-1/2 in (10x38mm)
• Interrupting Rating: 100,000 AIC at 600 VAC, 50,000 AIC at 500 VDC
• Fuse Speed: Fast Acting
• Current Limiting: Yes
• Series: KLK
• Certifications: UL 248-14, CSA, QPL, CE

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLK004
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLK Series - Fast-Acting Midget Fuses
• Type : KLK Series - Fast-Acting Midget Fuses
• Voltage : 600
• Amperage : 3
• AIC rating : 100kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1
• Velocity : FA - Fast Action

Product Data

• UPC : 079458250534
• GTIN : 00079458250534
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 6.7
• Certification : UL Listed, CSA Certified, CE, QPL, RoHS
