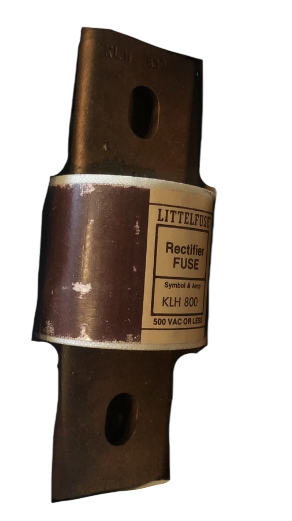

KLH800 - Littelfuse 800 Amp 500 VAC Class L Time Delay Fuse

KLH800

KLH800 is an 800 ampere, 500 volt AC Class L time delay fuse designed for industrial power distribution and motor circuit protection applications.

The KLH800 delivers current-limiting protection that reduces short circuit damage to electrical systems and equipment while minimizing downtime. As a Class L time delay fuse, it provides a ten second minimum time delay at 500 percent of rating, eliminating unnecessary nuisance trips caused by heavy inrush currents from large motors and other inductive loads. The bolt-in mounting design integrates seamlessly into service switches, switchboard mains, motor control centers, and large motor branch circuits. This fuse offers selective coordination with other Class L fuses and current-limiting Littelfuse fuses rated 600 amps or less, enabling faster fault isolation and reduced troubleshooting time.

• Current Rating: 800 Amps continuous
• Voltage Rating: 500 VAC
• Fuse Class: Class L
• Type: Time Delay (Slow Blow)
• Mounting Method: Bolt-In
• Family Style: Current Limiting
• UL Listed per UL 248-10
• CSA Approved
• CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLH800
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage
• Type : KLH
• Voltage : 500
• Amperage : 800
• AIC rating : 200kA@500V
• Connection : Blade

Product Data

• Weight : 3
