Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
KLDR1-1/2

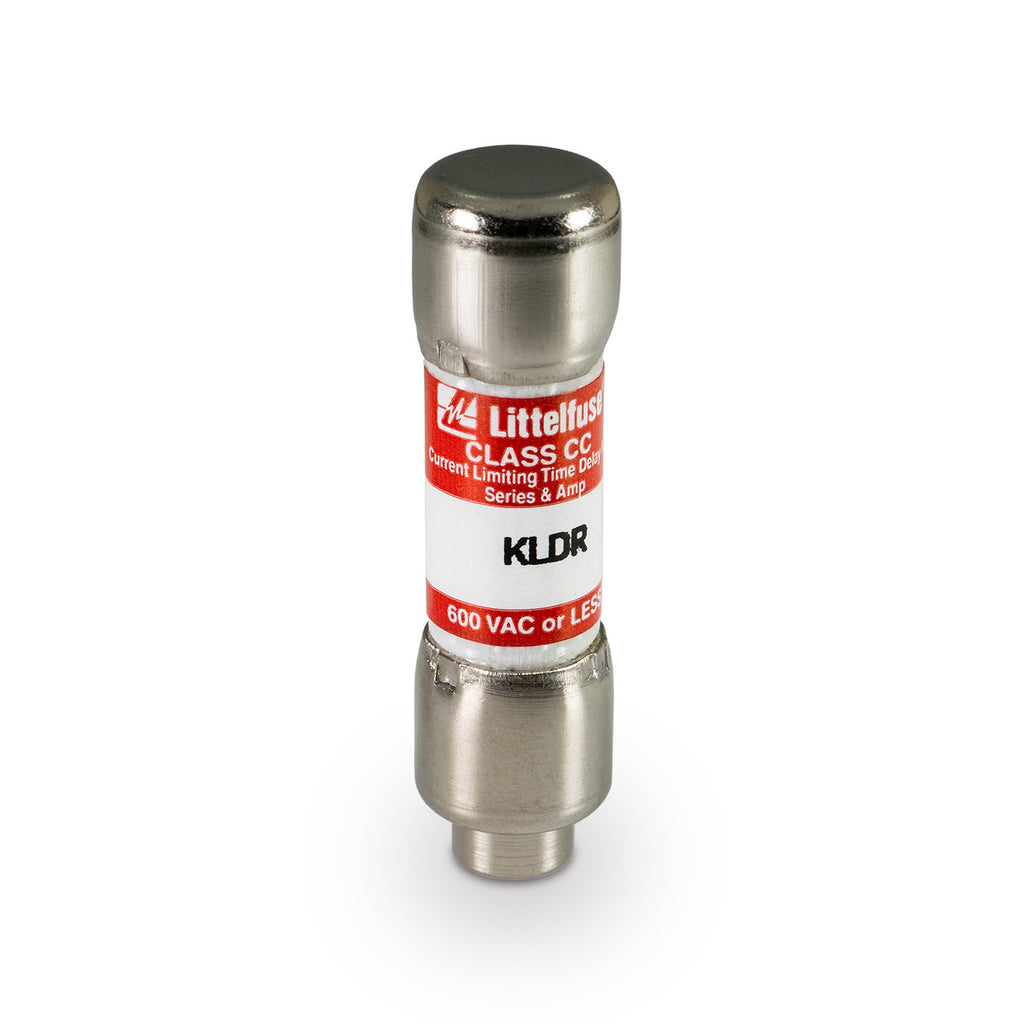

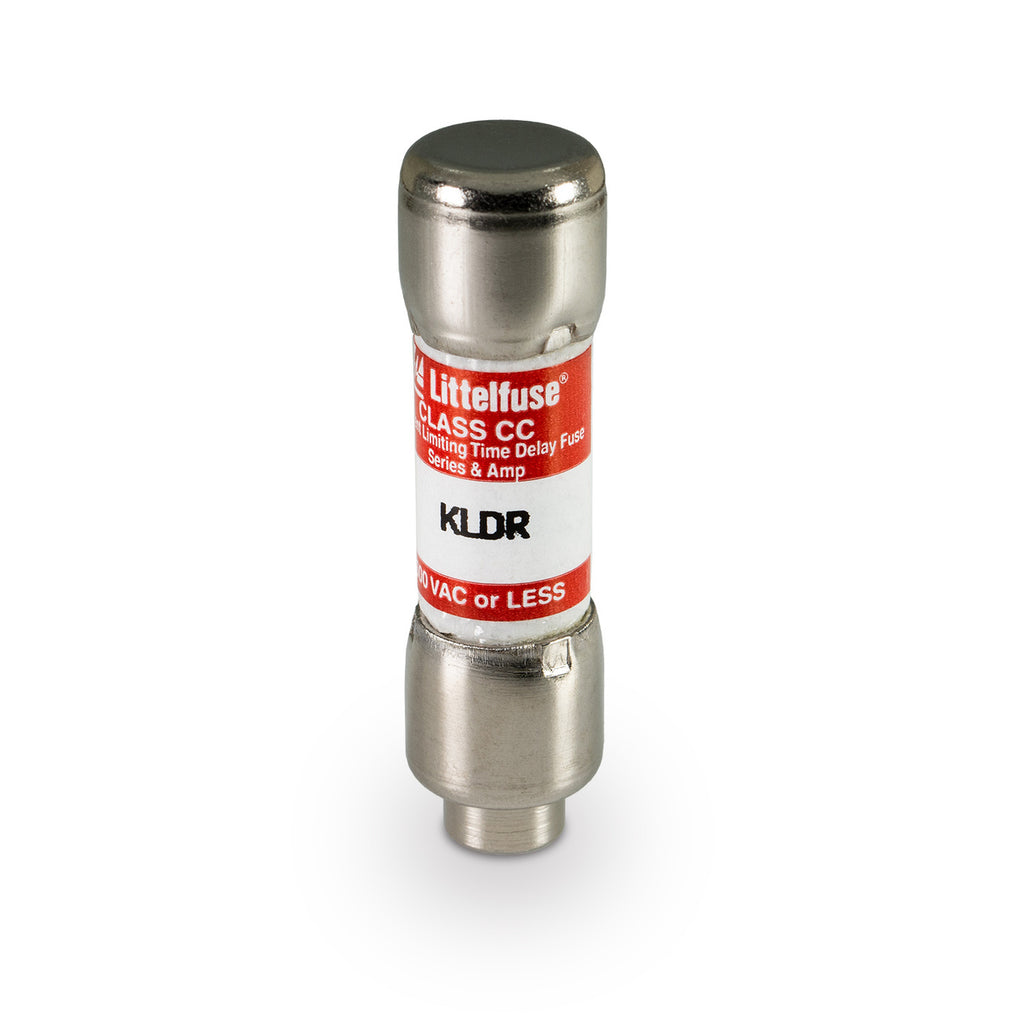

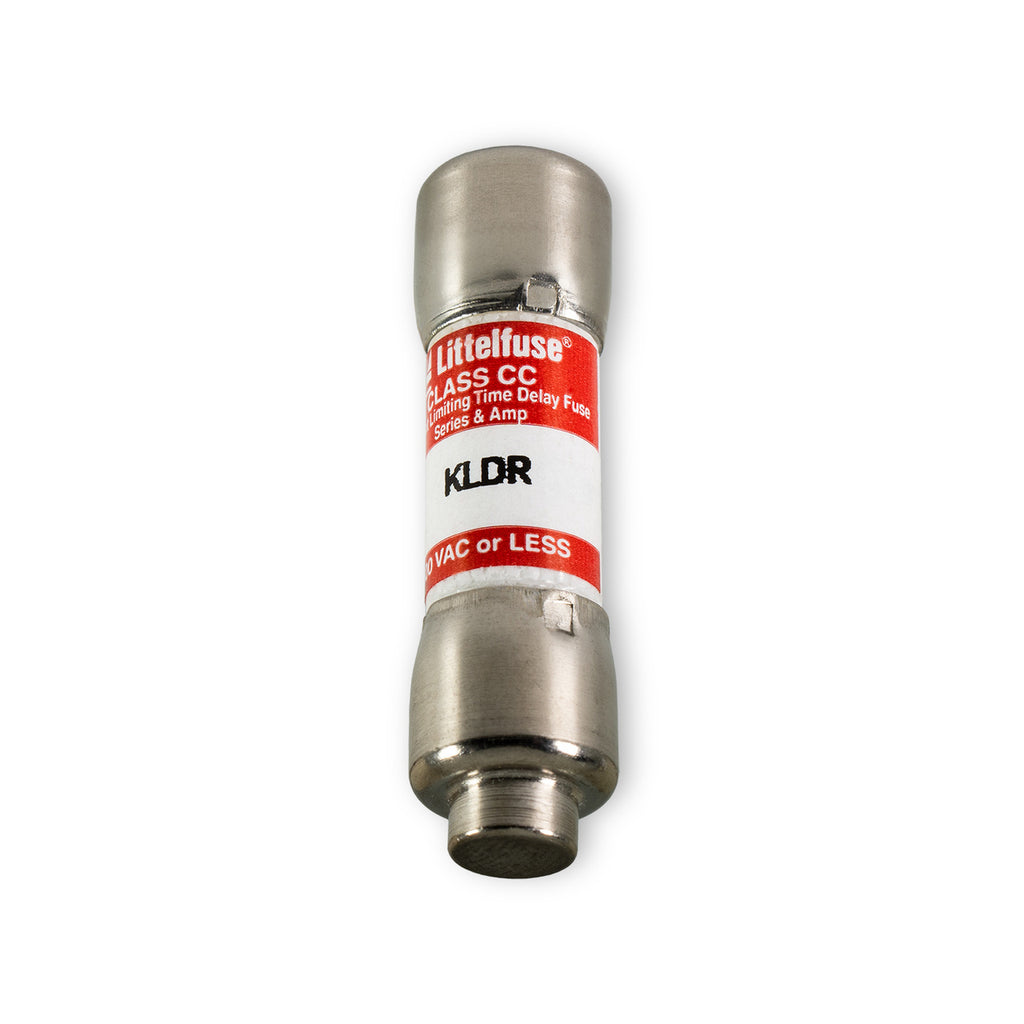

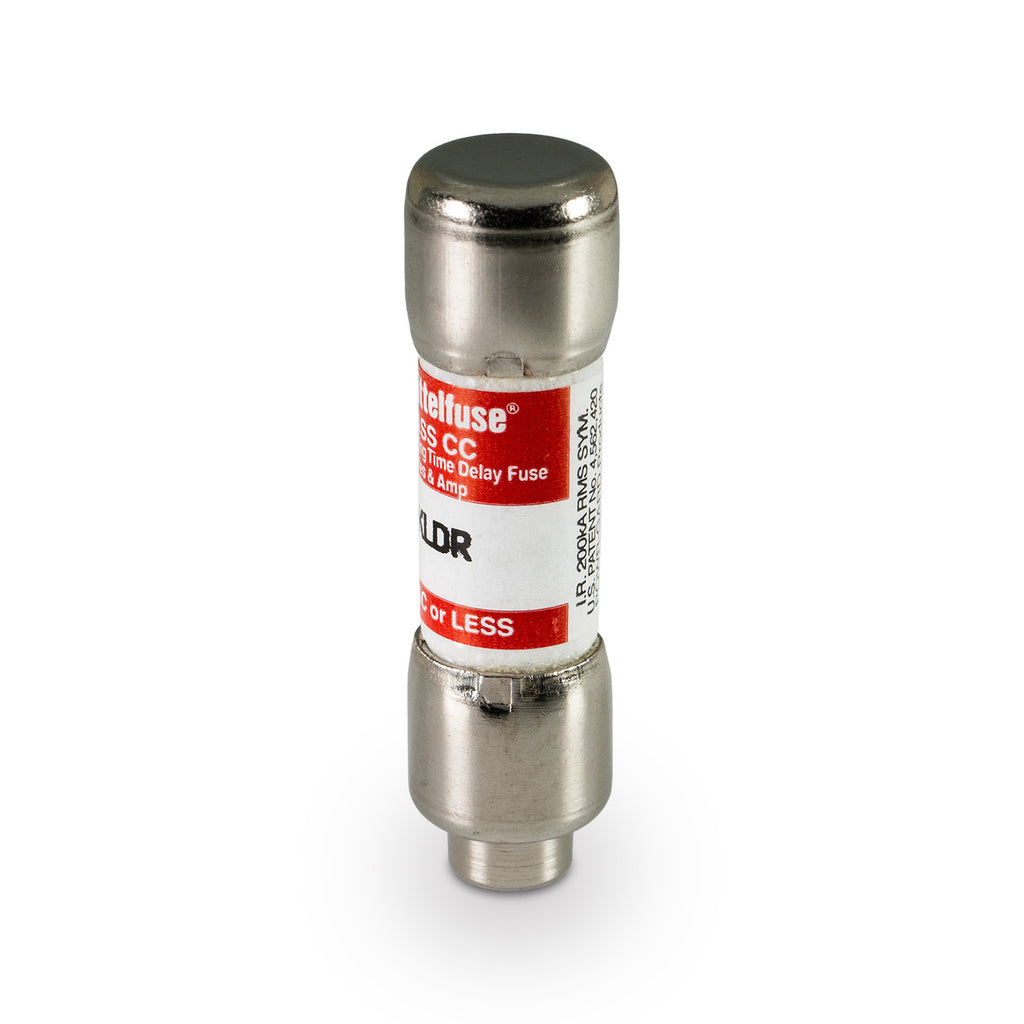

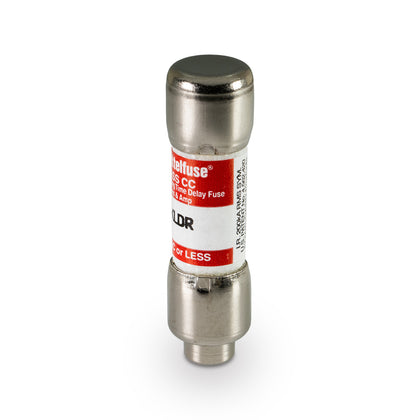

KLDR1-1/2 is a Littelfuse Class CC time delay fuse rated for 1.5 amps and 600 volts AC, designed for control transformer and solenoid protection.KLDR1-1/2 fuse provides current limiting and time-delay characteristics, allowing temporary current surges without blowing, ideal for motor branch circuits and inductive loads. It features a high interrupting rating and rejection capability to prevent improper fuse installation.
- Amperage: 1.5 Amps
- Voltage Rating: 600 V AC
- Fuse Size: Class CC
- Time-Delay Type
- Interrupting Rating: 200,000 A rms symmetrical AC
- Current Limiting
- Rejection Capability to prevent use of lower rated fuses
- Applications: Control transformers, solenoids, motor branch circuits
- UL 248-4, Class CC Certified
- Body Material: Melamine
- Caps: Nickel-plated Bronze
- RoHS Compliant
Specifications
- Part Number: KLDR1-1/2
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
Product Data
- Weight : 5.19
