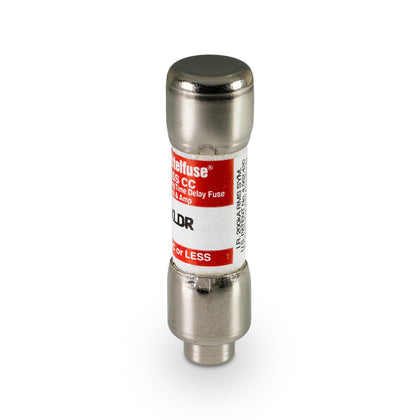

KLDR03.2 - Littelfuse 3.2A 600VAC/300VDC Class CC Time-Delay Fuse

KLDR03.2

KLDR03.2 is a Class CC time-delay fuse designed for reliable protection in electrical circuits. This Littelfuse product offers high interrupting capacity and is suitable for transformer and solenoid protection applications. The KLDR03.2 fuse features a rejection design to prevent installation of fuses with lower ratings, ensuring proper circuit protection. It is extremely current limiting and provides time-delay characteristics to handle temporary current surges without nuisance tripping. The fuse is constructed with a melamine body and nickel-plated bronze caps for durability and performance.

• Amperage Rating: 3.2 A
• AC Voltage Rating: 600 V
• DC Voltage Rating: 300 V
• Fuse Class: Class CC
• Interrupting Rating: 200,000 A at 600 VAC
• DC Interrupting Rating: 20,000 A at 300 VDC
• Time-Delay: Yes
• Current Limiting: Yes
• Rejection Type: Yes
• Agency Approvals: UL 248-4, CSA
• RoHS Compliant: Yes
• Physical Size: 0.41" x 1.5"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLDR03.2
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : KLDR Series – Class CC Time-Delay Fuses
• Type : KLDR Series – Class CC Time-Delay Fuses
• Voltage : 600
• Amperage : 3.2
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458792591
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 7
• Certification : CE, UL 248-4, UL Listed, CSA Certified, RoHS
