Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

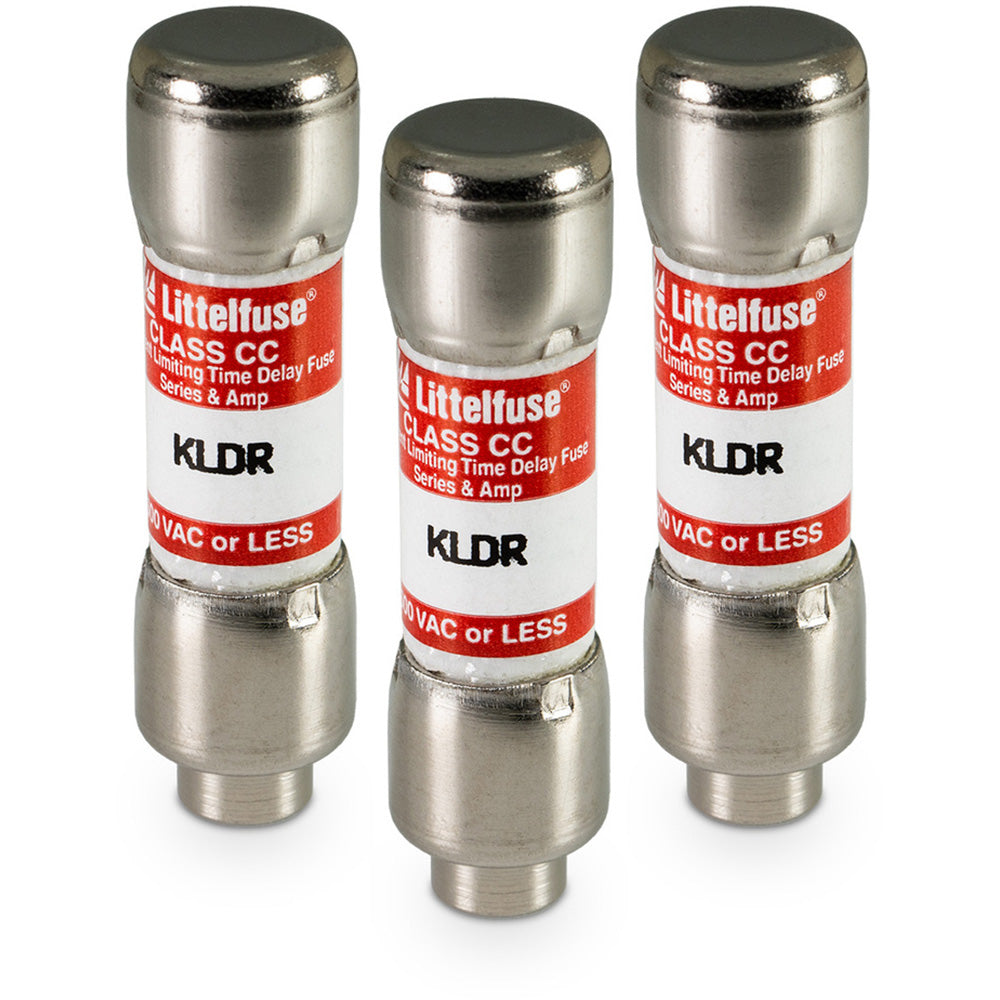

KLDR025.TXP
KLDR025.TXP is a 25 amp, 600 VAC / 300 VDC Class CC time delay cartridge fuse designed for control transformer and solenoid protection.
This Littelfuse KLDR series fuse features a time-delay (slow blow) characteristic to allow temporary current surges without blowing, making it ideal for inductive loads with high magnetizing currents. It has a high interrupting rating of 200,000 amps AC RMS symmetrical and 20,000 amps DC, ensuring reliable protection in industrial control applications. The fuse body is melamine with nickel-plated bronze end caps and is UL 248-4 listed. Its compact size helps reduce panel space compared to other fuse classes.
- Key Specifications
- Amperage: 25 A
- Voltage Rating AC: 600 VAC
- Voltage Rating DC: 300 VDC
- Interrupt Rating AC: 200,000 A RMS symmetrical
- Interrupt Rating DC: 20,000 A
- Speed: Time Delay (Slow Blow)
- Class: CC
- Mounting Type: Cartridge
- Body Material: Melamine
- End Caps: Nickel-plated Bronze
- Standards: UL 248-4, California Proposition 65 compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLDR025.TXP
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 07945879276
- GTIN : 00079458792768
- Weight : 7.7
