Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLDR008.TXP

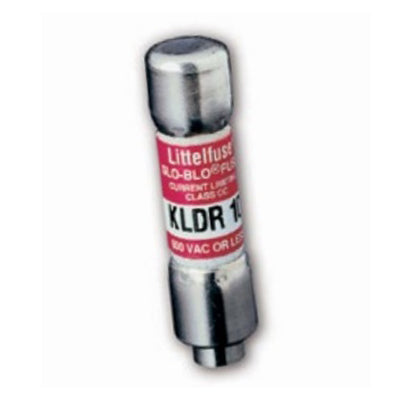

KLDR008.TXP is a Littelfuse Class CC time delay cartridge fuse designed for transformer and solenoid protection applications.
This 8 amp fuse features a current limiting design with a 600 VAC and 300 VDC voltage rating. It has a 20,000 A DC and 200,000 A AC interrupting rating, providing high fault current protection. The fuse body is melamine with nickel-plated bronze caps and ferrule terminals, designed for holder mounting. It includes a rejection feature to prevent use of fuses with lower interrupting or voltage ratings when used with compatible holders. The fuse offers a time-delay (slo-blo) response to allow temporary current surges without blowing.
- Amperage: 8 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Class: CC (Midget)
- Body Type: Cartridge, Melamine
- Terminal Type: Ferrule
- Time Delay (Slo-Blo) Opening
- Current Limiting
- Rejection Feature for Safety
- Mounting: Fuse Holder
- Caps: Nickel-Plated Bronze
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLDR008.TXP
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 8
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 07945879269
- GTIN : 00079458792690
- Weight : 9.07
