Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLDR007.TXP

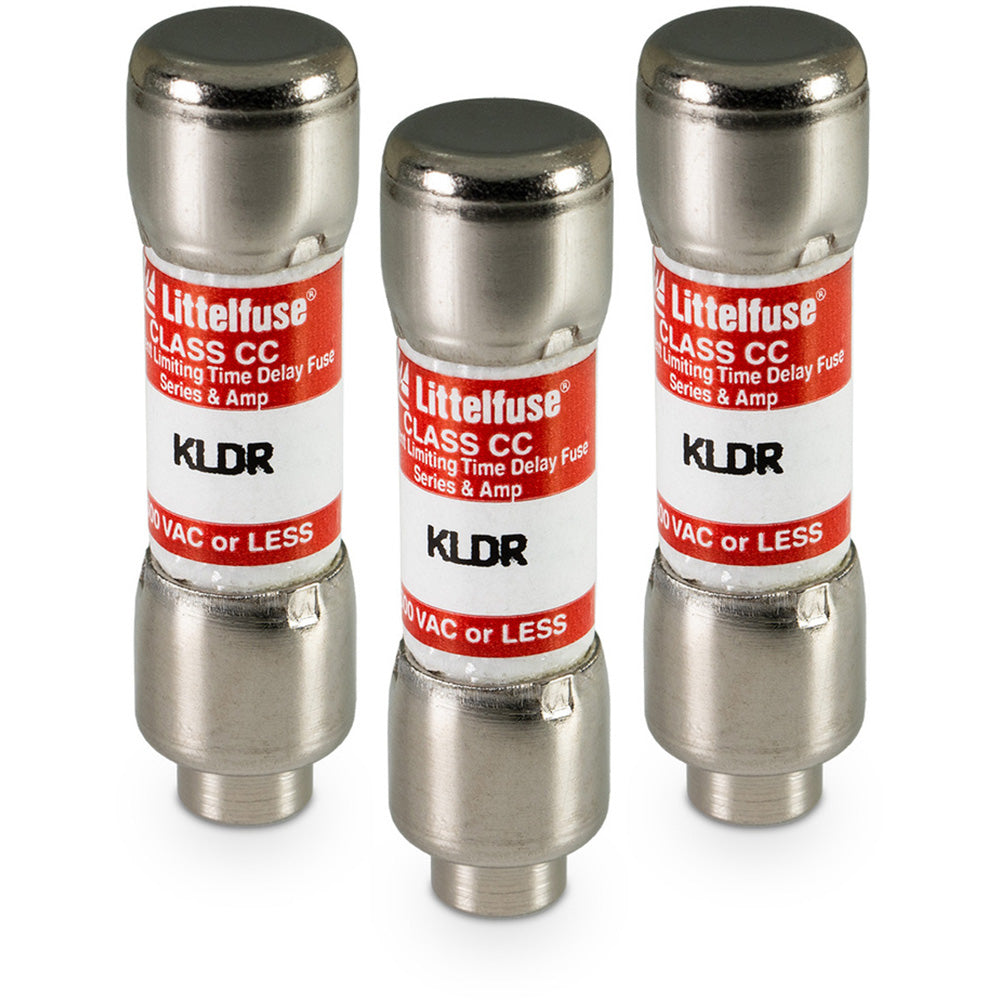

KLDR007.TXP is a Littelfuse POWR-GARD Class CC time-delay cartridge fuse rated for 7 amperes at 600 VAC and 300 VDC, designed for transformer and solenoid protection applications. This current-limiting fuse features a 200 kA interrupting rating at 600 VAC and 20 kA at 300 VDC, providing reliable overcurrent protection with time-delay characteristics that allow temporary current surges without nuisance blowing. The fuse body is constructed from melamine with nickel-plated bronze caps and meets UL 248-4 Class CC standards.
- Amperage Rating: 7 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
- Fuse Type: Time-Delay (Slo-Blo)
- Class: CC
- Body Style: Cartridge
- Dimensions: 13/32 in Dia x 1-1/2 in L
- Body Material: Melamine with Nickel-plated Bronze Caps
- Certification: UL 248-4 Class CC
- RoHS Compliant: Yes
- Country of Origin: Mexico
Specifications
- Part Number: KLDR007.TXP
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : KLDR
- Voltage : 600
- Amperage : 7
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 079458792676
- GTIN : 00079458792676
- Weight : 25
