Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLDR-.800

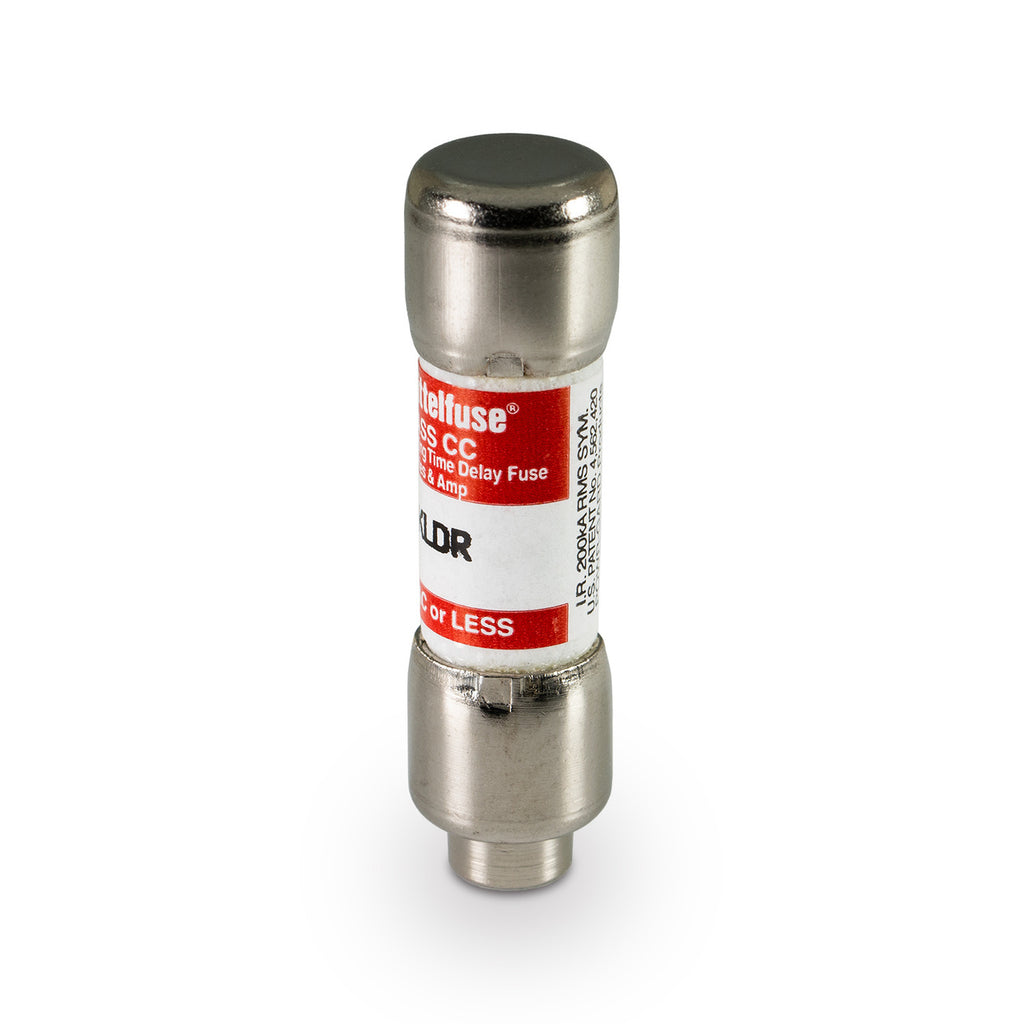

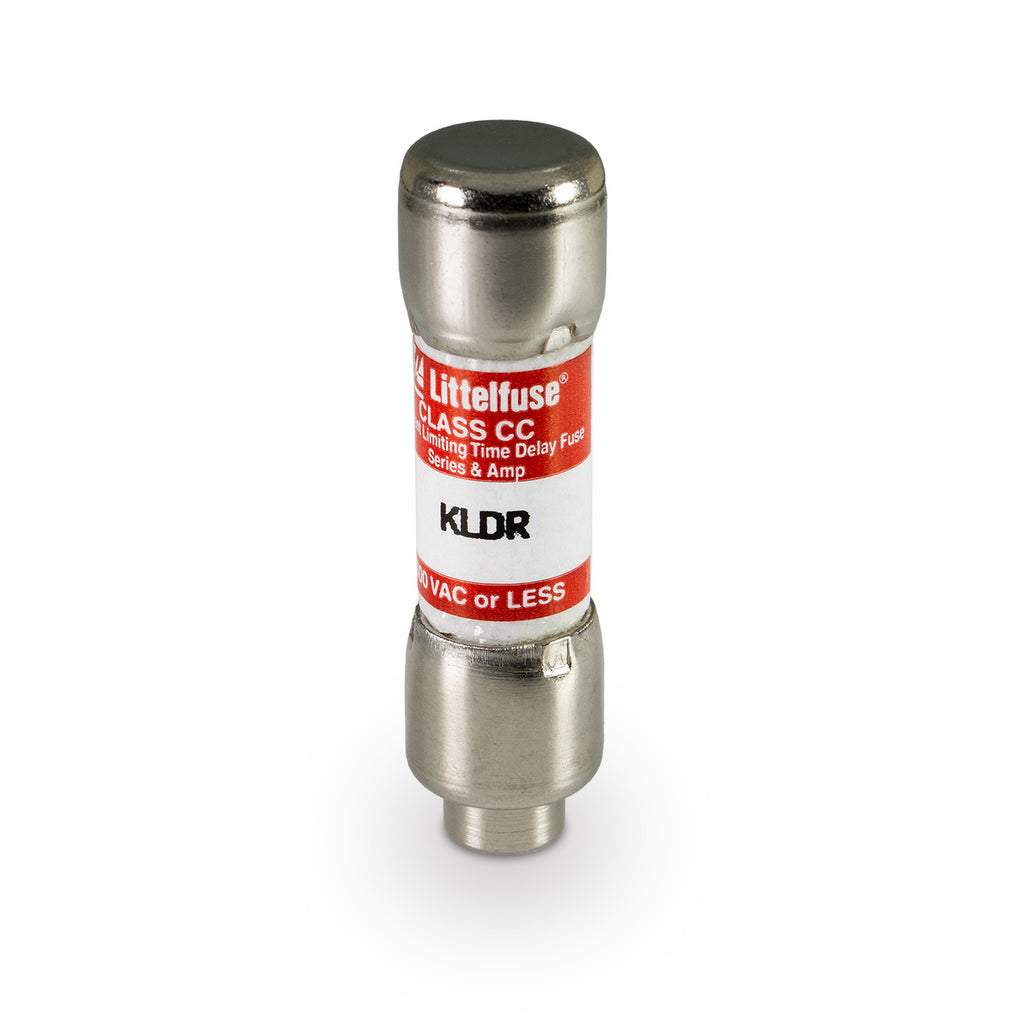

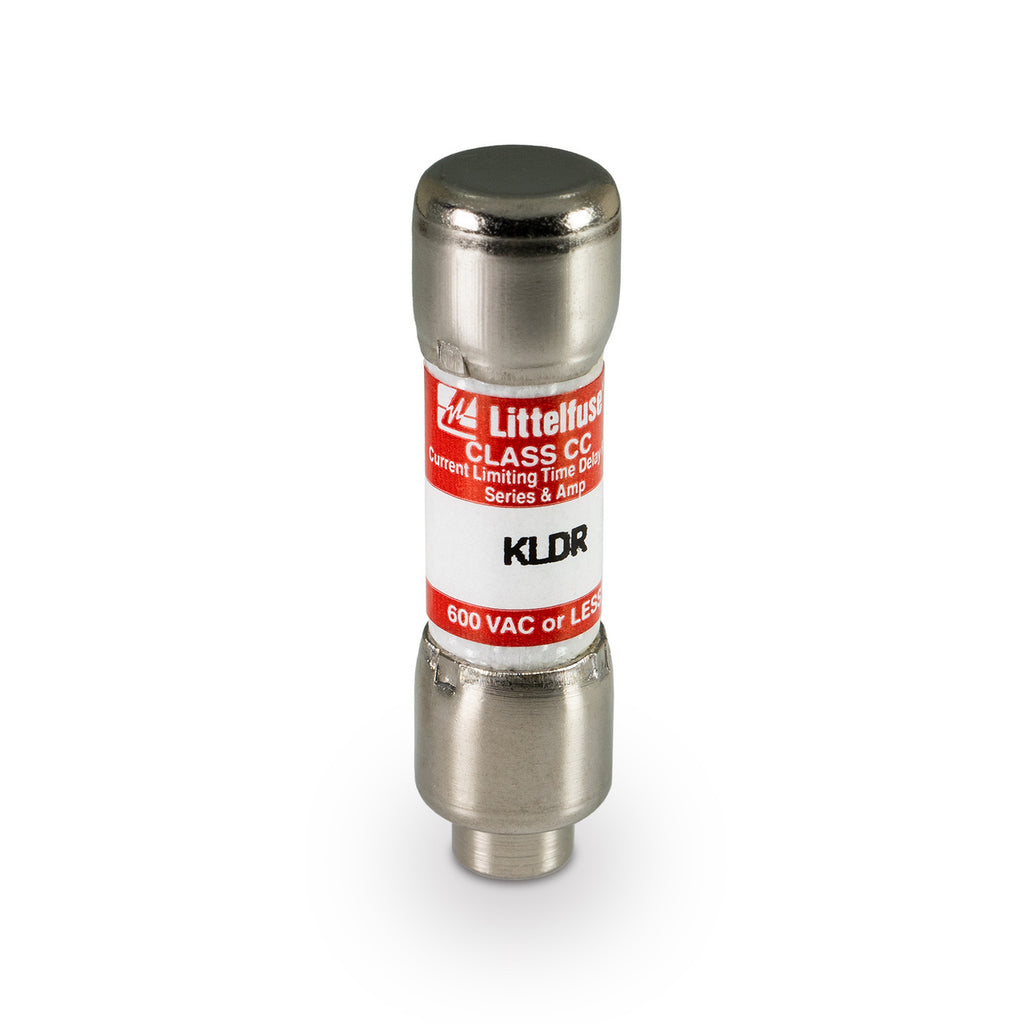

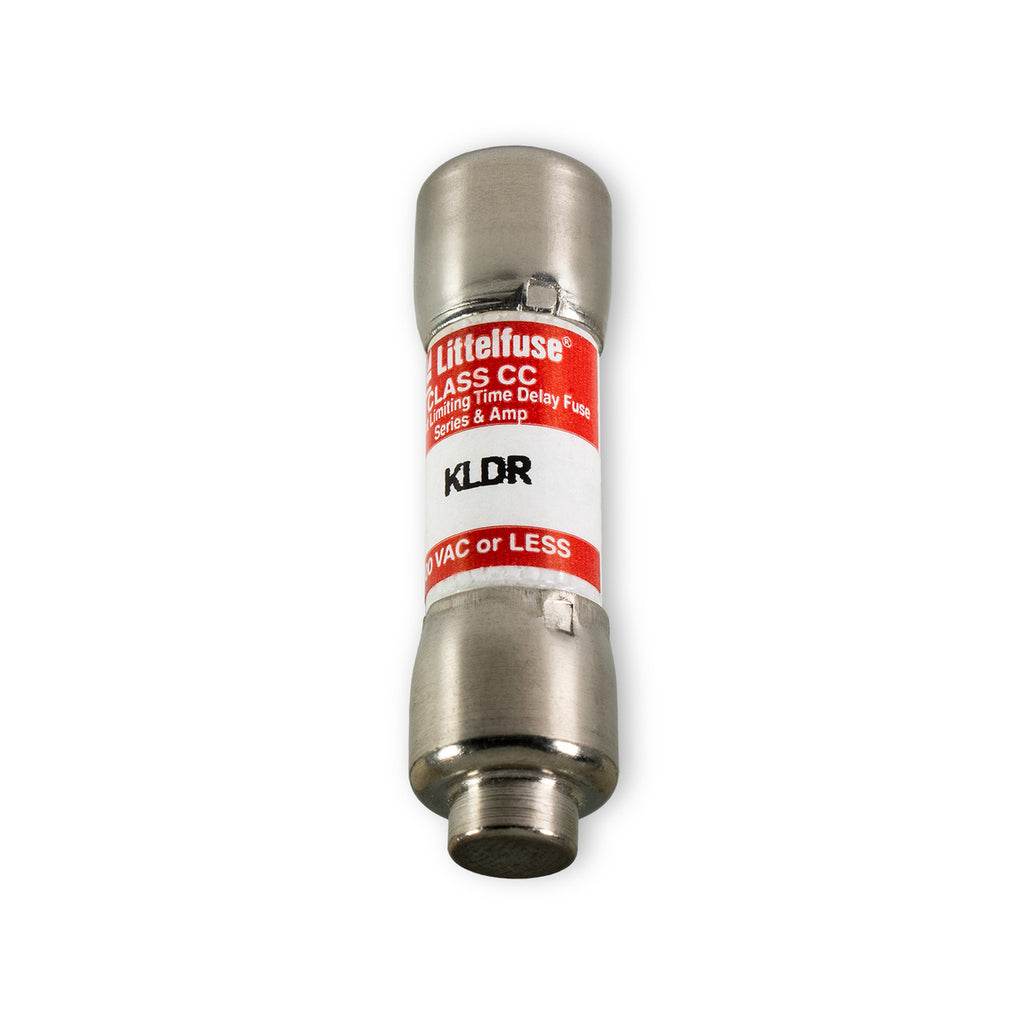

KLDR-.800 is a Littelfuse Class CC time-delay fuse rated for 0.8 amps and 600 volts AC, designed for superior transformer and control circuit protection.This KLDR Series fuse provides excellent protection for control transformers, solenoids, and motor branch circuits by allowing temporary current surges without blowing. It features a 200kA interrupting rating at 600VAC, rejection capability to prevent incorrect fuse use, and meets UL 508 and UL 845 standards for industrial and motor control applications.
- Amperage: 0.8 Amps
- Voltage Rating: 600 VAC, 300 VDC
- Interrupt Rating: 200kA at 600 VAC
- Fuse Class: Class CC
- Time-Delay Type
- Size: 13/32 in x 1 1/2 in
- Designed for transformer and control circuit protection
- Rejection feature for safety
- Meets UL 508 and UL 845 standards
- Extremely current limiting
- Non-indicating fuse
Specifications
- Part Number: KLDR-.800
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 079458792461
- Weight : 5.19
