Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
KLDR.600TXP

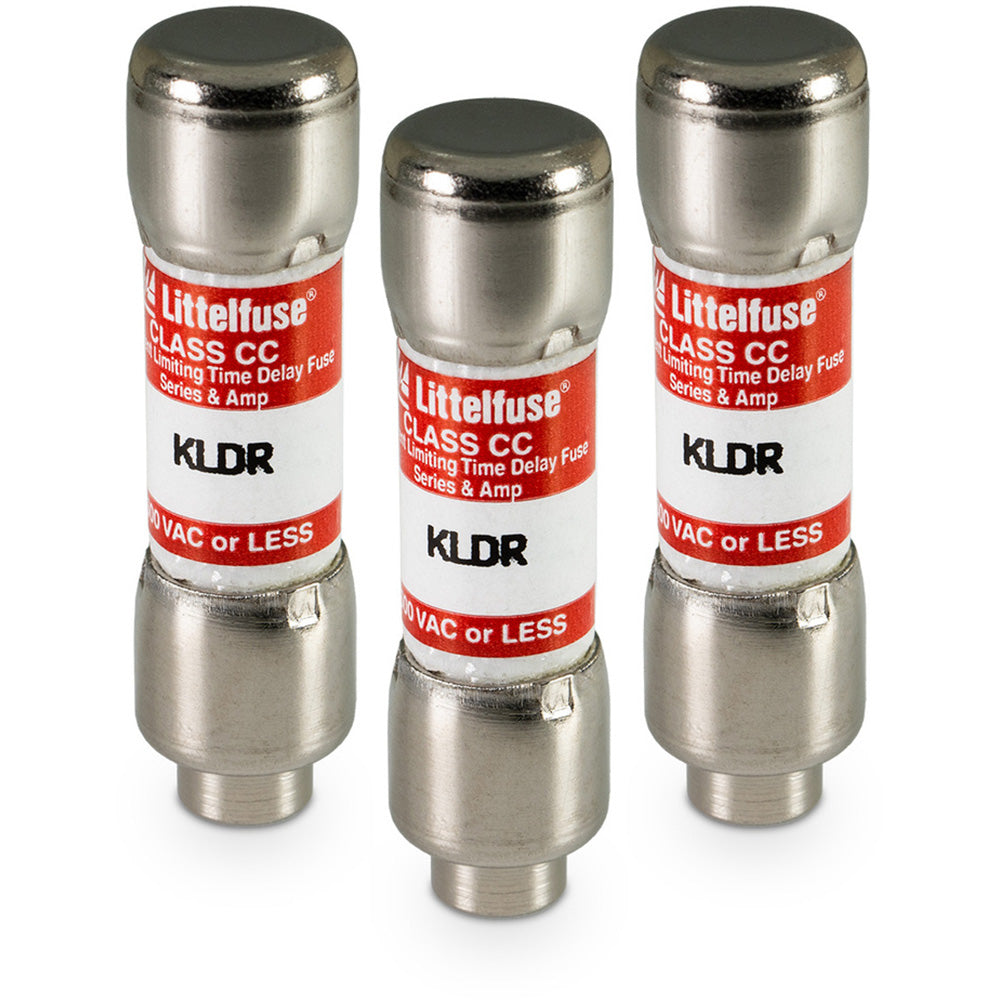

KLDR.600TXP is a Littelfuse 0.6 ampere, 600 volt AC / 300 volt DC time delay Class CC fuse designed for reliable overcurrent protection.
This fuse features a time-delay (Slo-Blo) characteristic allowing temporary current surges without blowing, making it ideal for transformer and solenoid protection. It has a high interrupting rating of 200,000 amperes at 600 VAC and 20,000 amperes at 300 VDC. The fuse body is made of melamine with nickel-plated bronze end caps and is UL 248-4 Class CC certified. It mounts in fuse blocks, clips, or holders compatible with Class CC fuses.
- Amperage Rating: 0.6 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class CC (Midget)
- Time Delay (Slo-Blo) Opening Characteristic
- Interrupting Rating: 200,000 A AC / 20,000 A DC
- Mounting Method: Fuse Block / Clip / Holder
- Body Material: Melamine
- End Caps: Nickel-plated Bronze
- Length: 1.5 inches
- Diameter: 0.41 inches
- UL 248-4 Certified
- RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLDR.600TXP
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : CC
- Barrels : 1
Product Data
- UPC : 07945879244
- GTIN : 00079458792447
- Weight : 25
