Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description

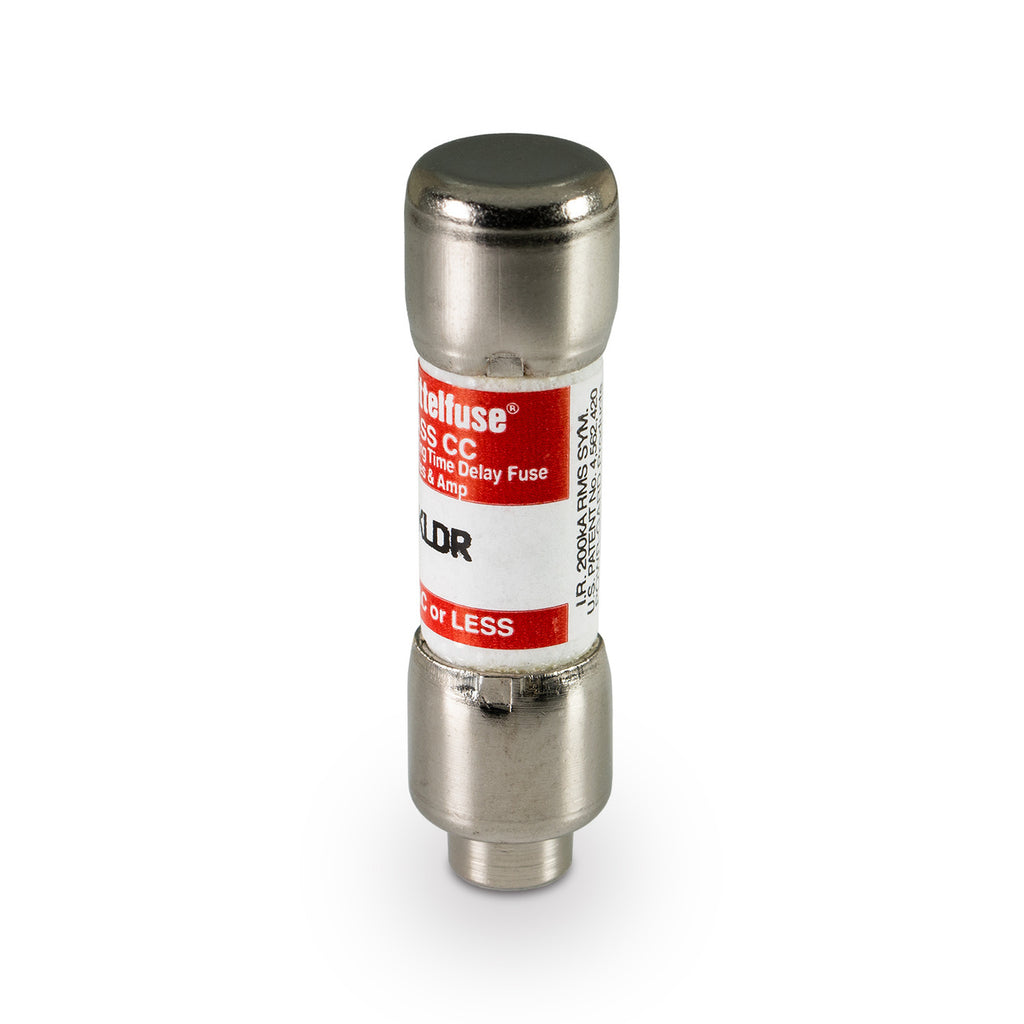

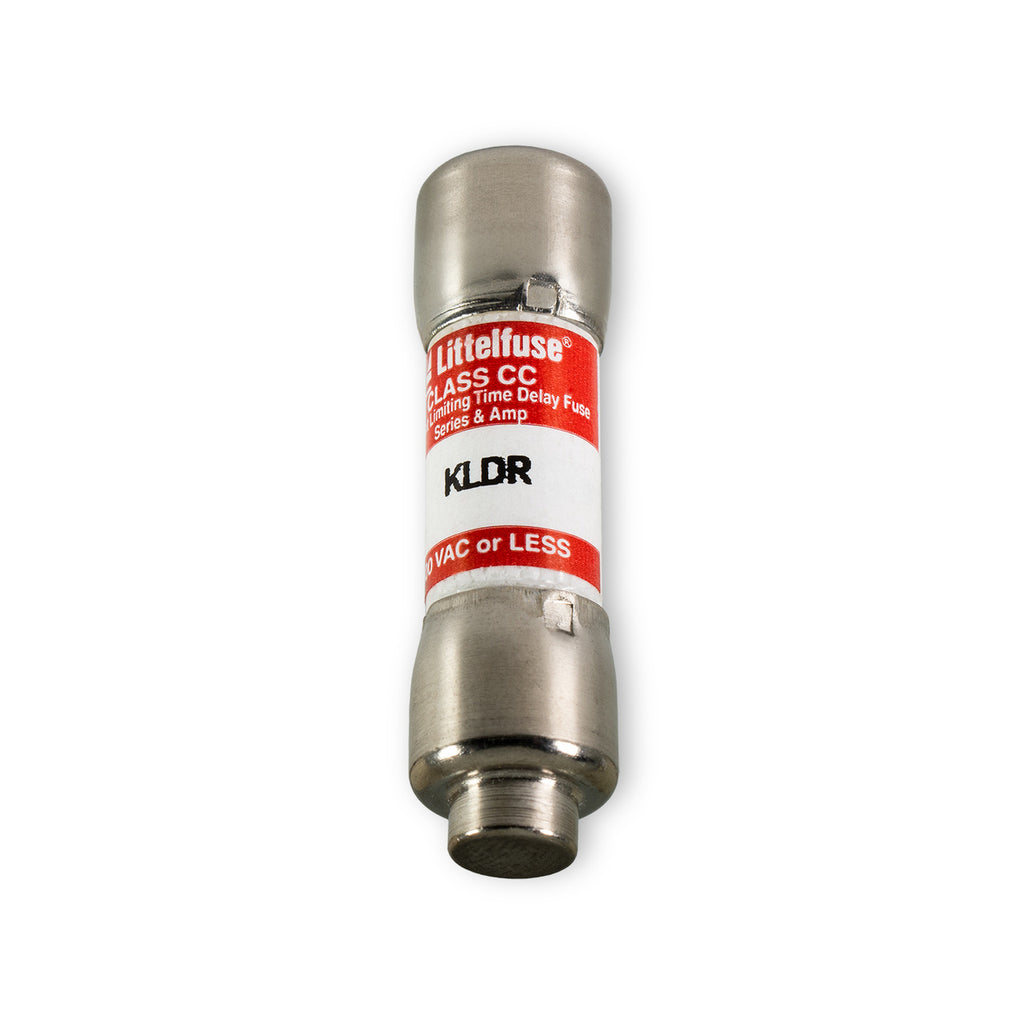

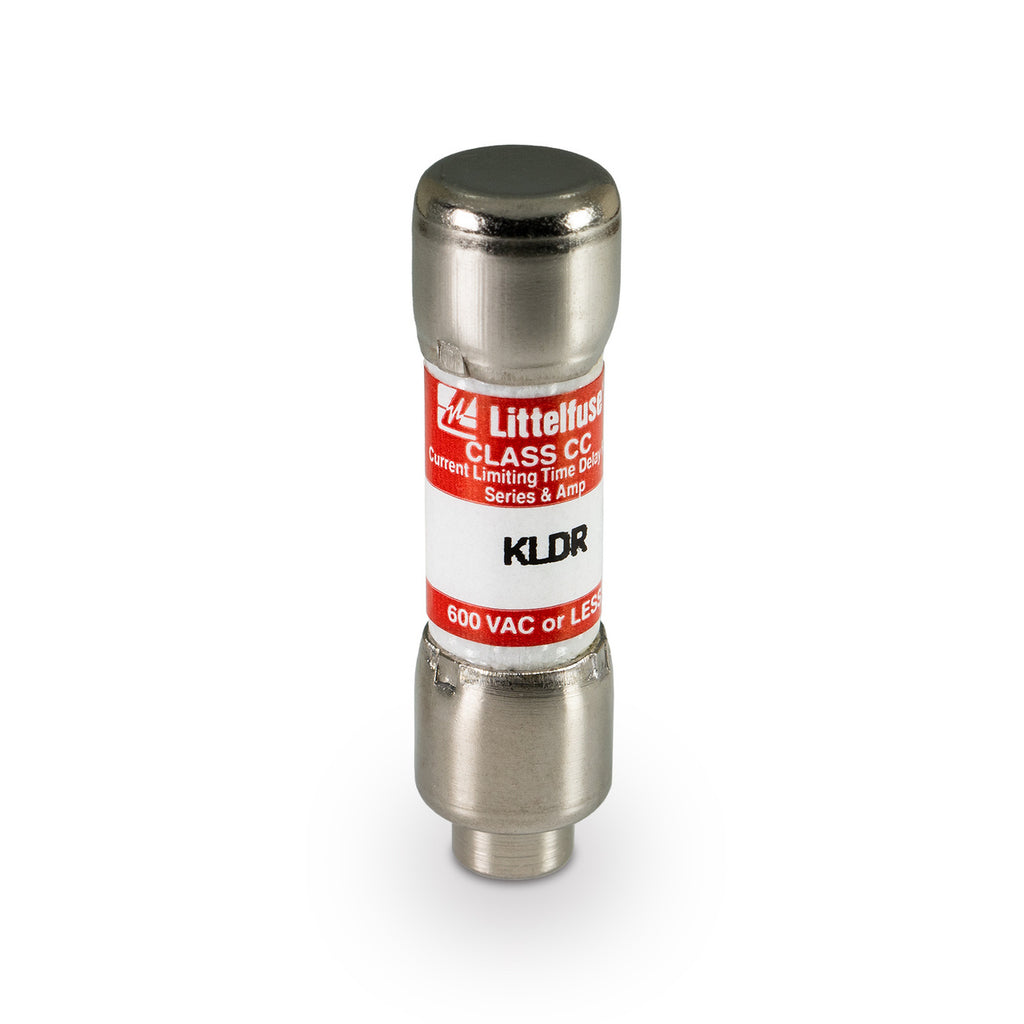

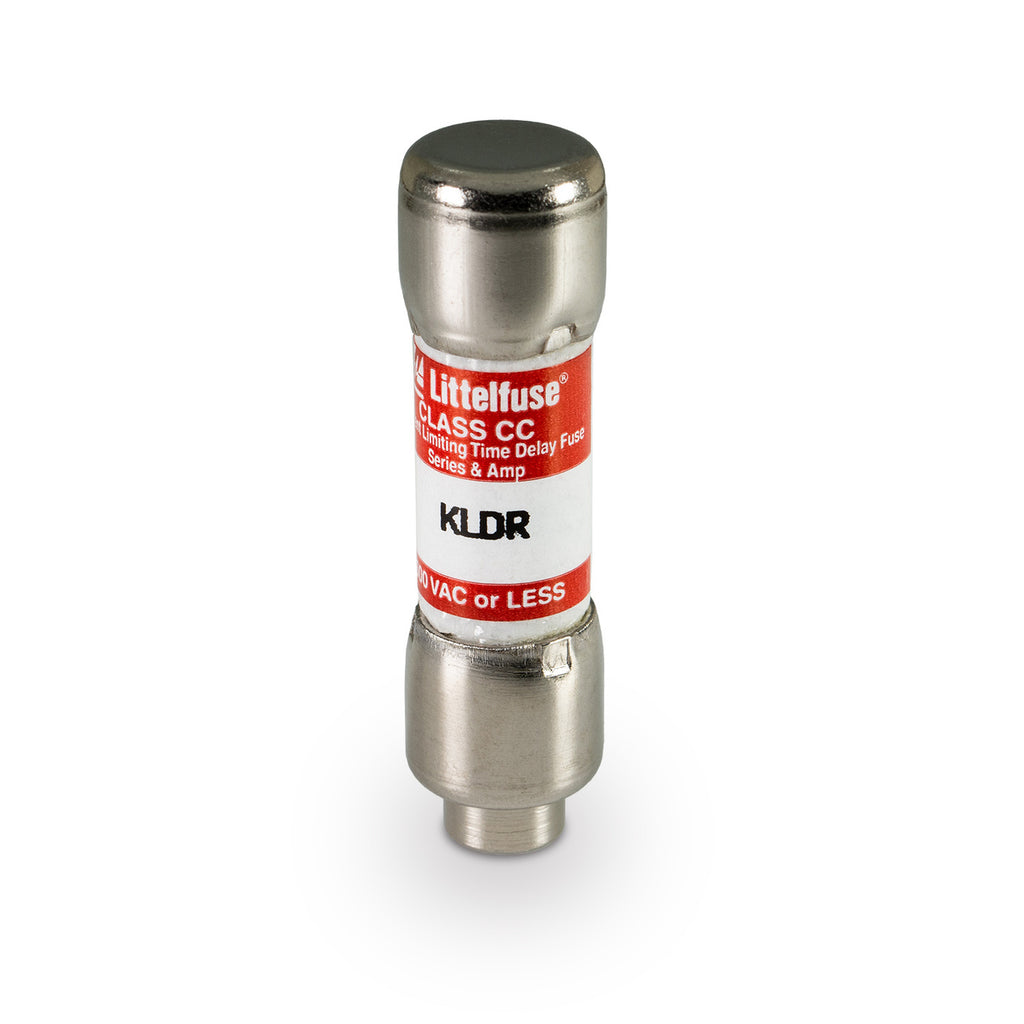

KLDR-.600
KLDR.600 is a Littelfuse Class CC fuse with a 0.6 ampere rating and 600 volts AC maximum voltage rating, designed for control transformer protection. KLDR.600 features a time-delay (Slo-Blo) characteristic to handle temporary current surges without blowing, making it ideal for protecting control transformers, solenoids, and inductive components. It has a 200,000 amp interrupting rating at 600 VAC and 300 VDC, mounts in fuse blocks or clips, and complies with UL 248-4, CSA, and CE certifications.
- Key Specifications
- Current Rating: 0.6 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class CC (Midget)
- Time-Delay (Slo-Blo) Opening
- Interrupting Rating: 200,000 Amps
- Mounting Method: Fuse Block / Clip / Holder
- Size: 1.5 inch length, 0.41 inch diameter
- Series: KLDR
- Approvals: UL 248-4, CSA, CE
- Current Limiting Fuse
- Designed for Control Transformers and Inductive Loads
Specifications
- Part Number: KLDR-.600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 07945879244
- GTIN : 079458792446
- Weight : 5.19
