Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLDR-.400

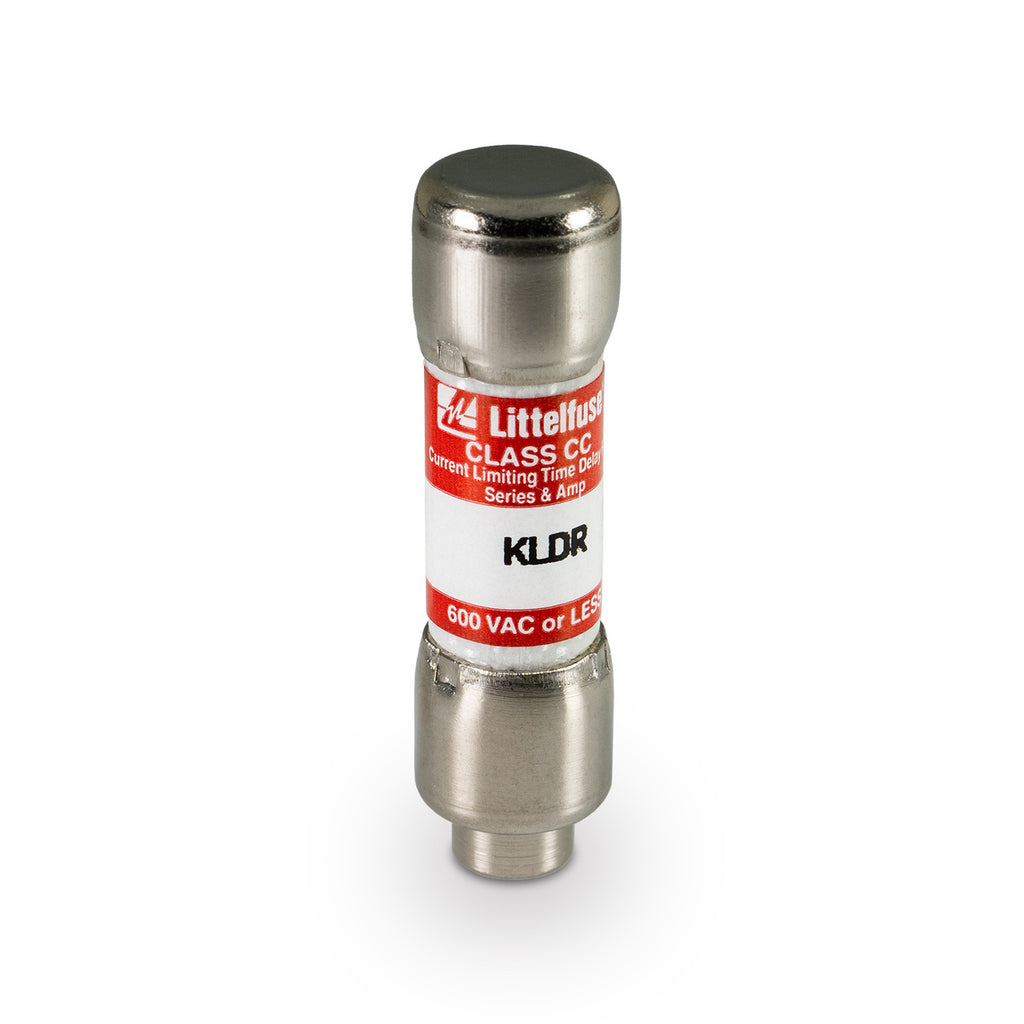

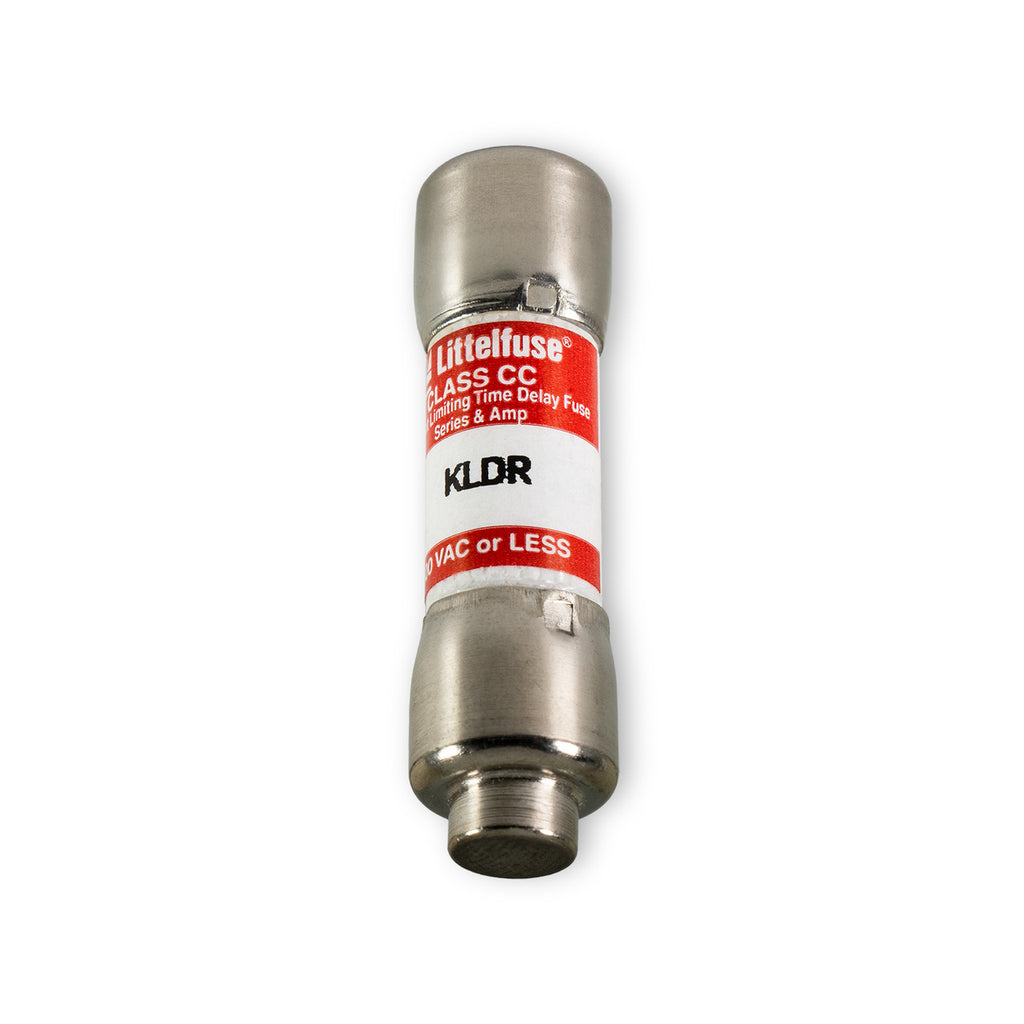

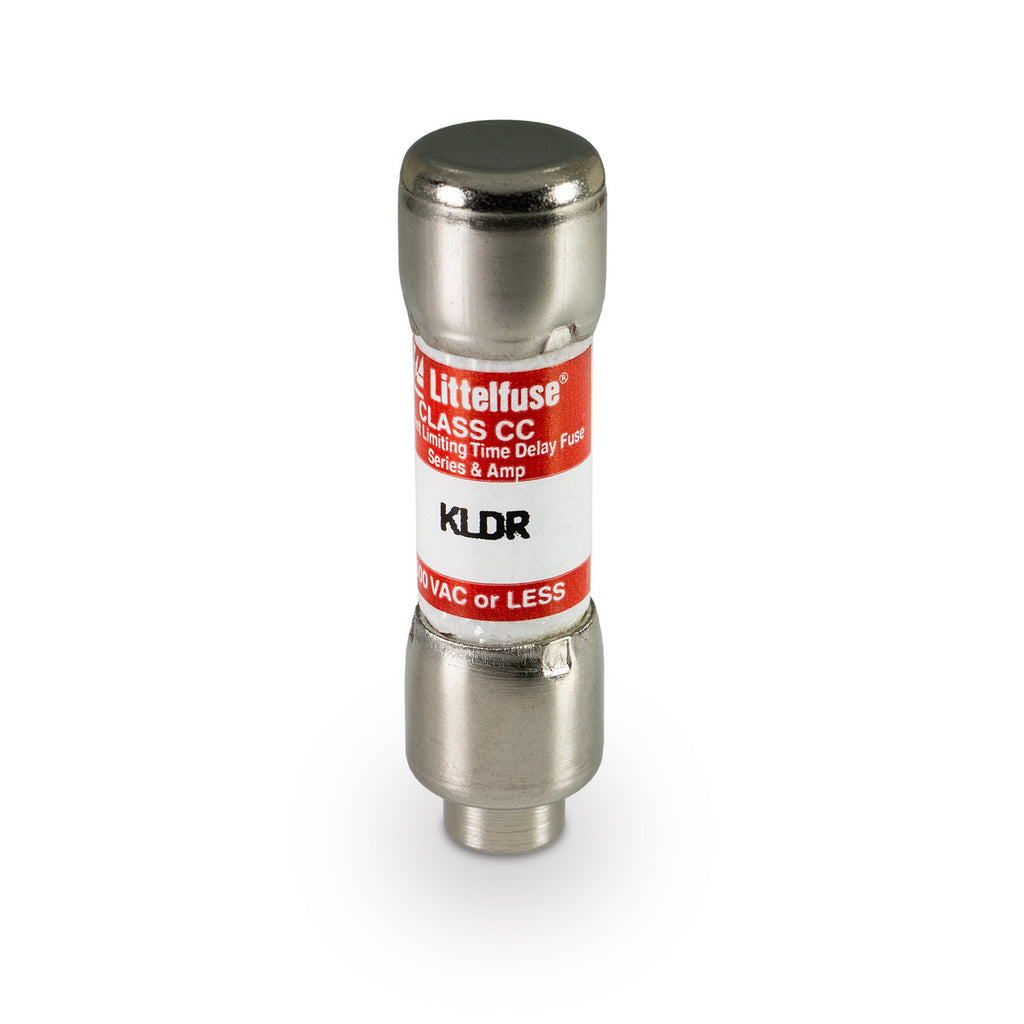

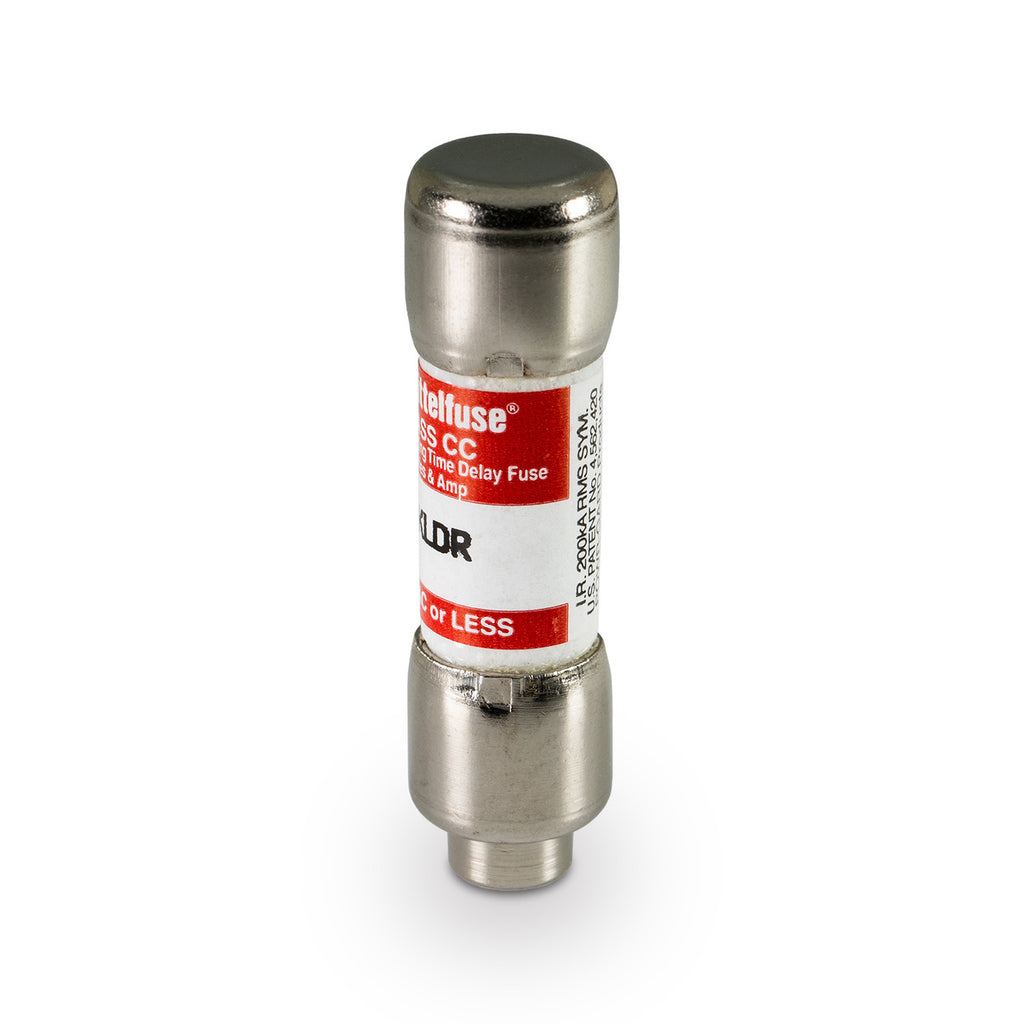

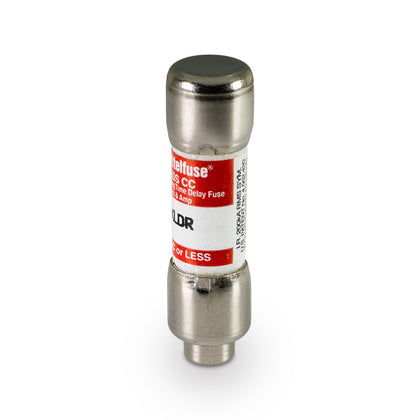

KLDR-.400 is a Littelfuse Class CC time-delay fuse rated for 0.4 amperes and 600 volts AC, designed for control transformer and motor branch circuit protection.
This KLDR Series fuse provides current-limiting and time-delay characteristics to protect control transformers, solenoids, and similar inductive components with high magnetizing currents. It features a rejection design to prevent use in lower-rated fuse holders and meets UL 248-4 Class CC standards with an interrupting rating of 200,000 amps at 600 volts AC. The fuse body is melamine with nickel-plated bronze end caps, measuring approximately 0.41 inches in diameter by 1.5 inches in length.
- Key Specifications
- Amperage: 0.4 A
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Class: Class CC
- Time-Delay Type
- Interrupting Rating: 200,000 A RMS Symmetrical at 600 V AC
- Body Material: Melamine
- End Caps: Nickel-plated Bronze
- Dimensions: 0.41 in diameter x 1.5 in length
- UL 248-4 Certified
- RoHS Compliant
- Country of Origin: Mexico
- Part Number: KLDR-.400
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- UPC : 079458792423
- Weight : 25
