Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLDR-.300

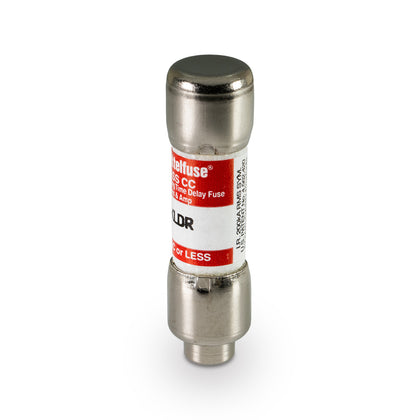

KLDR-.300 is a Littelfuse Class CC time-delay fuse designed for superior protection of control transformers, solenoids, and inductive loads.
This current-limiting fuse offers a 0.3A rating, 600VAC/300VDC voltage, and a high 200kA interrupting capacity. Its time-delay characteristic allows temporary inrush currents without nuisance tripping, making it ideal for motor branch circuits and control applications. The fuse features a rejection design to prevent incorrect substitutions and is RoHS compliant for environmental safety.
-
Key Specifications
- Part Number: KLDR-.300
- Manufacturer: Littelfuse
- Amperage: 0.3A
- Voltage: 600VAC, 300VDC
- Poles: 1
- Mounting Type: Holder (ferrule terminal)
- Interrupt Rating: 200kA at 600VAC, 20kA at 300VDC
- Series/Frame: KLDR, Class CC
- Trip Unit: Time-delay (12 seconds)
- Certifications: UL 248-4, Class CC, RoHS
- Body Material: Melamine
- Dimensions: 13/32" dia x 1-1/2" L
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KLDR-.300
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 07945879241
- GTIN : 07945879241
- Weight : 5.19
