- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLDR-.200

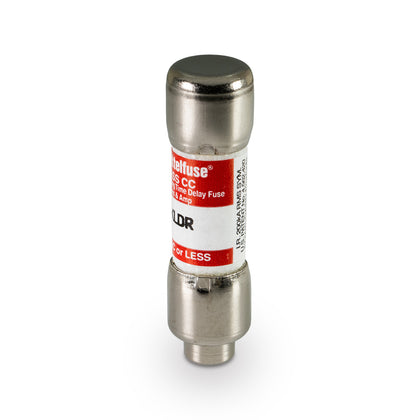

KLDR-.200 is a Littelfuse Class CC time-delay fuse designed for control transformer and solenoid protection.This fuse features a 0.2 ampere current rating with voltage ratings of 600 VAC and 300 VDC. It provides a high interrupting rating of 200,000 amperes RMS symmetrical at 600 VAC and 20,000 amperes DC, ensuring superior short-circuit protection. The KLDR series fuses are time-delay type, allowing temporary current surges without blowing, and are constructed with a melamine body and nickel-plated bronze caps. It complies with UL 248-4 standards and offers rejection capability to prevent incorrect fuse installation.
- Key Specifications
- Current Rating: 0.2 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200kA at 600 VAC, 20kA at 300 VDC
- Fuse Type: Time-Delay (Class CC)
- Body Material: Melamine
- Caps: Nickel-Plated Bronze
- Fuse Size: 0.41 inch diameter x 1.5 inch length
- Standards: UL 248-4, CSA, CE
- Mounting Type: Cartridge
- Application: Control transformers, solenoids, motor branch circuits
- Country of Origin: Mexico
Specifications
- Part Number: KLDR-.200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 079458792393
- Weight : 25
