Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLDR-01.5

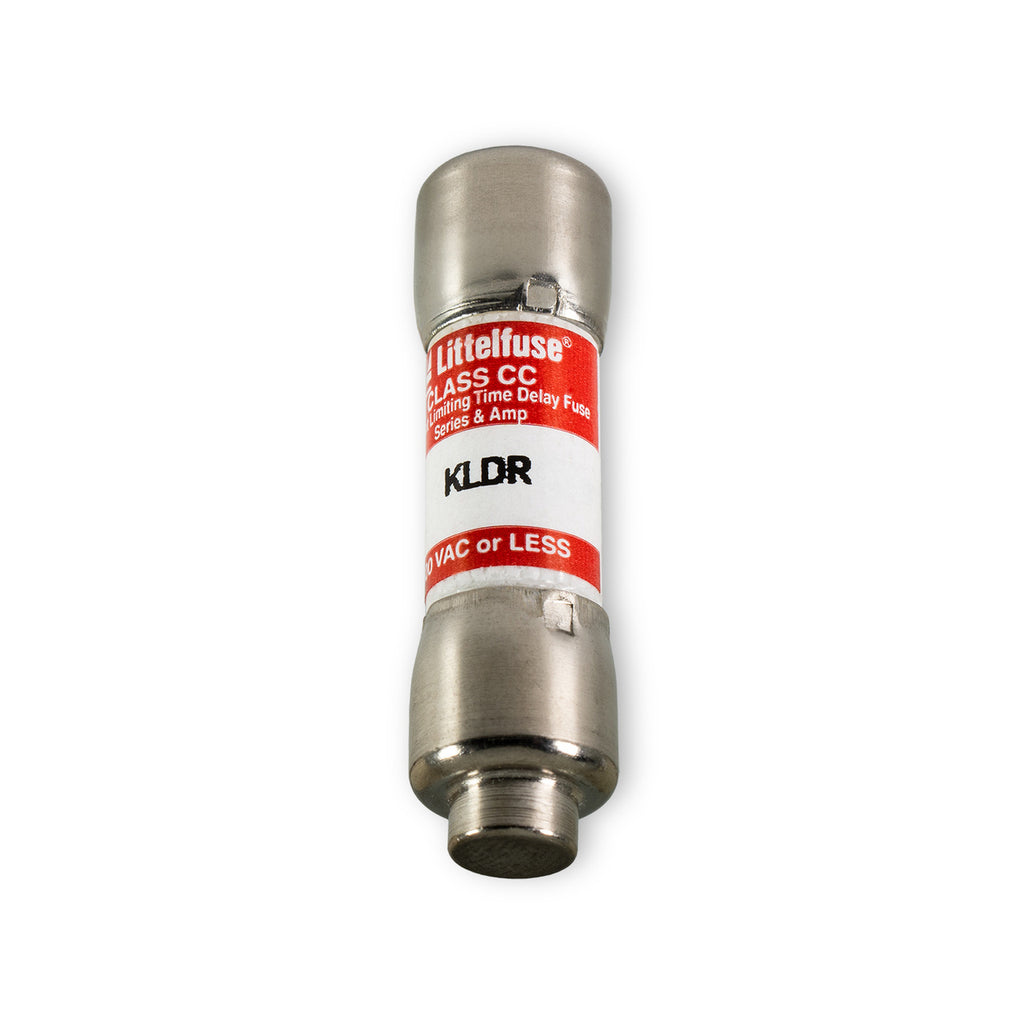

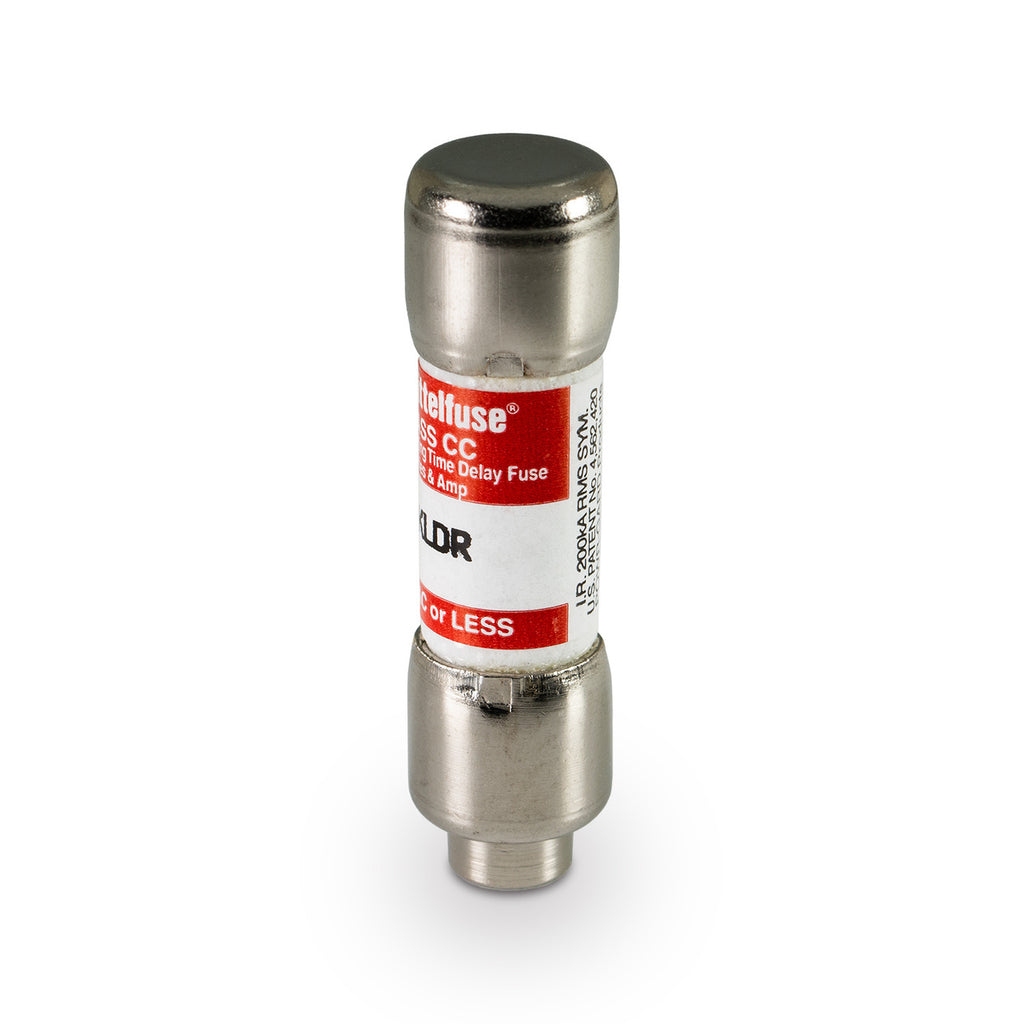

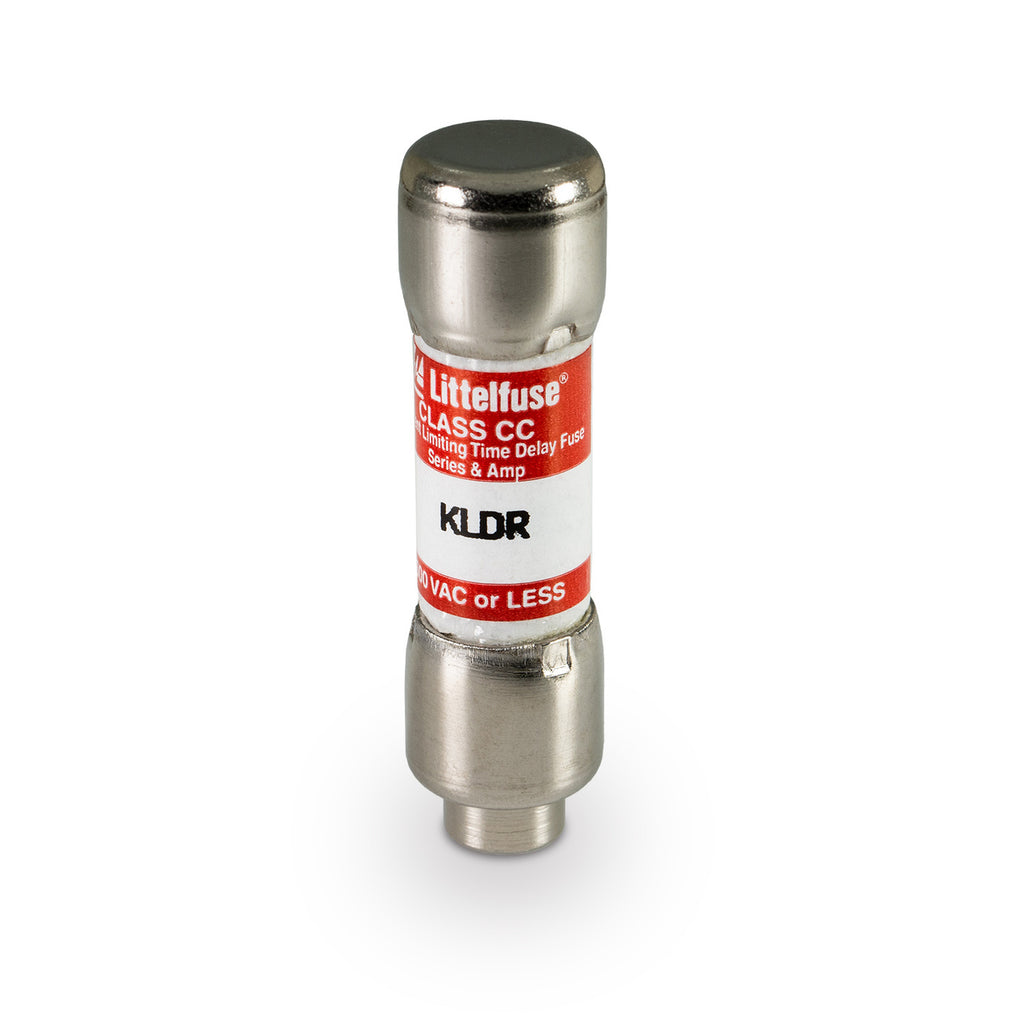

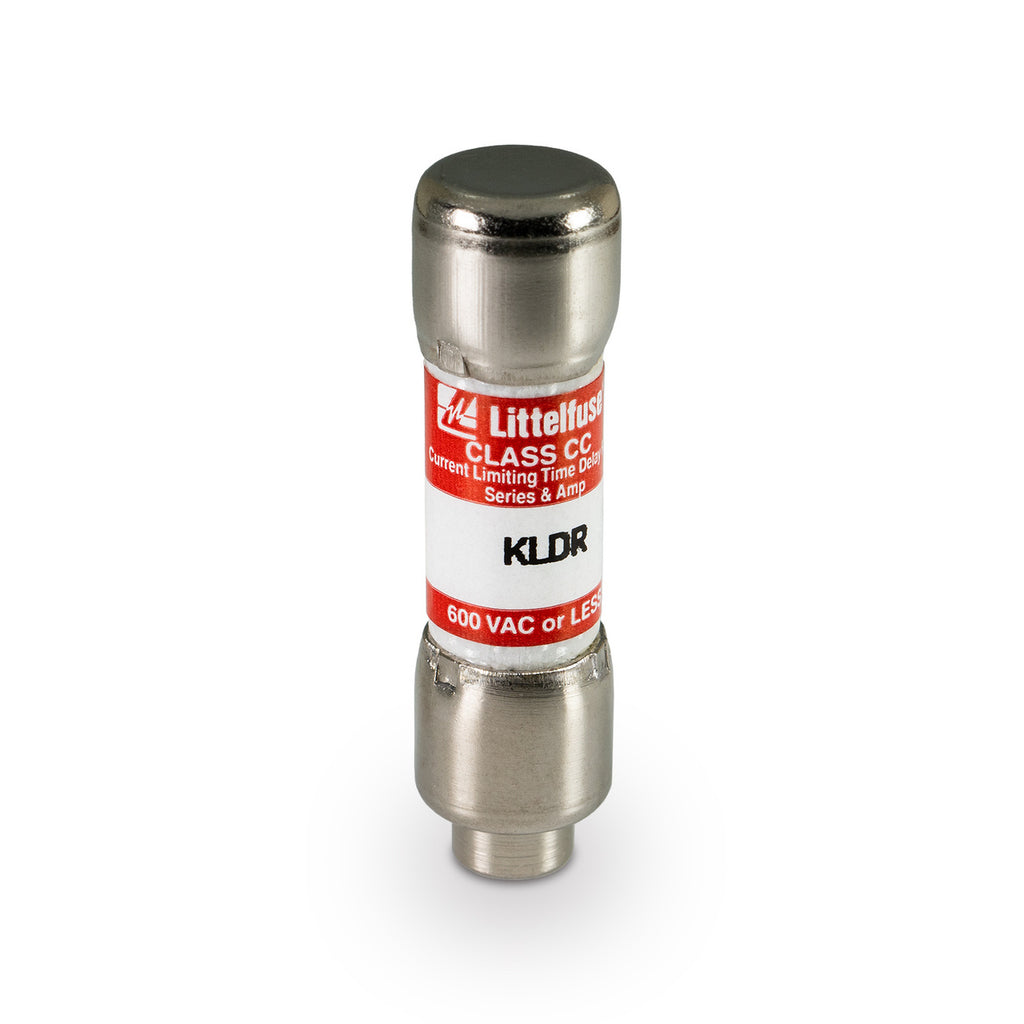

KLDR-01.5 is a Littelfuse Class CC fuse rated for 1.5 amps and 600 volts AC, designed for reliable protection of control transformers and inductive loads.KLDR-01.5 features a time-delay (Slo-Blo) characteristic allowing temporary current surges without blowing, with a high interrupting rating of 200 kA at 600 VAC. It is a current-limiting fuse sized for Class CC fuse holders and blocks, suitable for motor branch circuits and control power transformers.
- Key Specifications
- Amperage: 1.5 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class CC (Midget)
- Opening Characteristic: Time Delay (Slo-Blo)
- Interrupting Rating: 200 kA @ 600 VAC
- Mounting Method: Fuse Block / Clip / Holder
- Size: Class CC
- Current Limiting: Yes
- UL Listed: UL Standard 248-4
- CSA Certified: CSA Standard C22.2 No. 106
Specifications
- Part Number: KLDR-01.5
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 7945811216
- GTIN : 079458792515
- Weight : 5.19
