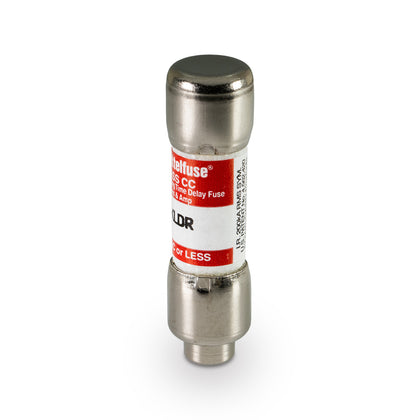

KLDR-01.4 - Littelfuse 1.4A 600V Class CC Time Delay Fuse

KLDR-01.4

KLDR-01.4 is a Littelfuse 1.4 ampere, 600 volt AC Class CC time delay fuse designed for control transformer and motor branch circuit protection.This KLDR Series fuse features time-delay characteristics allowing temporary current surges without blowing, current-limiting to reduce damage from short circuits, and rejection capability to prevent improper fuse use. It is UL 248-4 and CSA certified with a high interrupting rating of 200,000 A rms symmetrical at 600 VAC. The fuse body is melamine with nickel-plated bronze end caps, measuring 0.41 inch diameter by 1.5 inches long.

Key Specifications
• Amperage: 1.4 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Class: Class CC
• Time Delay: Yes
• Interrupting Rating: 200,000 A rms symmetrical AC
• Mounting Type: Cartridge (Midget)
• Body Material: Melamine
• End Caps: Nickel-plated Bronze
• Dimensions: 0.41" diameter x 1.5" length
• Certifications: UL 248-4, CSA
• Series: KLDR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KLDR-01.4
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse

Product Data

• UPC : 079458792508
• GTIN : 00079458792508
• Weight : 5.19
