Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLDR-006

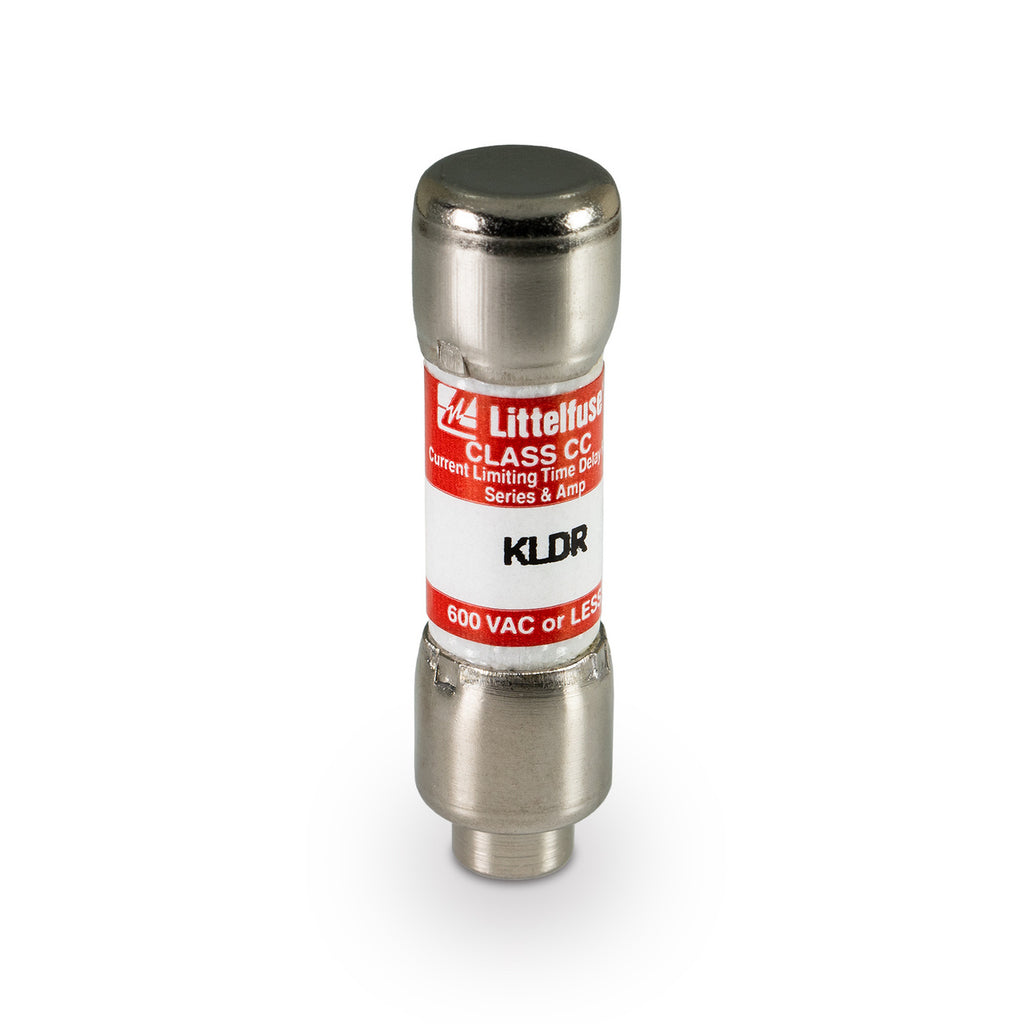

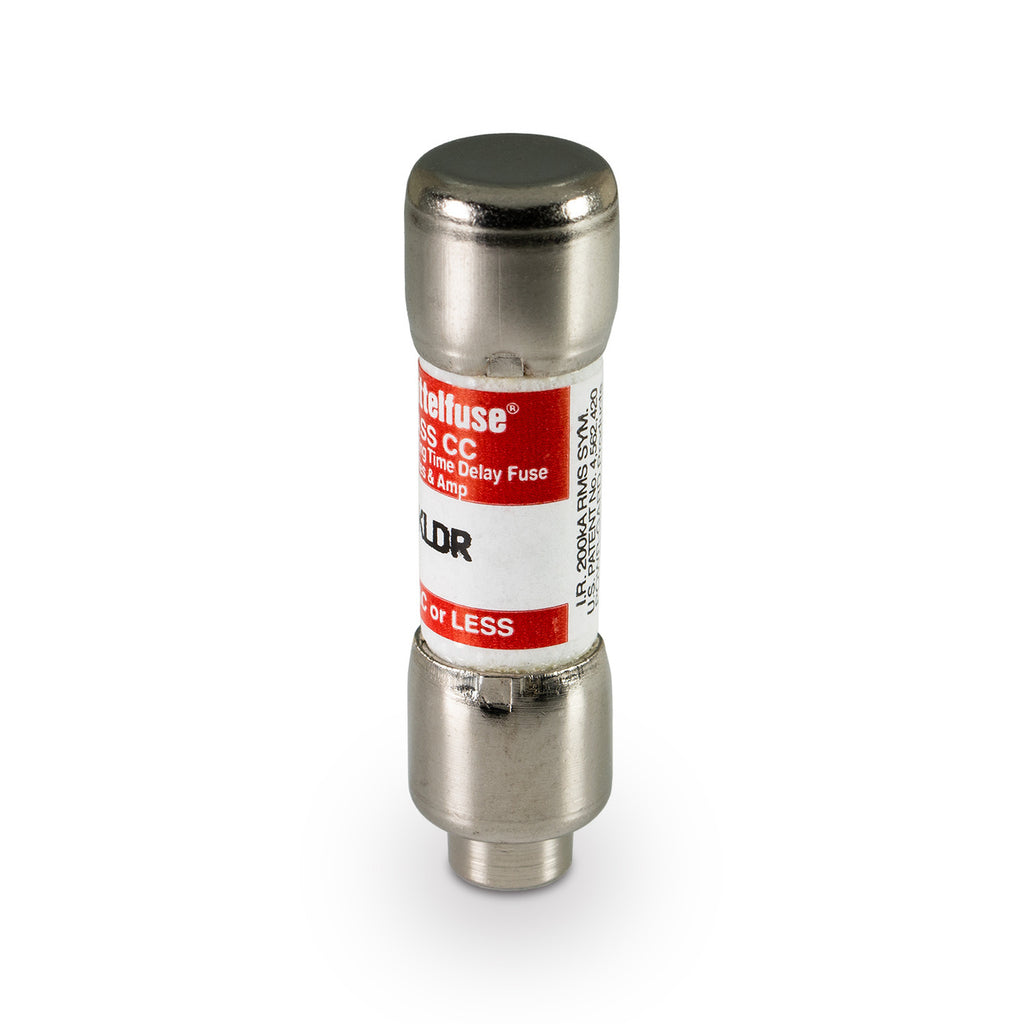

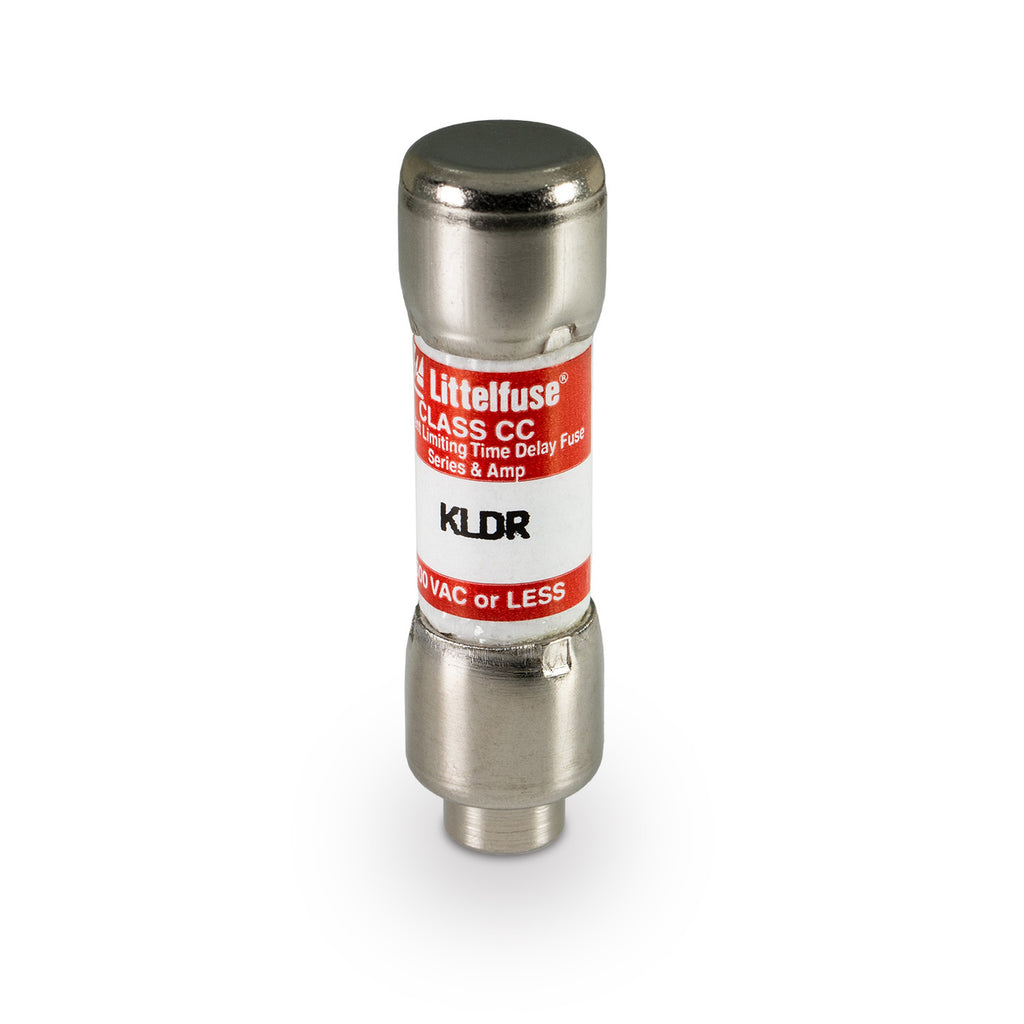

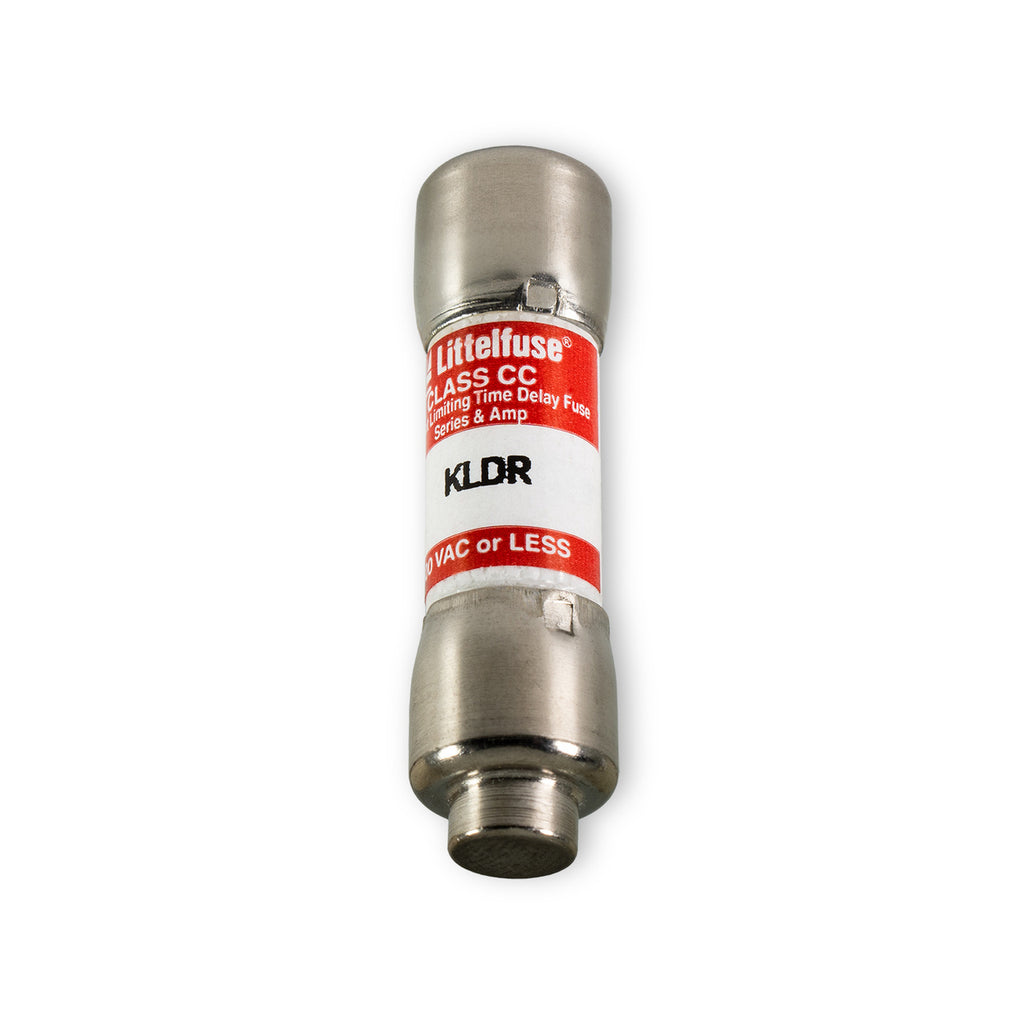

KLDR-006 is a Littelfuse Class CC fuse rated for 6 amps and 600 volts, designed for branch circuit and control transformer protection.This time-delay, extremely current limiting fuse features a physical size of 0.41" x 1.5", with a high interrupting rating of 200,000 amps at 600 VAC and 300 VDC. It is UL Listed, CSA Certified, RoHS Compliant, and suitable for use in fuse blocks, clips, or holders. The KLDR series matches control power transformer characteristics and provides reliable short-circuit protection with rejection capability.
- Key Specifications
- Amperage Rating: 6 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: Class CC (Midget)
- Fuse Size: 0.41" x 1.5"
- Fuse Type: Time Delay (Slo-Blo)
- Interrupting Rating: 200 kA @ 600 VAC
- Mounting Type: Fuse Block / Clip / Holder
- Certifications: UL Listed, CSA Certified, RoHS Compliant
- Series: KLDR
- Protection Type: Branch Circuit and Control Transformer
Specifications
- Part Number: KLDR-006
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 079458792652
- GTIN : 079458792652
- Weight : 5.19
