Product Info
- Manufacturer:Littelfuse
- Sub-Category:Medium Voltage Fuse
Description
KLDR-003

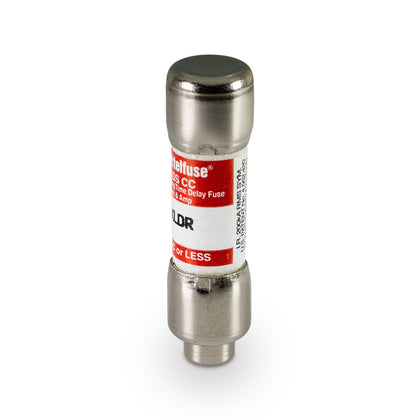

KLDR-003 is a Littelfuse Class CC time-delay fuse rated for 3 amperes and designed for transformer protection.This fuse features a 3 amp current rating with voltage ratings of 600 V AC and 300 V DC. It is a time-delay, current-limiting fuse with a breaking capacity of 200,000 A at 600 VAC and 20,000 A at 300 VDC. The fuse body is ceramic and industrial grade, suitable for protecting control transformers, solenoids, and motor branch circuits. It complies with UL 248-4 standards and is RoHS compliant.
- Key Specifications
- Amperage: 3 A
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Type: Time-Delay, Current-Limiting
- Class: CC
- Interrupting Rating: 200 kA AC, 20 kA DC
- Body Material: Ceramic
- Application: Transformer and solenoid protection
- Standards: UL 248-4, RoHS Compliant
- Mounting Type: Cartridge
- Dimensions: 13/32 in x 1 1/2 in
Specifications
- Part Number: KLDR-003
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
Product Data
- UPC : 079458792584
- GTIN : 00079458792584
- Weight : 25
