Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
KHL36125

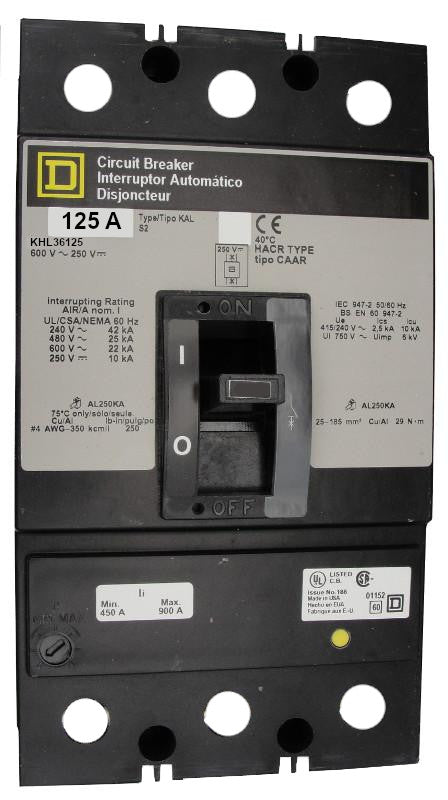

KHL36125 is a 125 Amp, 600 Volt, 3 Pole thermal magnetic molded case circuit breaker by Square D designed for feed-thru mounting.
This Square D KHL36125 circuit breaker features a KHL frame type with a 35kA interrupting rating at 480V, providing high interrupting capacity. It includes long-time and instantaneous trip functions (LI), line and load side lug terminals, and is UL, CSA, and CE approved. The breaker is suitable for 3-phase applications and offers reliable protection with thermal magnetic trip technology.
- Amperage: 125A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Feed-Thru
- Interrupting Rating: 35kA @ 480V
- Frame Type: KHL
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Terminal Connection: Line and Load Side Lug
- Phase: 3
- Certifications: UL, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KHL36125
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : KHL Series
- Type : KHL
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901241799
- GTIN : 00785901241799
- Weight : 9
