Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

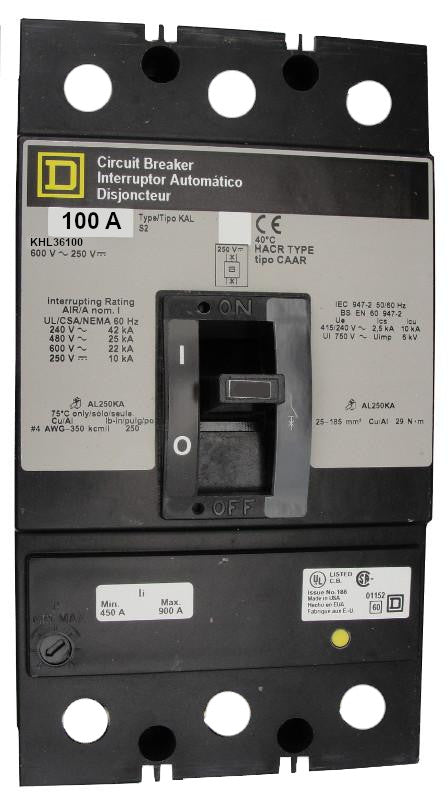

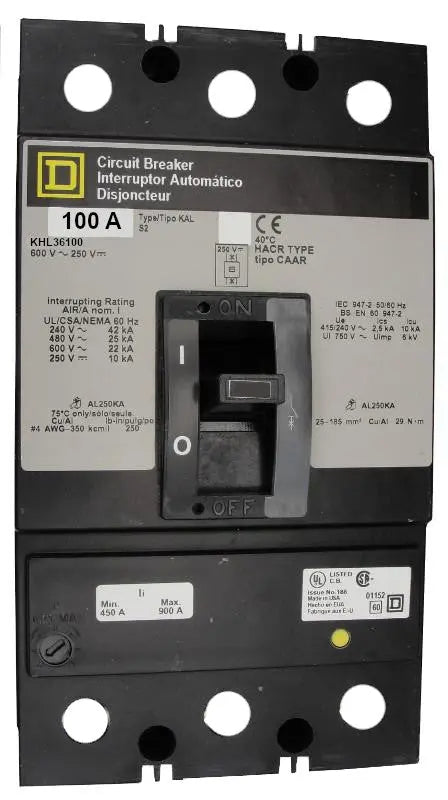

KHL36100
KHL36100 is a Square D KHL Series 3-pole molded case circuit breaker with a 100A thermal magnetic trip unit, designed for reliable protection in commercial and industrial applications. This breaker features a KHL frame, 600V maximum voltage, and is rated for 100A at 40°C. It offers high interrupting capacity with ratings up to 65kA at 240VAC, 35kA at 480VAC, and 25kA at 600VAC. The unit includes line and load end terminals and is suitable for bolt-on mounting. The trip unit is non-interchangeable and provides both long-time and instantaneous protection.
- Manufacturer: Square D
- Series: KHL
- Amperage: 100A
- Poles: 3
- Voltage: 600V
- Interrupting Rating: 65kA @ 240VAC, 35kA @ 480VAC, 25kA @ 600VAC
- Mounting Type: Bolt On
- Frame Type: KHL
- Thermal Magnetic Trip Unit
- Non-interchangeable Trip
- Line and Load Terminals
- Warranty: 1 Year
Specifications
- Part Number: KHL36100
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : KHL Series
- Type : KHL
- Voltage : 600
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 35kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 785901529897
- Weight : 9
