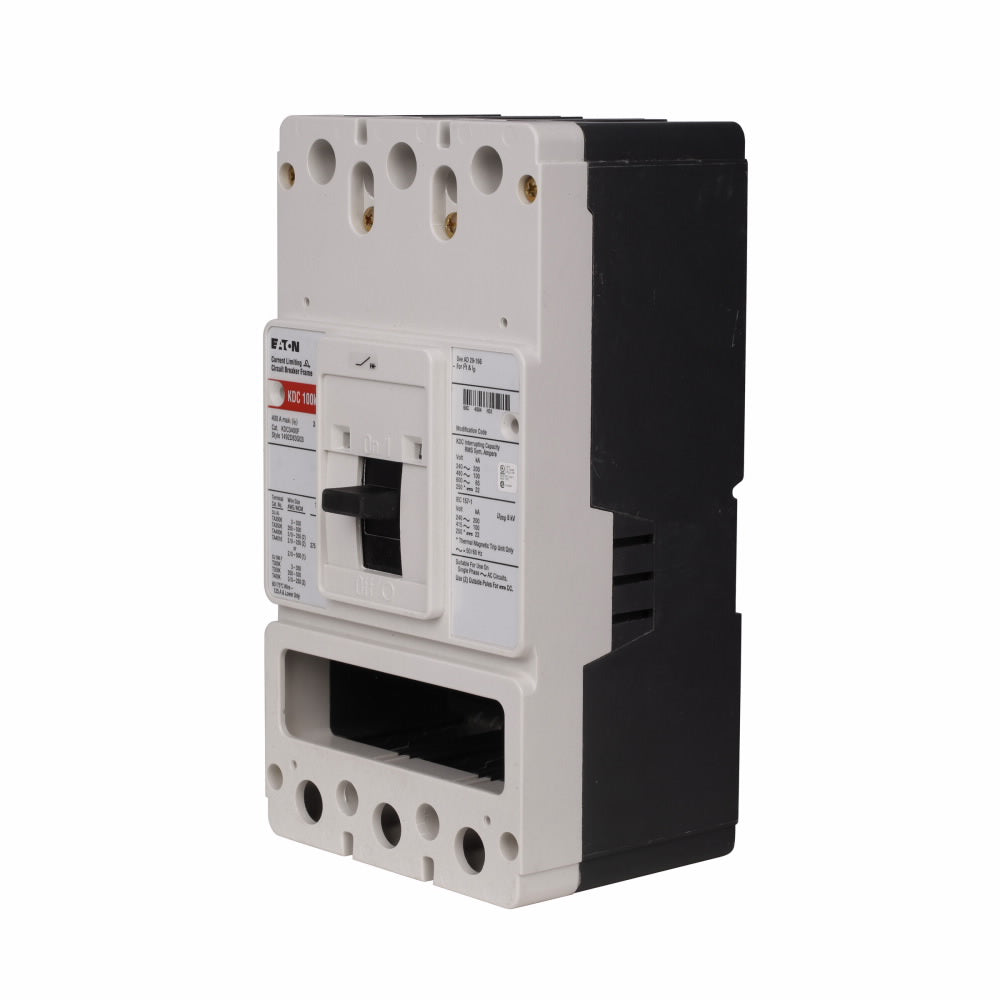

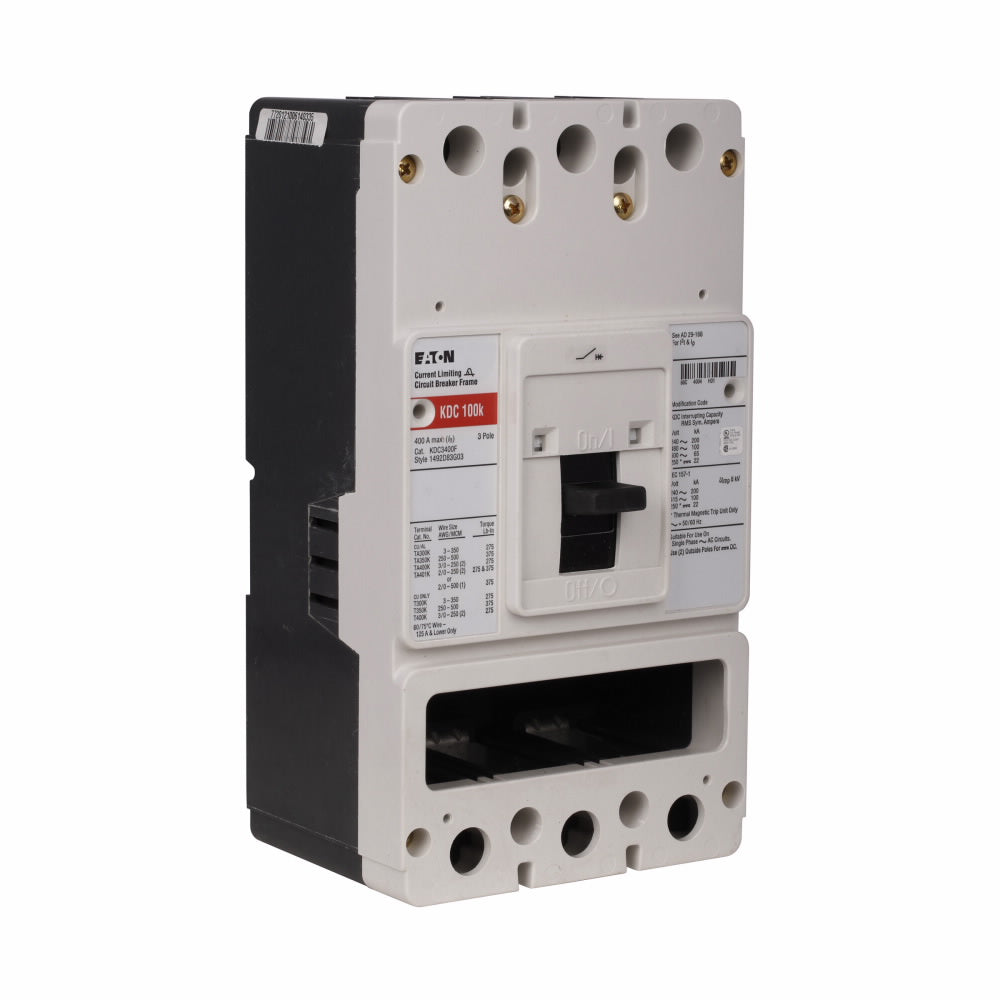

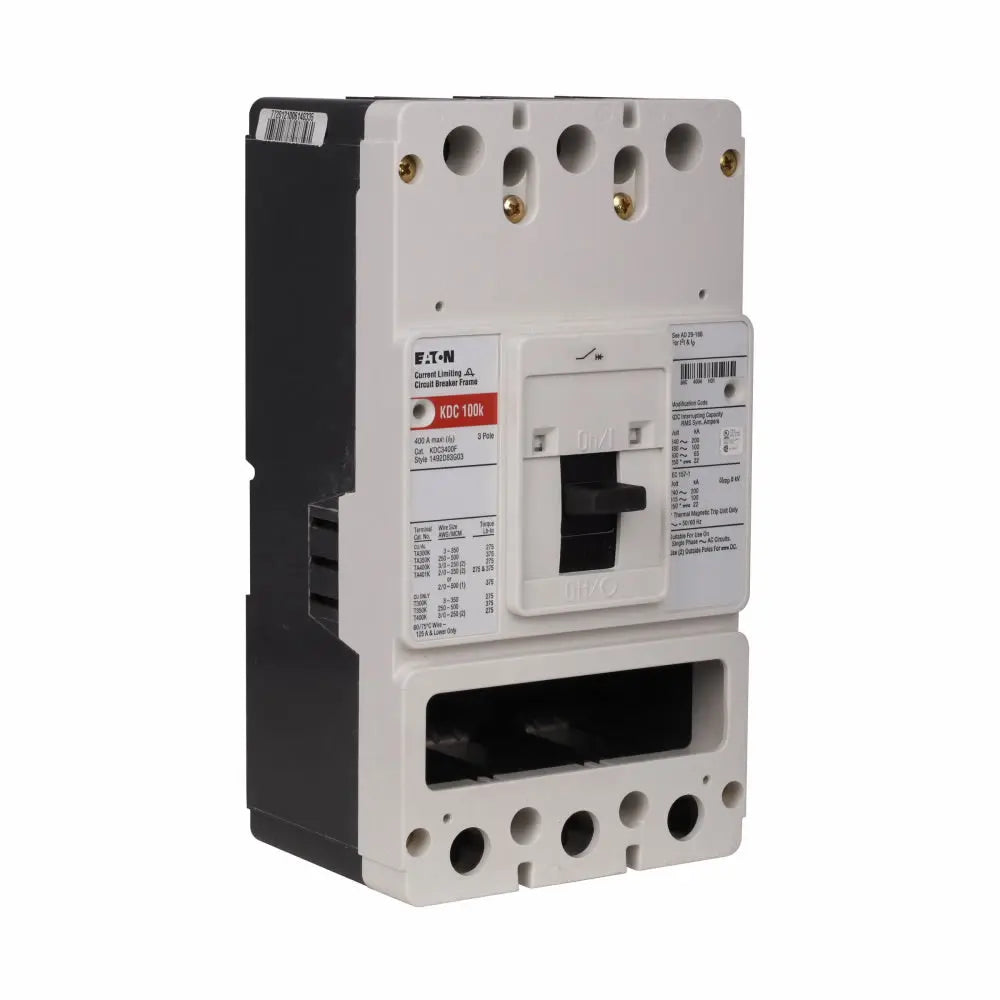

KDC3400Y - Eaton 400 Amp 600 Volt 3-Pole Series C Molded Case Circuit Breaker

KDC3400Y

This Eaton KDC3400Y circuit breaker features a fixed thermal and fixed magnetic trip unit designed for reliable protection in electrical distribution systems. It is rated for 400 Amps continuous current and supports a voltage rating of 600 VAC and 250 VDC. The breaker has a 3-pole configuration and is constructed with aluminum terminals for line and load connections. It offers an interrupt rating of 200 kAIC at 240 VAC and 100 kAIC at 480 VAC, suitable for demanding industrial and commercial applications. The breaker operates at 50/60 Hz frequency and is part of Eaton's K-frame Series C molded case circuit breakers.

Key Specifications
• Amperage: 400 Amp
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 3
• Series/Frame: Series C, K-frame
• Trip Unit: Fixed thermal, fixed magnetic
• Interrupt Rating: 200 kAIC at 240 VAC, 100 kAIC at 480 VAC
• Terminal Material: Aluminum
• Frequency: 50/60 Hz
• Connection Type: Line and load

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KDC3400Y
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : KDC
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic



Product Data

• Weight : 12
