Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
KDC3400T57WPN

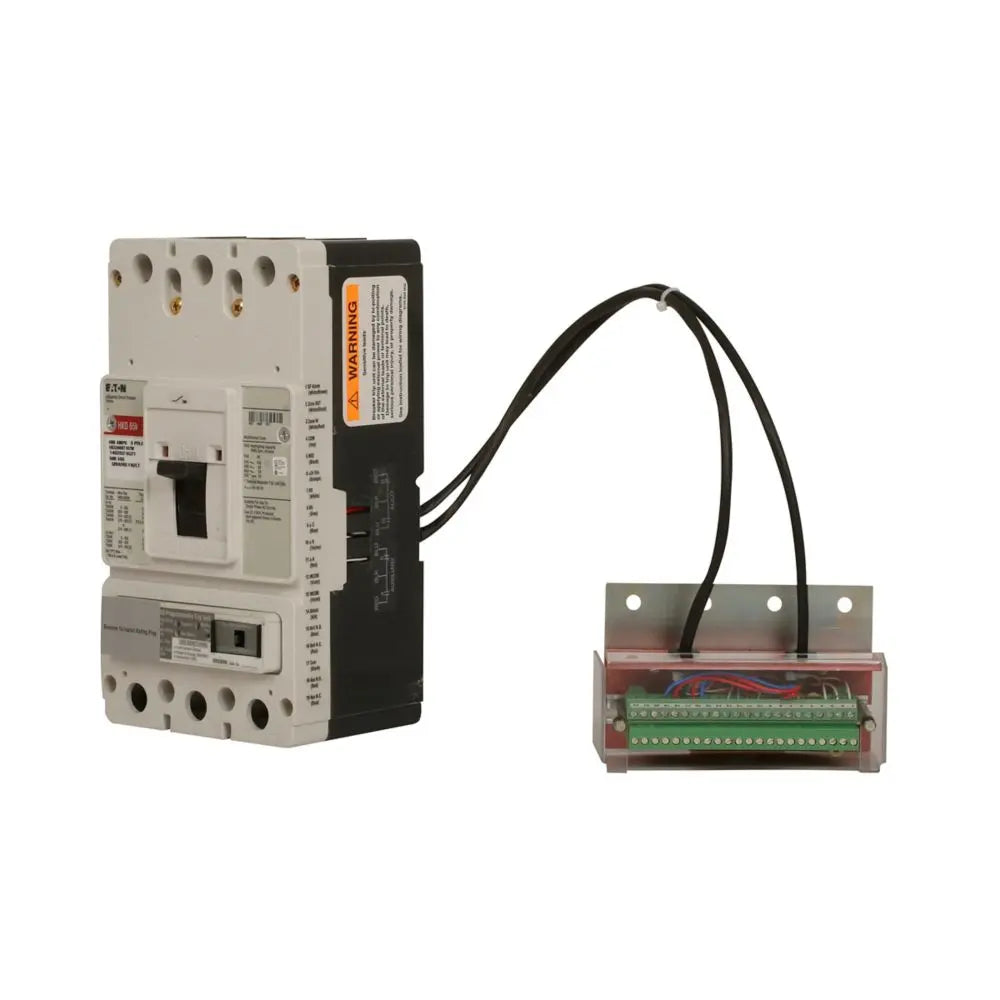

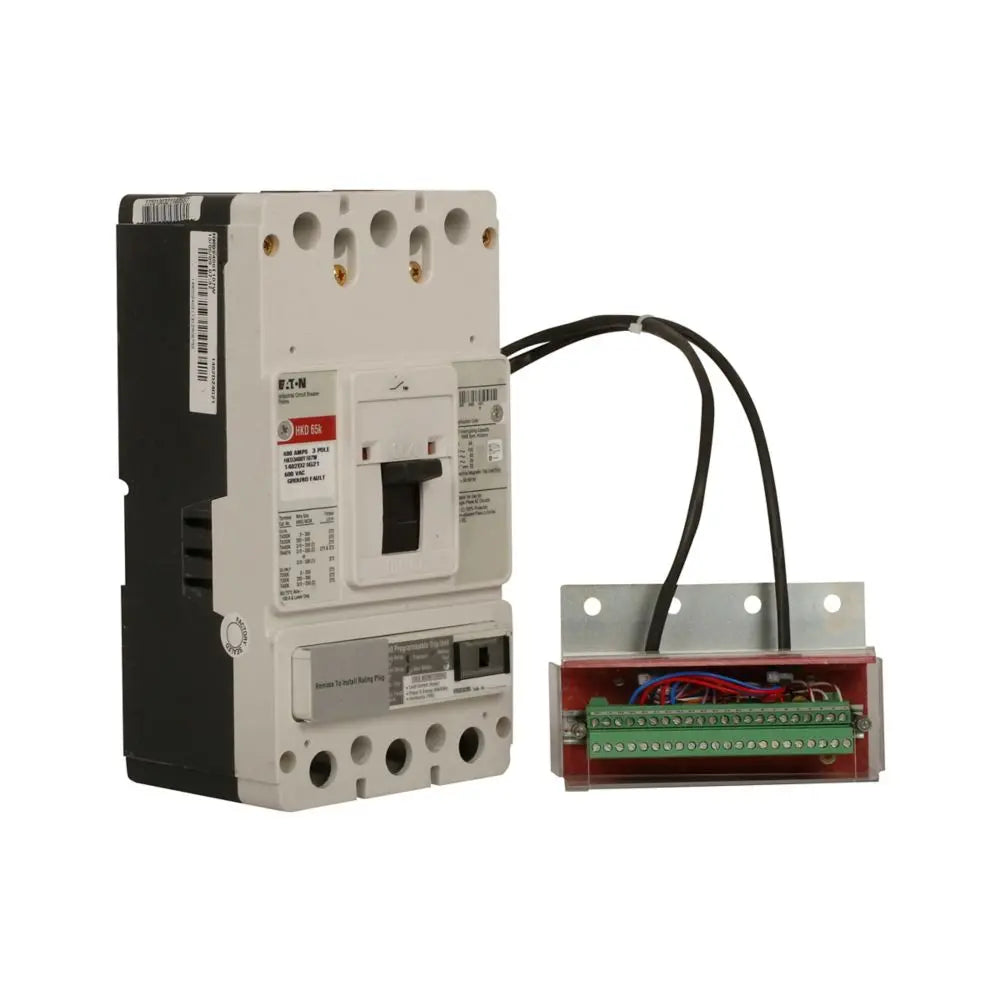

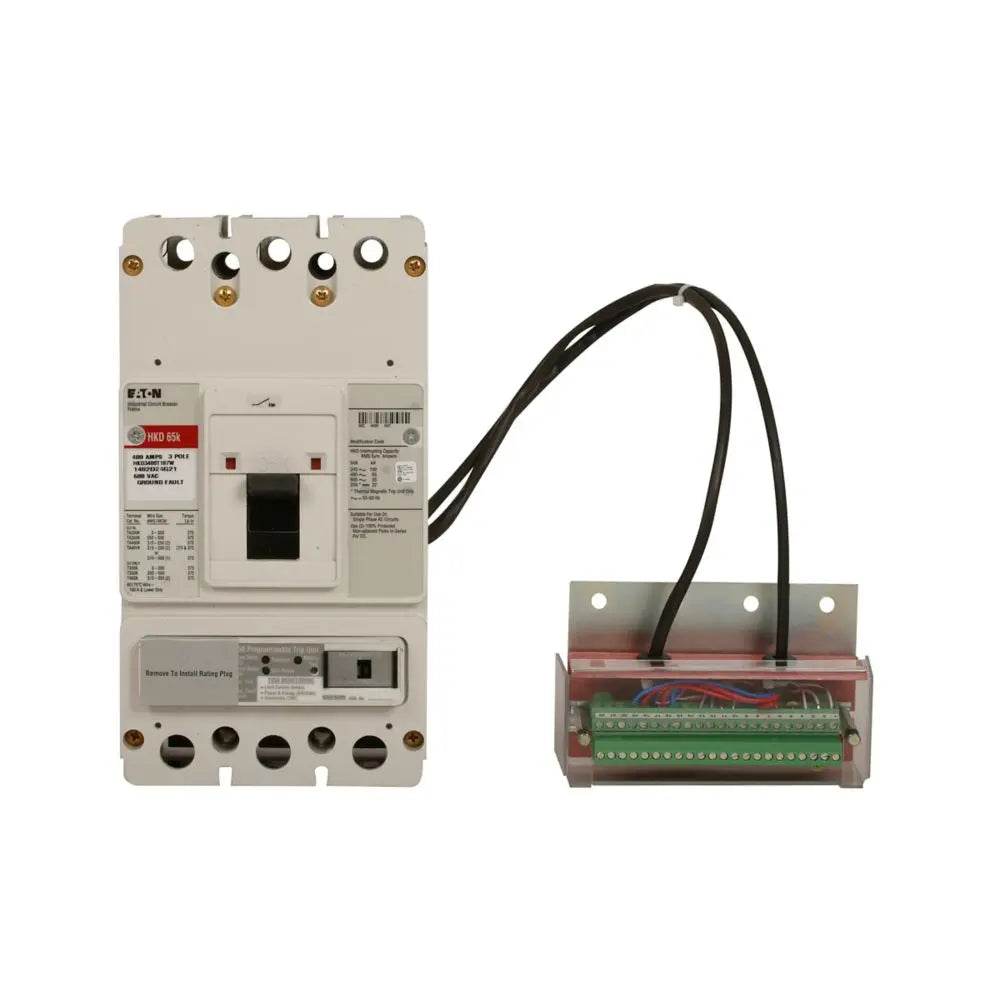

KDC3400T57WPN is an Eaton Cutler Hammer Series C K-Frame molded case circuit breaker designed for reliable circuit protection.This 3-pole breaker features a 400 ampere rating with voltage ratings of 600 Vac and 250 Vdc. It includes an OPTIM 550 electronic LSIA trip unit for precise and fast response. The breaker is a complete KDC type with a fixed thermal and magnetic trip, suitable for 50 to 60 Hz frequency applications. It is UL listed and designed for bolt-on mounting.
- Key Specifications
- Amperage: 400 A
- Voltage: 600 Vac, 250 Vdc
- Poles: 3
- Frame: K-Frame
- Series: Series C
- Trip Unit: Electronic LSIA (OPTIM 550)
- Mounting Type: Bolt-On
- Interrupt Rating: 200 kAIC at 240 Vac
- Frequency: 50-60 Hz
- Certifications: UL Listed
- Part Number: KDC3400T57WPN
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Functions : LI - Long-Time and Instantaneous
- Amperage Maximum : 70
- Amperage Minimum : 70
- Protection : Thermal Magnetic
- UPC : 078211352898
- Dimensions : 4.1 in x 5.5 in x 5.5 in (Length/Depth x Height x Width)
- Weight : 3
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
