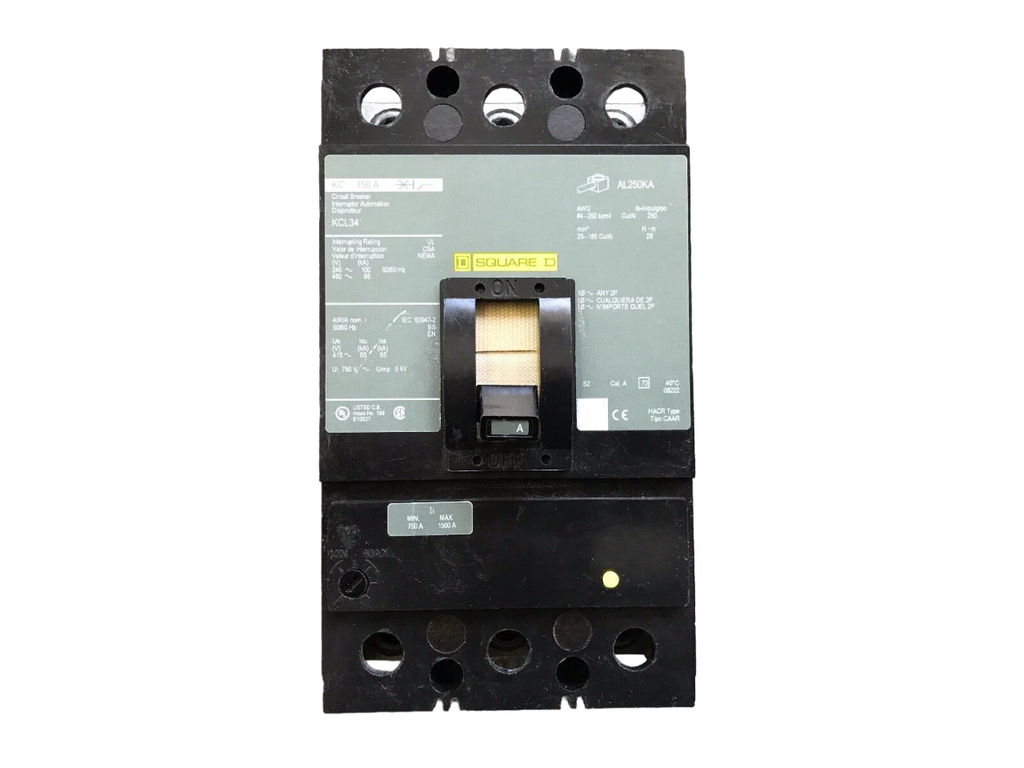

KCL34250 - Square D 250 Amp 480 Volt 3 Pole KCL Series Molded Case Circuit Breaker Feed-Thru

KCL34250

KCL34250 is a Square D 3 pole molded case circuit breaker rated for 250 amps and 480 volts, designed for reliable circuit protection in industrial applications.This thermal magnetic circuit breaker features a KCL frame with feed-thru mounting type, providing long-time and instantaneous trip functions. It supports 3-phase connections with a high interrupting rating of 65kA at 480VAC and 100kA at 240VAC. The breaker is UL listed and CSA certified, ensuring compliance with safety standards. It includes line and load side lug terminals for versatile installation.

• Manufacturer: Square D
• Part Number: KCL34250
• Amperage: 250A
• Voltage: 480V AC
• Poles: 3
• Series/Frame: KCL
• Mounting Type: Feed-Thru
• Interrupt Rating: 65kA at 480V, 100kA at 240V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
• Phase: 3
• Certifications: UL Listed, CSA Certified
• Connection: Line and Load Side Lug Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: KCL34250
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : KCL Series
• Type : KCL
• Voltage : 480
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 785901043492
• Weight : 11
• Certification : UL, CSA, CE, IEC, NOM
