Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KBC-350

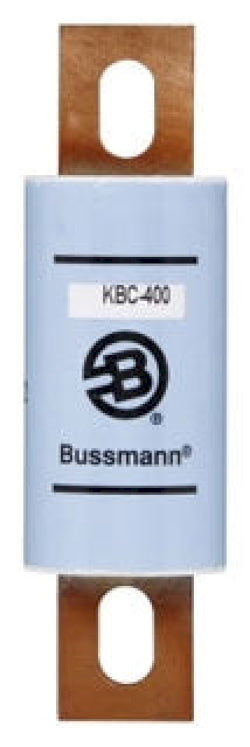

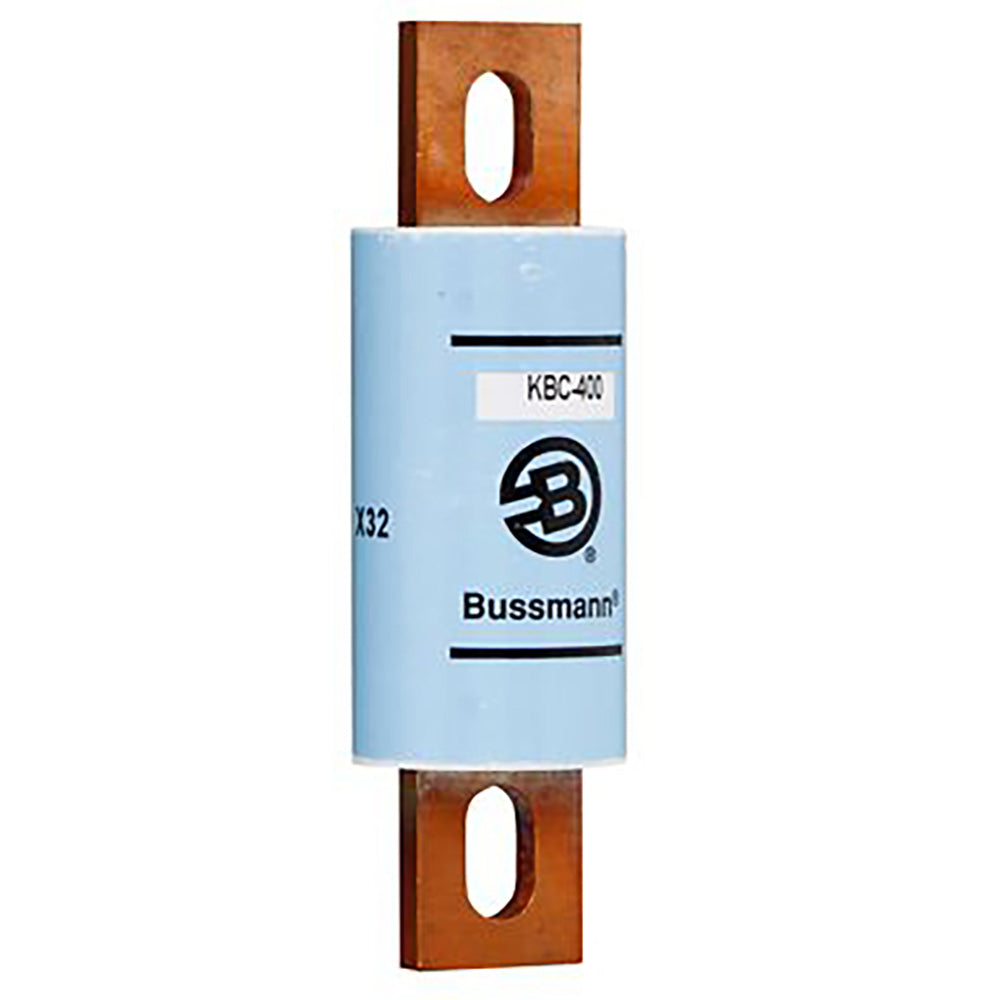

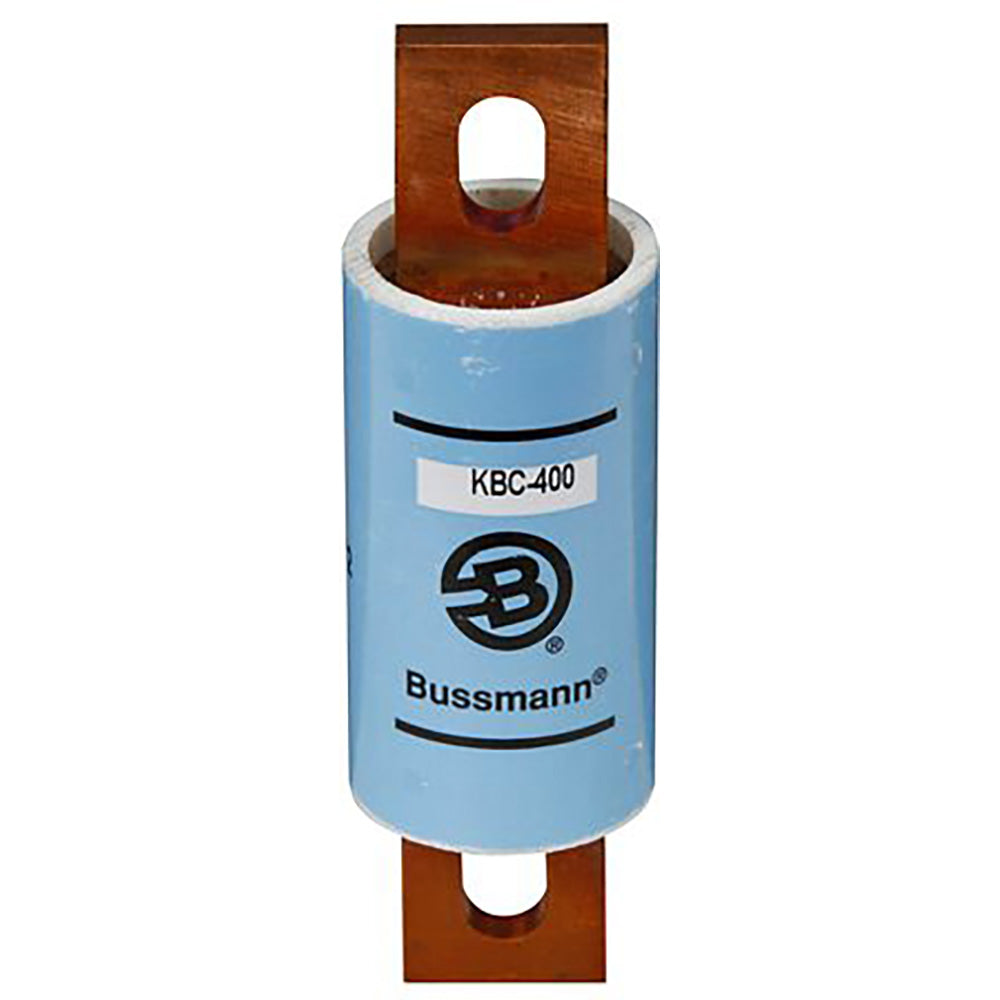

KBC-350 is a high-speed semiconductor fuse from the Eaton Bussmann KBC series, designed for reliable circuit protection in demanding applications. This fuse features a stud mount design and is rated for 350A at 600VAC, with a 200kA interrupting rating for robust performance. The KBC-350 is a single-element, nonrejection, fiberglass-bodied fuse with fast blow characteristics. It is engineered for use in semiconductor and industrial power systems where high-speed protection is critical. The stud mount termination allows for secure installation and easy replacement.
- Amperage: 350A
- Voltage Rating AC: 600VAC
- Voltage Rating DC: 1500VDC
- Interrupt Rating: 200kA
- Mounting Type: Stud
- Termination Style: Bolt Down
- Fuse Type: Fast Blow
- Series: KBC
- Indicator: Non Indicating
- Material: Fiberglass
- Application: Semiconductor Protection
- UL Recognized
Specifications
- Part Number: KBC-350
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KBC Series
- Type : KBC
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Connection : Stud
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 051712493505
- GTIN : 00051712493505
- Country of Origin : Mexico
- Dimensions : 6.182 in x 2 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.8
- Certification : UL Recognized,CE Marked,RoHS Compliant
