Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

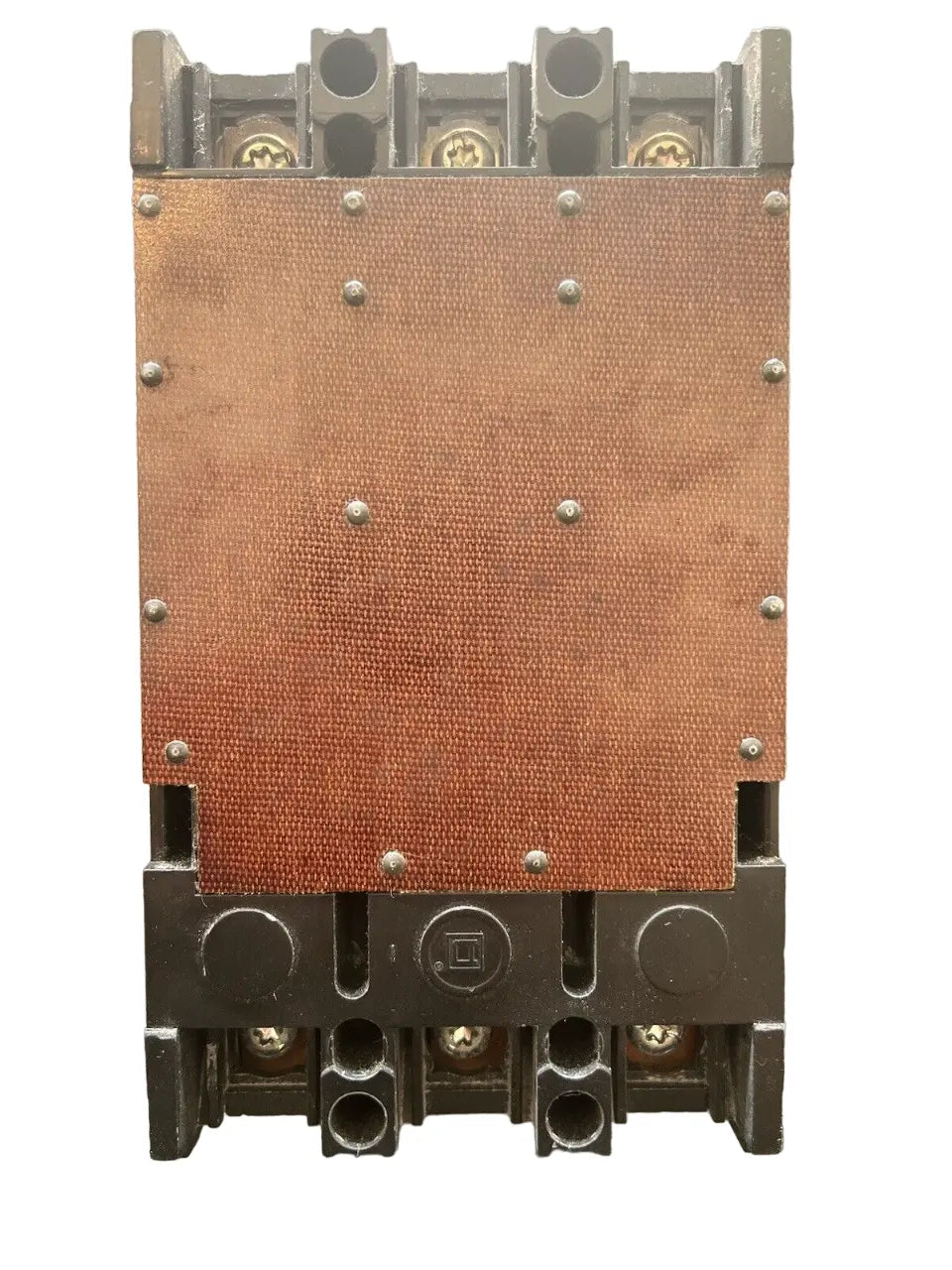

KAL36150WB
KAL36150WB is a molded case circuit breaker from Square D designed for industrial power distribution and protection applications. This 3-pole unit mount breaker provides reliable thermal-magnetic trip protection with standard interrupting capacity suitable for industrial enclosures and control systems. The KAL series delivers consistent performance in demanding electrical environments with HACR rating for motor applications.
- Amperage Rating: 150A
- Voltage Rating: 600VAC
- Number of Poles: 3
- Frame Type: K-Frame (250A Frame)
- Mounting Type: Unit Mount
- Interrupt Rating: 25kA at 480VAC
- Trip Unit: Thermal-Magnetic with Long-Time and Instantaneous
- Wire Size: #4 to 350 AWG/kcmil (Aluminum or Copper)
- HACR Rated: Yes
- Certifications: UL Listed, CSA Certified, IEC Rated
- Weight: 7.2 lbs
- Dimensions: 4.50 inches wide x 4.75 inches deep x 8.00 inches high
Specifications
- Part Number: KAL36150WB
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : KAL Series
- Type : KAL
- Voltage : 600
- Amperage : 150
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 9
