Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description

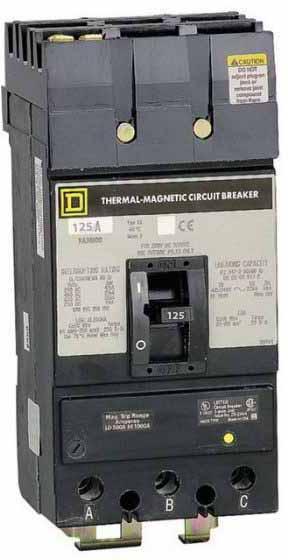

KAL36125
KAL36125 is a 3 pole, 125 amp, 600VAC circuit breaker from Square D designed for industrial applications.KAL36125 features a thermal magnetic trip unit with long-time and instantaneous trip functions, a 25kA interrupting rating at 480V, and bolt-on mounting. It includes feed-thru connection with line and load side lug terminals and is UL, CSA, and CE approved.
- Key Specifications
- Amperage: 125A
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Bolt-On
- Interrupting Rating: 25kA at 480V
- Frame Type: KAL
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous)
- Connection Type: Feed-Thru
- Terminal Connection: Line and Load Side Lug
- Certifications: UL Listed, CSA Certified, CE Approved
- Phase: 3
- Weight: Approximately 7 lbs
Specifications
- Part Number: KAL36125
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : KAL Series
- Type : KAL
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous Trip
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 722511313645
- GTIN : 00722511313645
- Weight : 9
