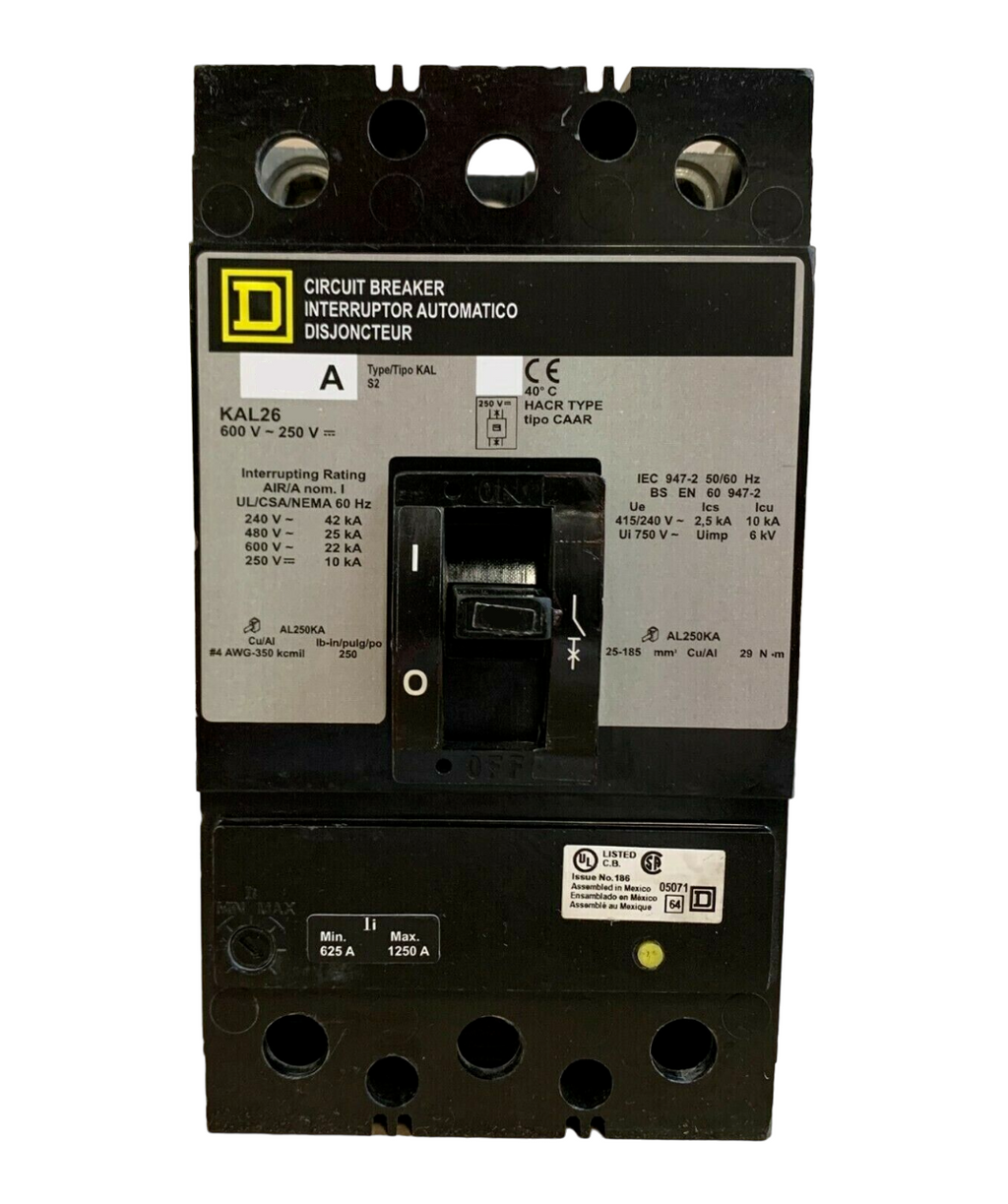

KAL26100 - Square D 100A 600V 2-Pole K-Frame Thermal Magnetic Molded Case Circuit Breaker

KAL26100

KAL26100 is a Square D 2-pole, 100 amp, 600 volt thermal magnetic molded case circuit breaker designed for reliable industrial power protection.This K-Frame breaker features a thermal magnetic trip unit with a high interrupting rating suitable for demanding applications. It supports 600 VAC and 250 VDC operation with a 22 kA interrupt rating at 600 VAC and 25 kA at 480 VAC. The breaker includes lug-type terminals for line and load connections and complies with UL 489, CSA C22.2, IEC 60947-2, and Federal Specification W-C-375B/GEN standards.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 VAC, 250 VDC
• Number of Poles: 2
• Frame Type: K-Frame (KAL Series)
• Interrupting Rating: 42 kA at 240 VAC, 25 kA at 480 VAC, 22 kA at 600 VAC, 10 kA at 125/250 VDC
• Trip Unit Type: Thermal Magnetic
• Terminal Type: Lug (Aluminum/Copper Line and Load)
• Mounting: Individually mountable
• Certifications: UL 489, CSA C22.2, IEC 60947-2, Federal Specification W-C-375B/GEN
• Dimensions: Approx. 4.5" W x 4.75" D x 8" H
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: KAL26100
• Manufacturer : Square D
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : KAL Series
• Type : KAL
• Voltage : 600
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 25kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : K Frame
• Protection : Thermal Magnetic



Product Data

• UPC : 722511313645
• GTIN : 00722511313645
• Weight : 8
• Wire Size : #4 AWG–350KCmil
