KAF36250 - Square D 3 Pole 250 Amp 600VAC Molded Case Circuit Breaker

KAF36250

KAF36250 is a 3-pole molded case circuit breaker rated for 250 amperes at 600VAC, designed for I-Line panels and switchboards with plug-on mounting. This thermal magnetic breaker delivers reliable protection for industrial and commercial power distribution applications. KAF36250 features an adjustable magnetic trip setting from 1250A to 2500A, a short circuit current rating of 25kA at 480VAC, and HACR rating for motor applications. The breaker accepts wire sizes from #4 to 350 AWG/kcmil in aluminum or copper, with a K-frame design optimized for space-constrained installations.

• Amperage Rating: 250A
• Voltage Rating: 600VAC
• Number of Poles: 3
• Mounting Type: Plug-On I-Line
• Frame Type: K-Frame
• Trip Unit: Thermal Magnetic with Adjustable Magnetic Trip
• Short Circuit Rating: 25kA at 480VAC
• Wire Size: #4 to 350 AWG/kcmil
• HACR Rated: Yes
• Certifications: UL Listed, CSA Certified, IEC Rated
• Dimensions: 4.50 inches wide, 4.75 inches deep, 8.00 inches high
• Weight: 7 pounds

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

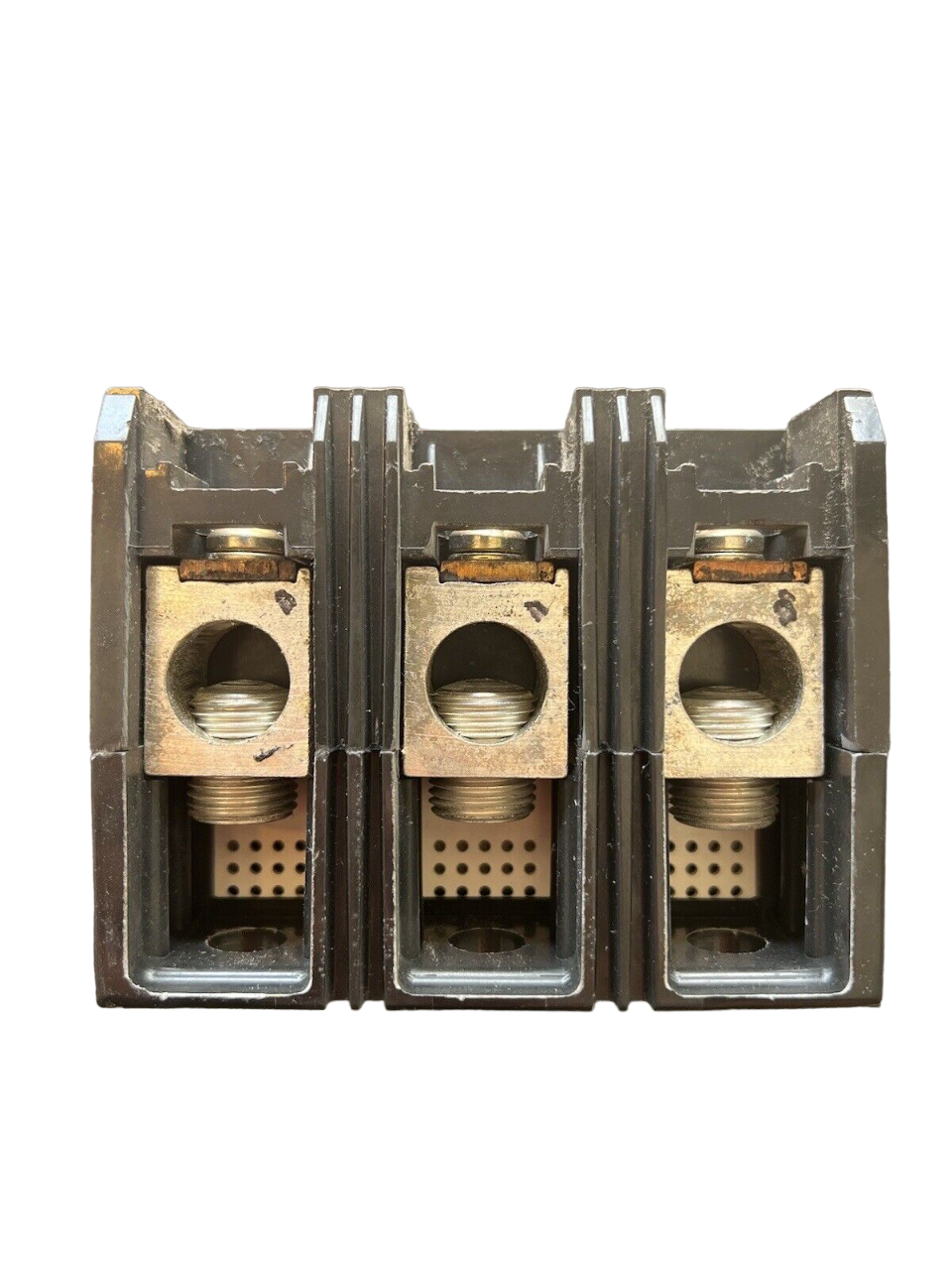

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.

Specifications

• Part Number: KAF36250
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : KAF Series
• Type : KAF
• Voltage : 600
• Amperage : 250
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic

Product Data

• Weight : 9
