2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
KAF36125V

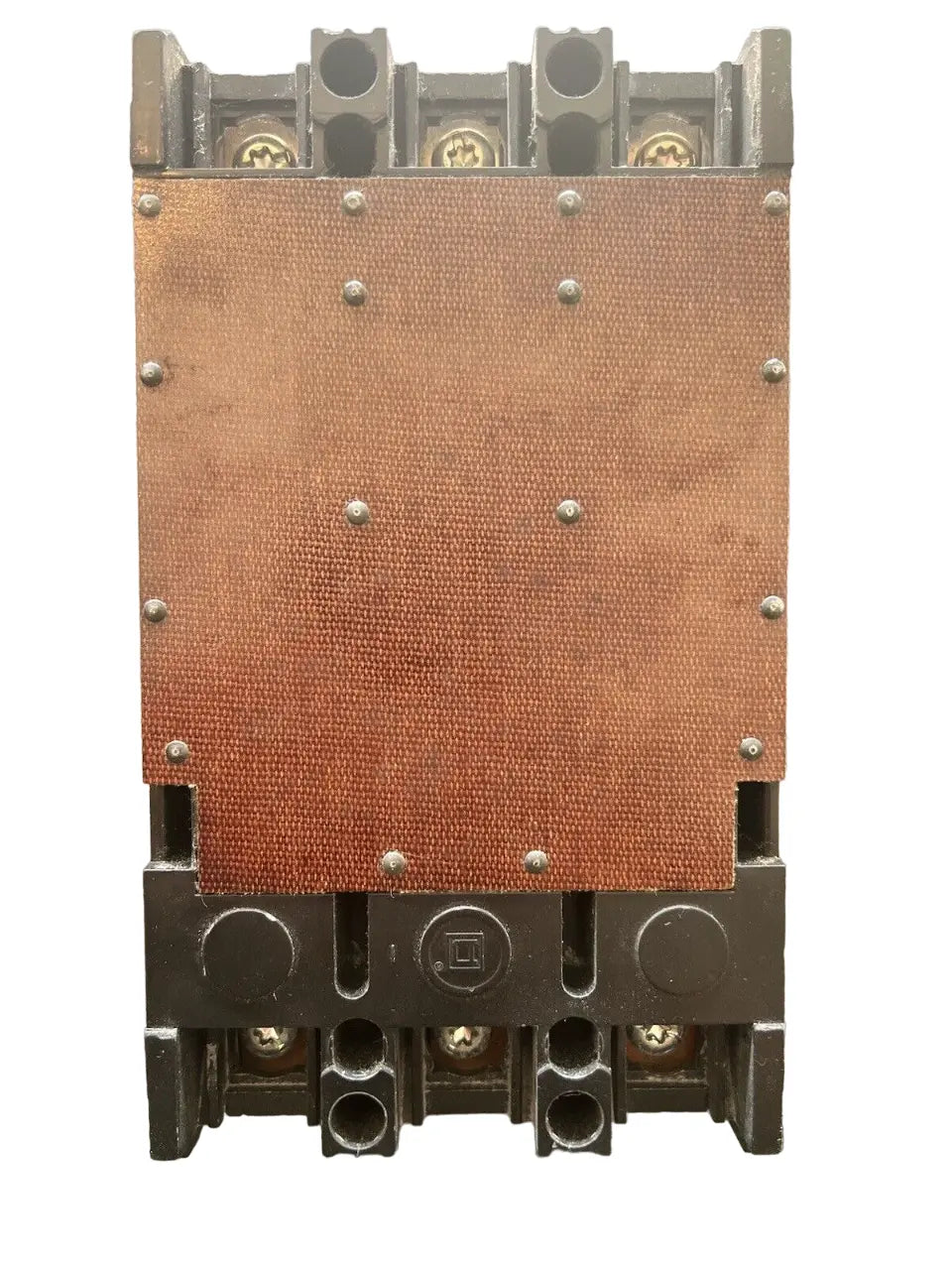

KAF36125V is a Square D 3 Pole 125 Amp thermal magnetic molded case circuit breaker designed for 600VAC applications.
This KA Series circuit breaker features a plug-on mounting type with an I-Line style plug-in connection. It provides reliable protection with long-time and instantaneous trip functions and has an interrupting rating of 25kAIC at 480V. The breaker is UL, CE, and CSA approved and rated for operation at 40°C ambient temperature.
- Brand: Square D
- Series: KA
- Amperage: 125 Amps
- Voltage: 600VAC
- Poles: 3
- Mounting Type: Plug-On
- Interrupting Rating: 25kAIC at 480V
- Connection Type: I-Line Style Plug-In
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Approvals: UL, CE, CSA
- Temperature Rating: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.
Specifications
- Part Number: KAF36125V
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : KAF Series
- Type : KAF
- Voltage : 600
- Amperage : 125
- Phase : 3
- Poles : 3
- AIC rating : 25kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : K Frame
- Protection : Thermal Magnetic
Product Data
- Weight : 9
