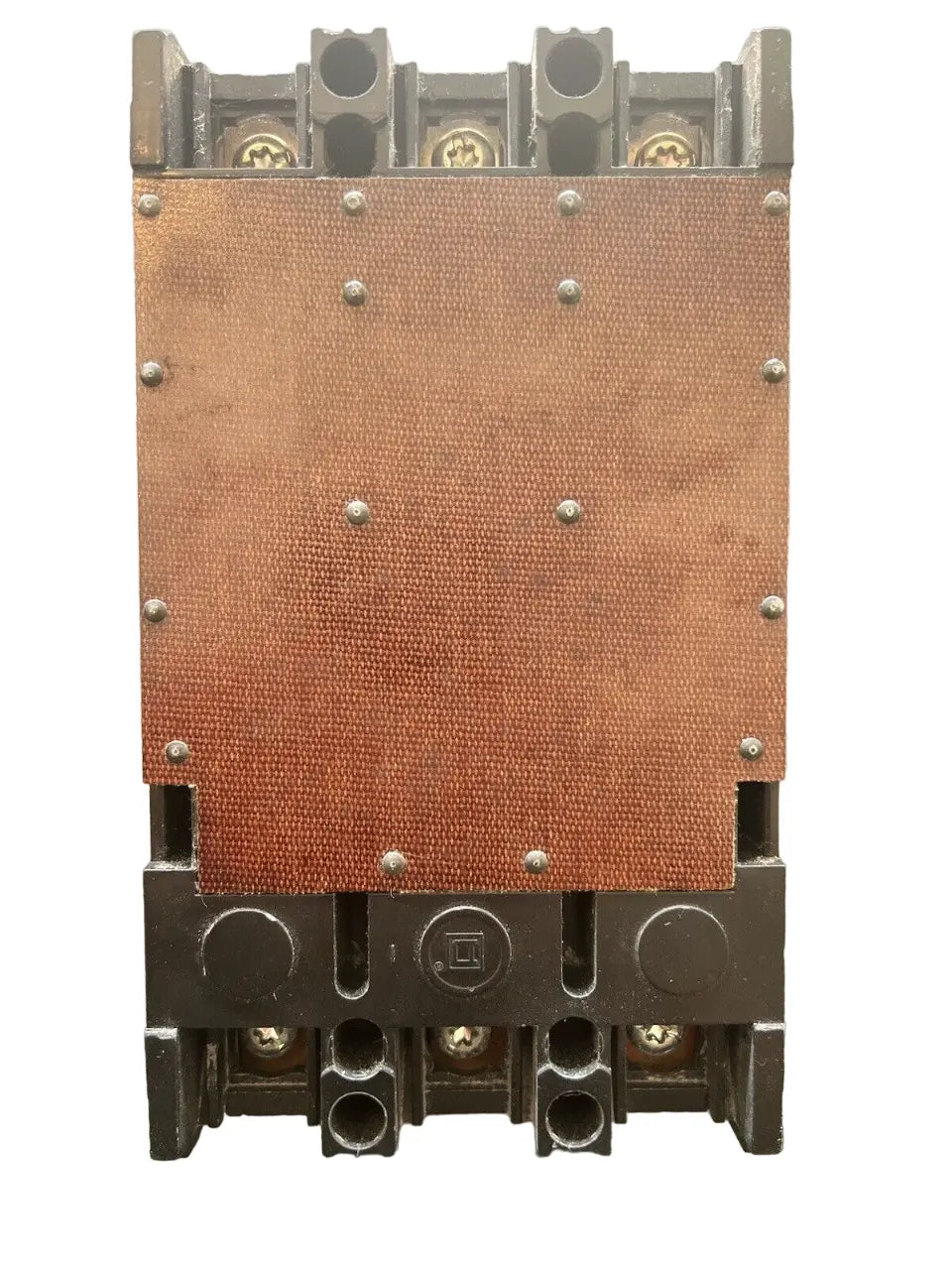

KAF36125 - Square D 125 Amp 600VAC 3 Pole KA Series Thermal Magnetic Circuit Breaker

KAF36125

This Square D KA36125 circuit breaker features a 125 Amp current rating and a 600VAC voltage rating. It has a 3-pole configuration with an I-Line style plug-on mounting type for easy installation. The breaker offers a 25kA interrupting rating at 480V and includes long-time and instantaneous trip functions for enhanced circuit protection. It is UL, CE, and CSA approved, ensuring compliance with industry safety standards.

Key Specifications
• Amperage: 125 Amps
• Voltage Rating: 600VAC
• Number of Poles: 3
• Series/Frame: KA
• Mounting Type: Plug-On (I-Line Style)
• Interrupting Rating: 25kA at 480V
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL, CE, CSA
• Phase: 3
• Temperature Rating: 40 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Additional Information

This item does not included Lugs. If you would like lugs please reach out to a sales rep with wiring specs and we can help you with the lugs part number.




Specifications

• Part Number: KAF36125
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : KAF Series
• Type : KAF
• Voltage : 600
• Amperage : 125
• Phase : 3
• Poles : 3
• AIC rating : 25kA@480V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Frame Size : K Frame
• Protection : Thermal Magnetic



Product Data

• Weight : 9
