Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
KAC-400

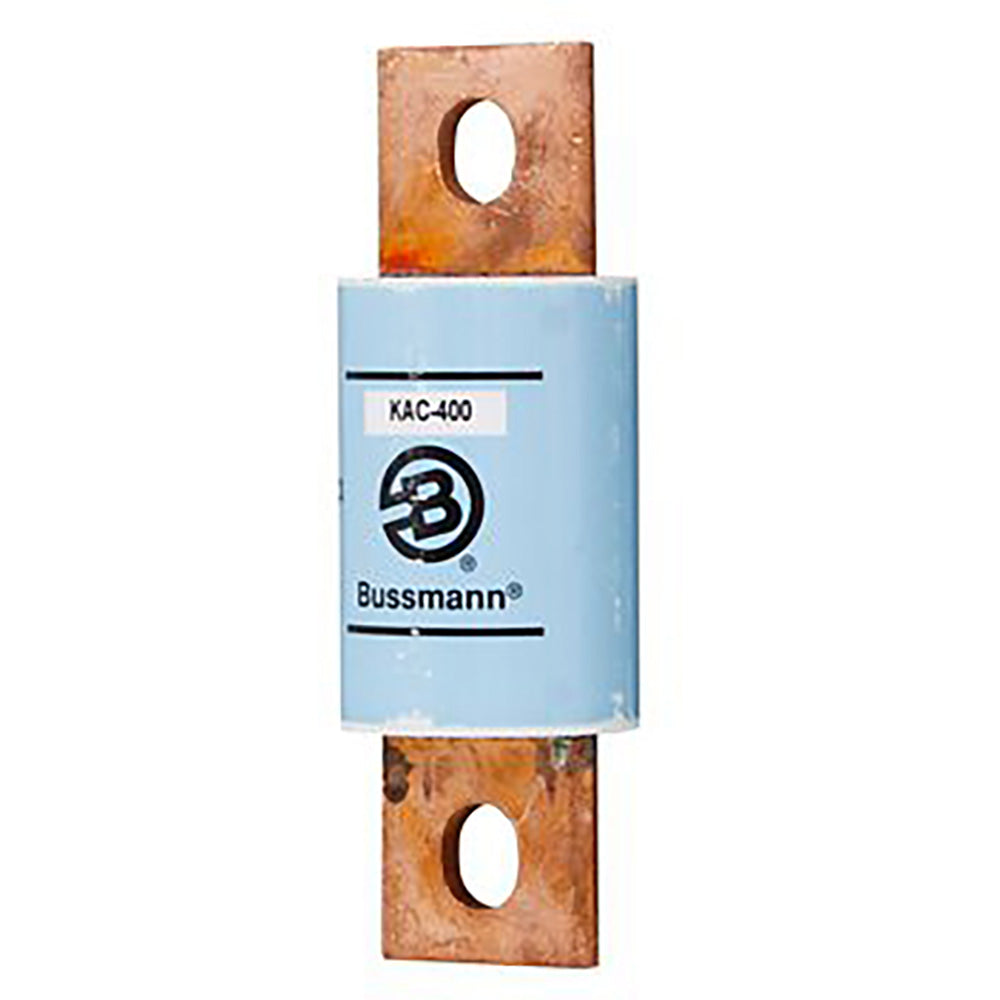

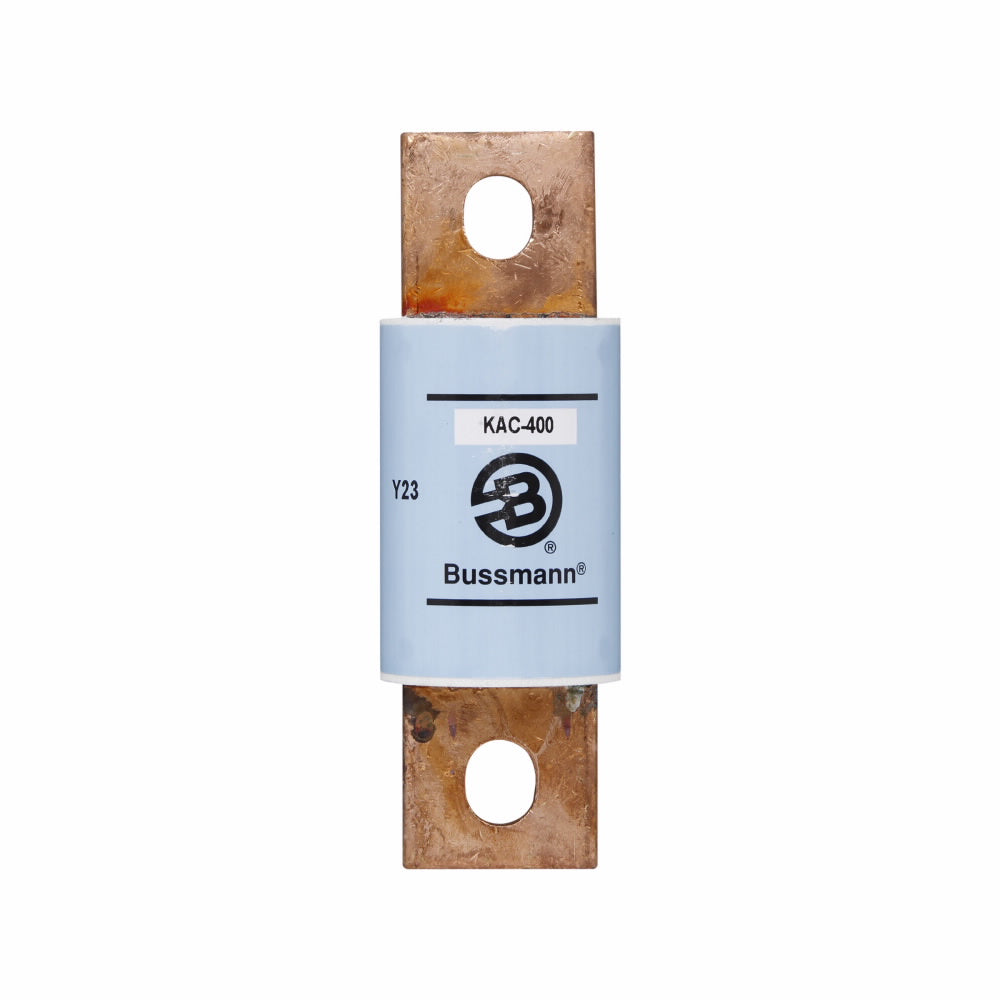

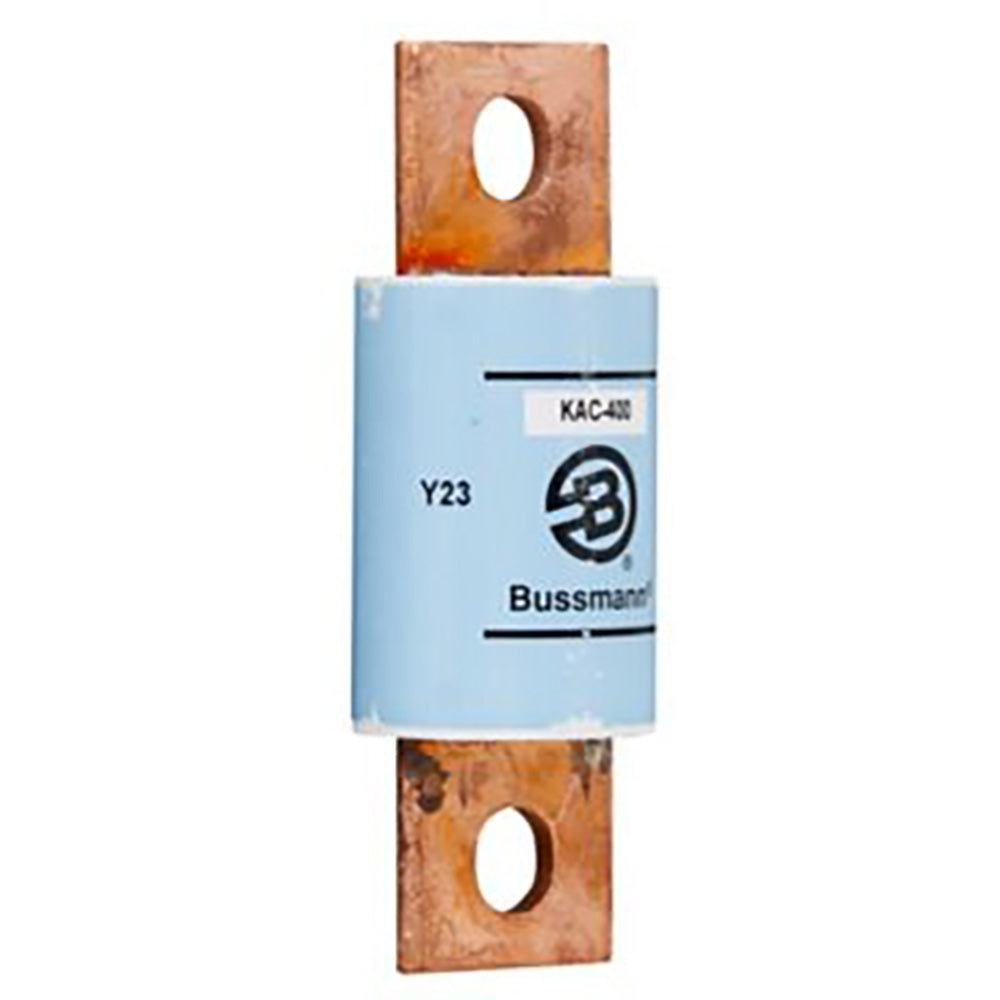

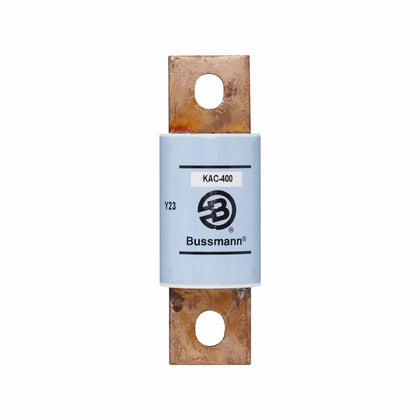

KAC-400 is an Eaton Bussmann series high speed rectifier fuse designed for semiconductor protection. KAC-400 features a 400 ampere rating, 600 volts AC voltage rating, and a 200 kA interrupting rating. It has blade ends with stud mounting for secure installation and is non-indicating.
- Amperage: 400A
- Voltage: 600V AC
- Interrupt Rating: 200,000 AIC (200 kAIC)
- Mounting Type: Stud
- End Type: Blade end x blade end
- Fuse Type: High speed semiconductor fuse
- Series: Bussmann Tron KAC
- Non-indicating design
- Physical Size: Approximately 1.625" diameter x 6.182" length
- Application: Rectifier protection
Specifications
- Part Number: KAC-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : KAC Series
- Type : KAC
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Connection : Stud
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 051712474009
- GTIN : 00051712474009
- Country of Origin : Mexico
- Dimensions : 6.182 in x 6.1 in x 2.1 in (Length/Depth x Height x Width)
- Weight : 1.98
