Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
KA3225F

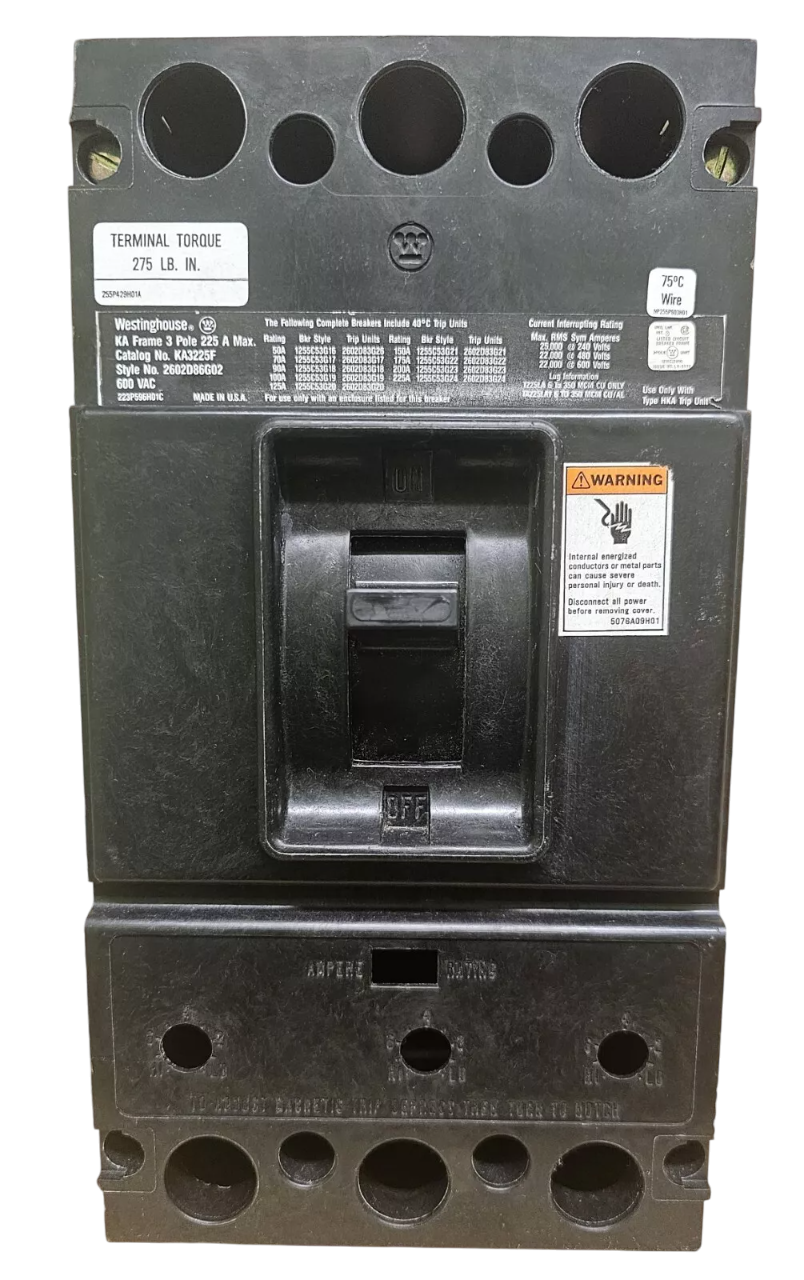

KA3225F is a 225 Amp, 3 Pole Molded Case Circuit Breaker from Cutler Hammer Westinghouse designed for 600 Volt applications with KA frame and bolt-on mounting.This KA3225F breaker features a thermal magnetic non-interchangeable trip unit rated for 225 Amps at 40°C, 3 poles, and a maximum voltage of 600VAC at 50/60Hz. It has an interrupting rating of 25kA at 240VAC and 22kA at both 480VAC and 600VAC. The breaker is bolt-on type without terminals standard and complies with industry standards for reliable circuit protection.
- Key Specifications
- Manufacturer: Cutler Hammer / Westinghouse
- Frame Type: KA
- Amperage: 225A
- Poles: 3
- Voltage Rating: 600VAC
- Interrupting Capacity: 25kA @ 240VAC, 22kA @ 480VAC, 22kA @ 600VAC
- Trip Unit: Thermal Magnetic Non-Interchangeable
- Mounting Type: Bolt-On
- Standard Lug Type: Without Terminals
- Frequency: 50/60 Hz
- Part Number: KA3225F
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : KA Series
- Type : KA
- Voltage : 600
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 22kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- Weight : 19
Additional Information
This item is Frame only as definded by the part number. That means it is only the circuit breaker frame, and no lugs or trip unit is included with the frame.
