Product Info
- Manufacturer:Burndy
Description
KA2U

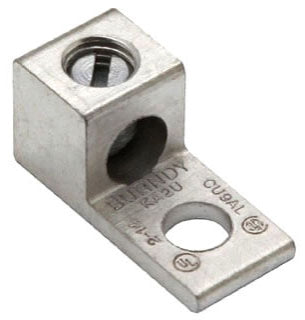

KA2U is an aluminum universal terminal designed for use with 14-2 AWG stranded aluminum and copper conductors featuring a single hole and 1/4 inch stud size.
This dual rated panelboard lug is constructed from high strength extruded aluminum alloy with electro tin plating to ensure low contact resistance and durability. It includes one slot screw for secure bolted connection and is rated for a temperature of 194°F. The terminal is RoHS compliant and recommended installation torque is 50 in-lbs.
- Key Specifications
- Material: Aluminum alloy with steel hardware
- Conductor Range: 14-2 AWG stranded copper/aluminum
- Number of Holes: 1
- Stud Size: 1/4 inch
- Screw Type: Slot
- Temperature Rating: 194°F
- Installation Torque: 50 in-lbs recommended
- Electro Tin Plated for low contact resistance
- Dual Rated for Aluminum and Copper conductors
- EU RoHS Compliant
- Dimensions: Height 0.56 in, Hole Size 0.27 in
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: KA2U
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 781810370056
- GTIN : 781810370056
- Country of Origin : Mexico
- Dimensions : 0.56 in x 1.16 in x
- Weight : 0.3
- Certification : CSA Certified, UL Listed
