Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
JXD22B350

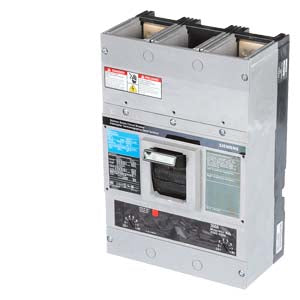

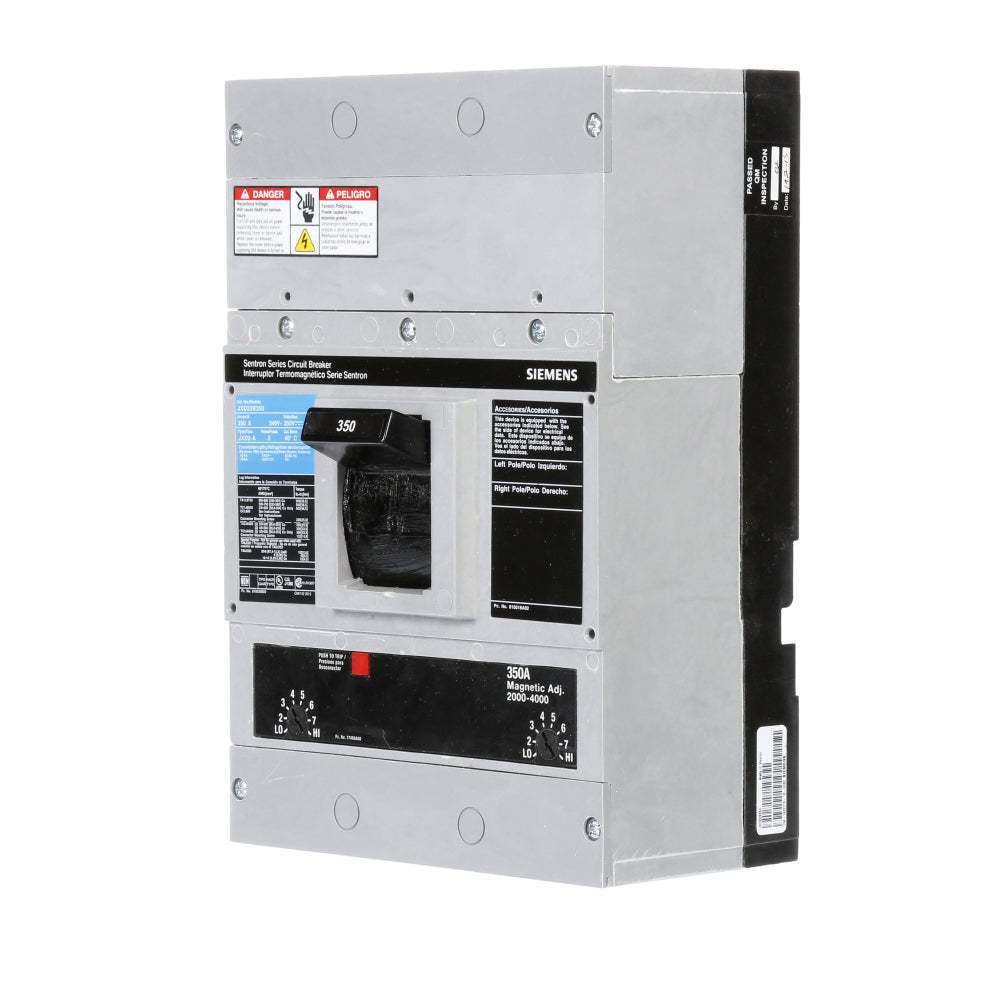

JXD22B350 is a Siemens 2-pole molded case circuit breaker with a 350 amp rating and 240 volt capacity designed for reliable power distribution protection.This Siemens JXD22B350 breaker features a JD frame with a standard interrupting capacity of 65kA at 240VAC, a non-interchangeable trip unit, and bolt-on mounting type. It meets UL 489 and IEC 60947-2 certification standards and is rated for operation at 40 degrees Celsius.
- Key Specifications
- Amperage: 350A
- Voltage: 240VAC
- Poles: 2
- Frame Type: JD Frame
- Interrupt Rating: 65kA at 240V
- Trip Unit: Non-Interchangeable
- Mounting Type: Bolt-On
- Series: Sentron
- Standards: UL 489, IEC 60947-2
- Operating Temperature: 40¡C
Additional Information
Lugs are not included
Specifications
- Part Number: JXD22B350
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : JXD
- Voltage : 240
- Amperage : 350
- Phase : 1
- Poles : 2
- AIC rating : 65kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 400A/JD
- Temp Rating : -13¡F-158¡F (-25¡C - 70¡C)
- MCM Size : 500 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
Product Data
- UPC : 783643212909
- GTIN : 00783643212909
- Country of Origin : Mexico
- Dimensions : 8.661 x 12.992 x 6.701
- Weight : 15.201
- Panel Type : SB Switchboards Without Lugs, Sentron Panelboards
- Standards : RoHS
- Certification : UL, IEC
