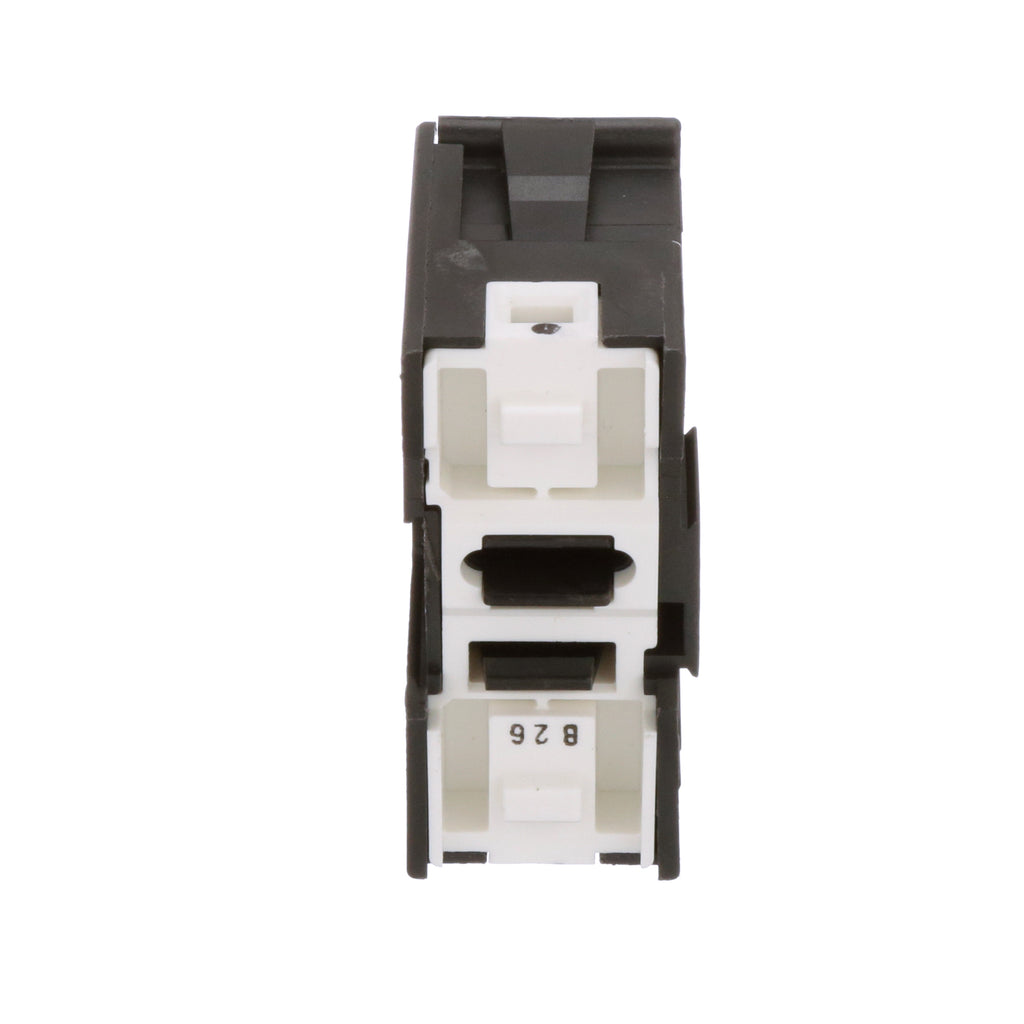

JTN60060 - Eaton Bussmann Class J 60A 600V Finger-Safe Fuse Holder with Neon Indicator, 1 Pole, 35mm DIN Rail Mount

JTN60060

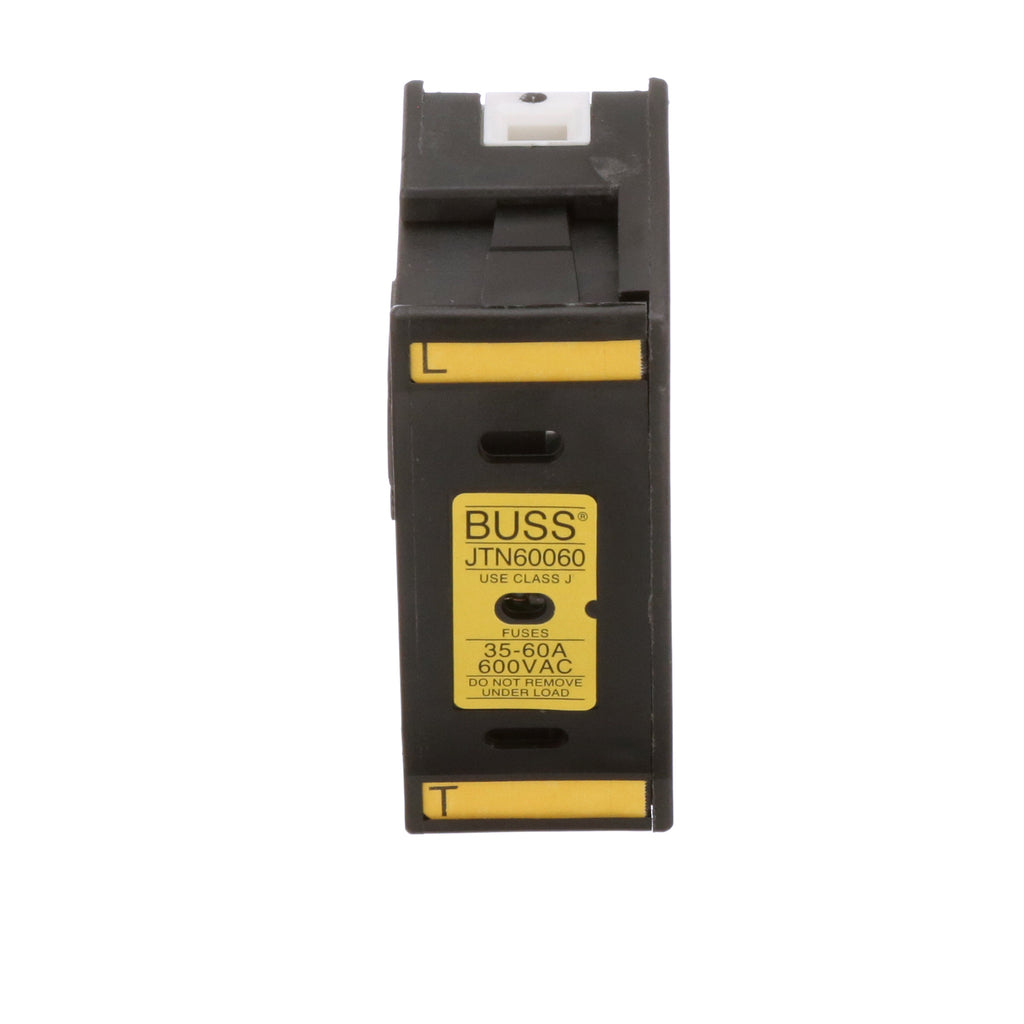

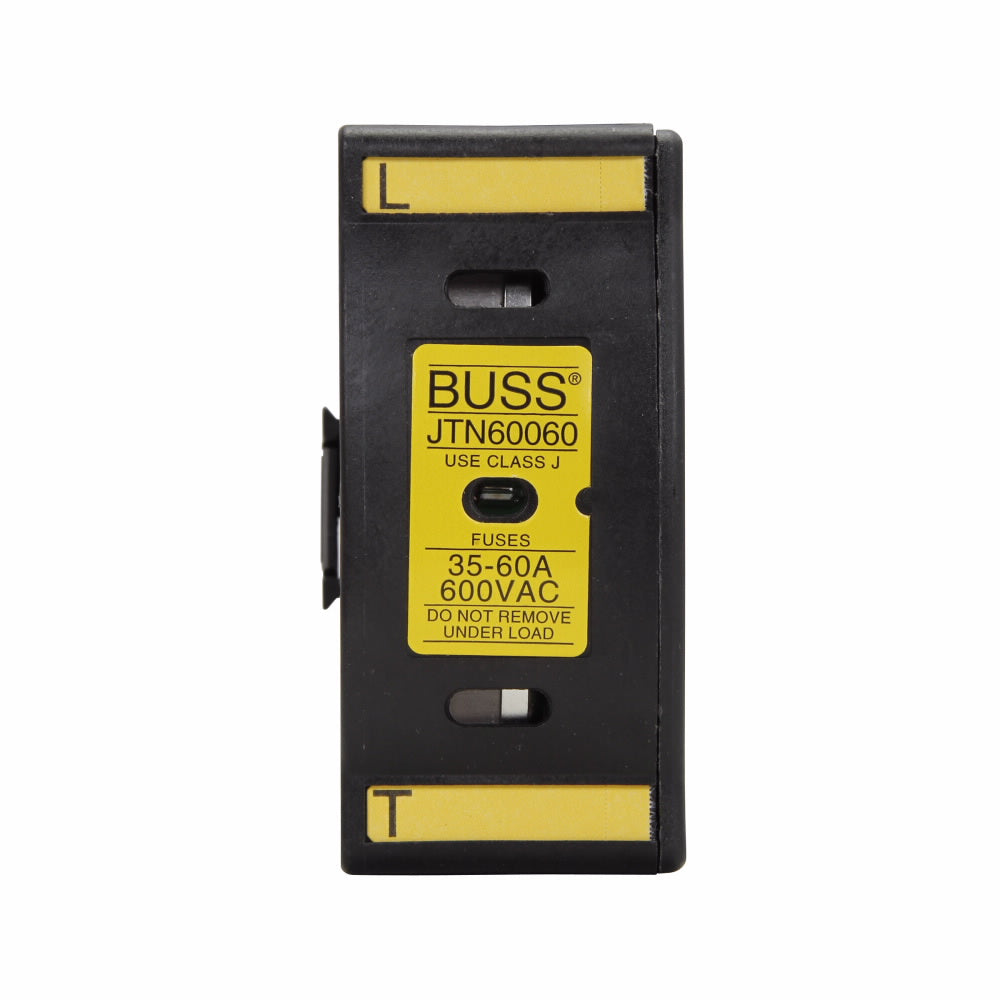

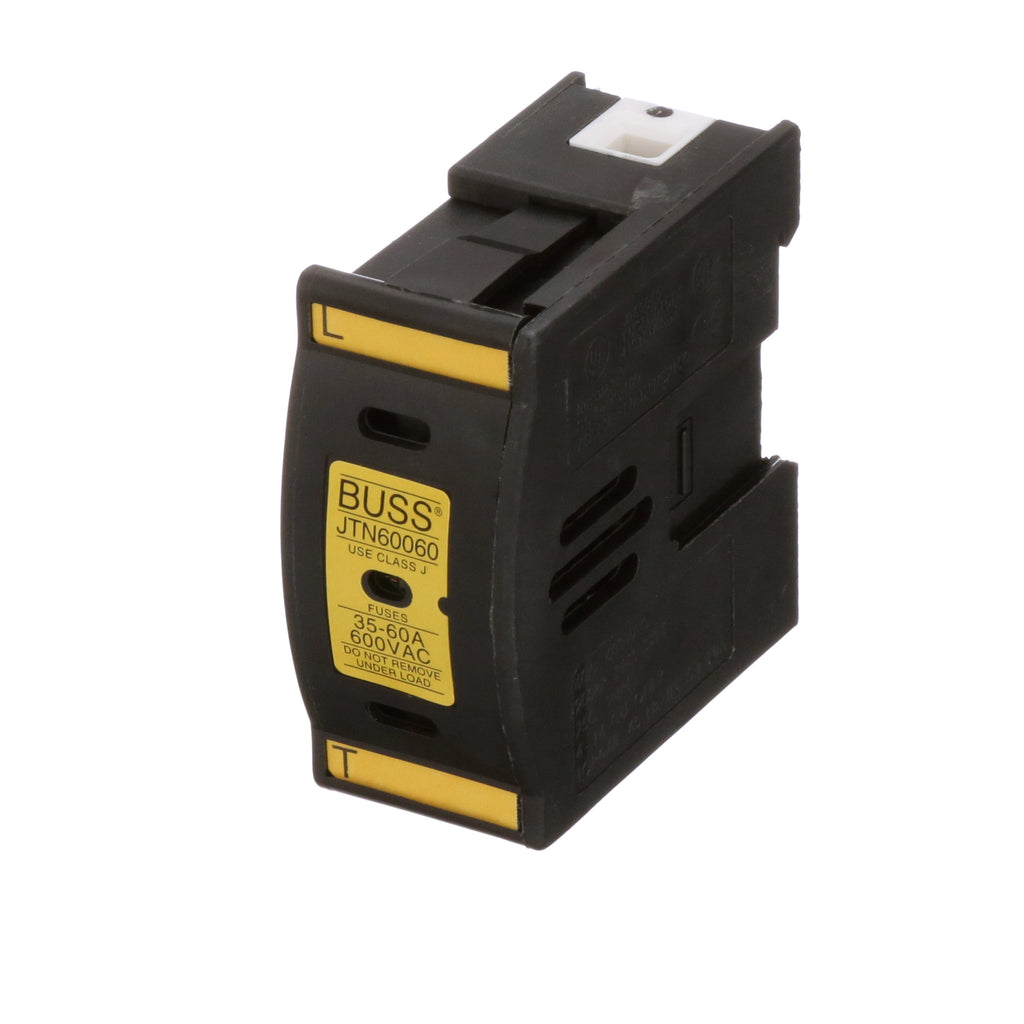

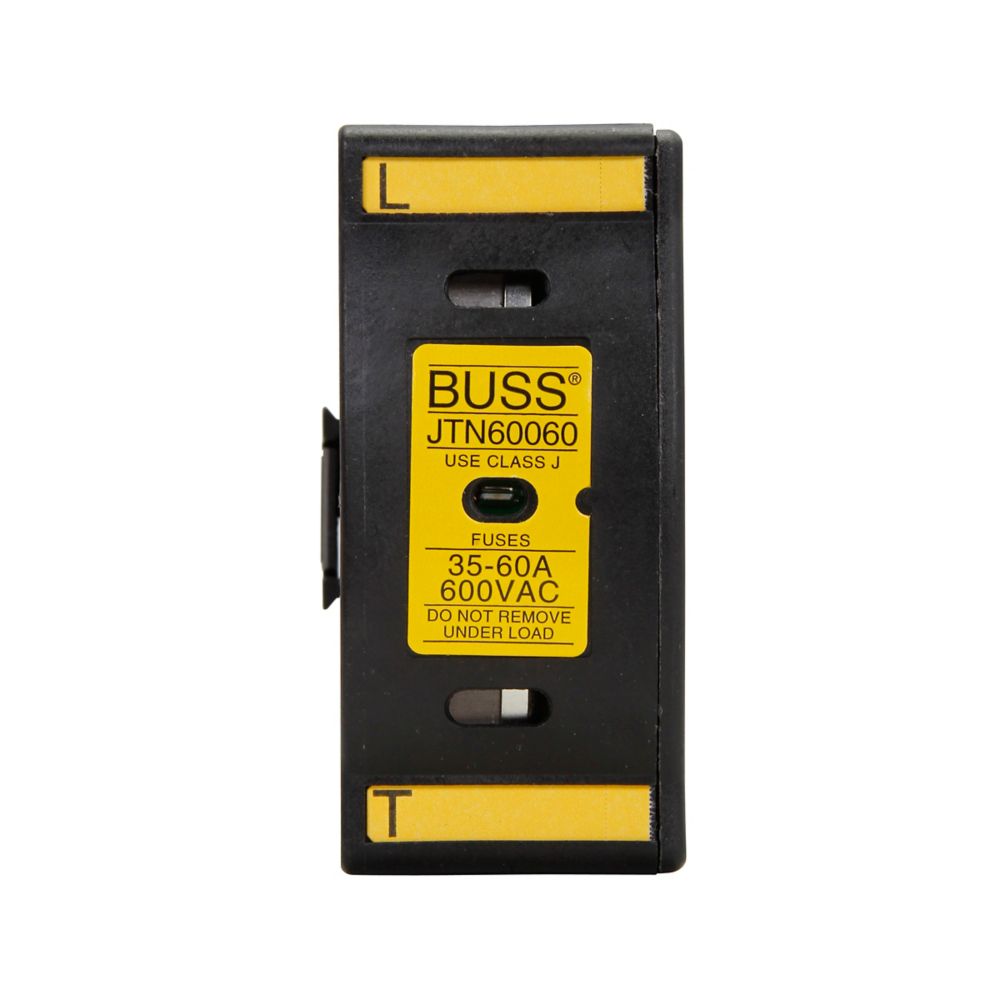

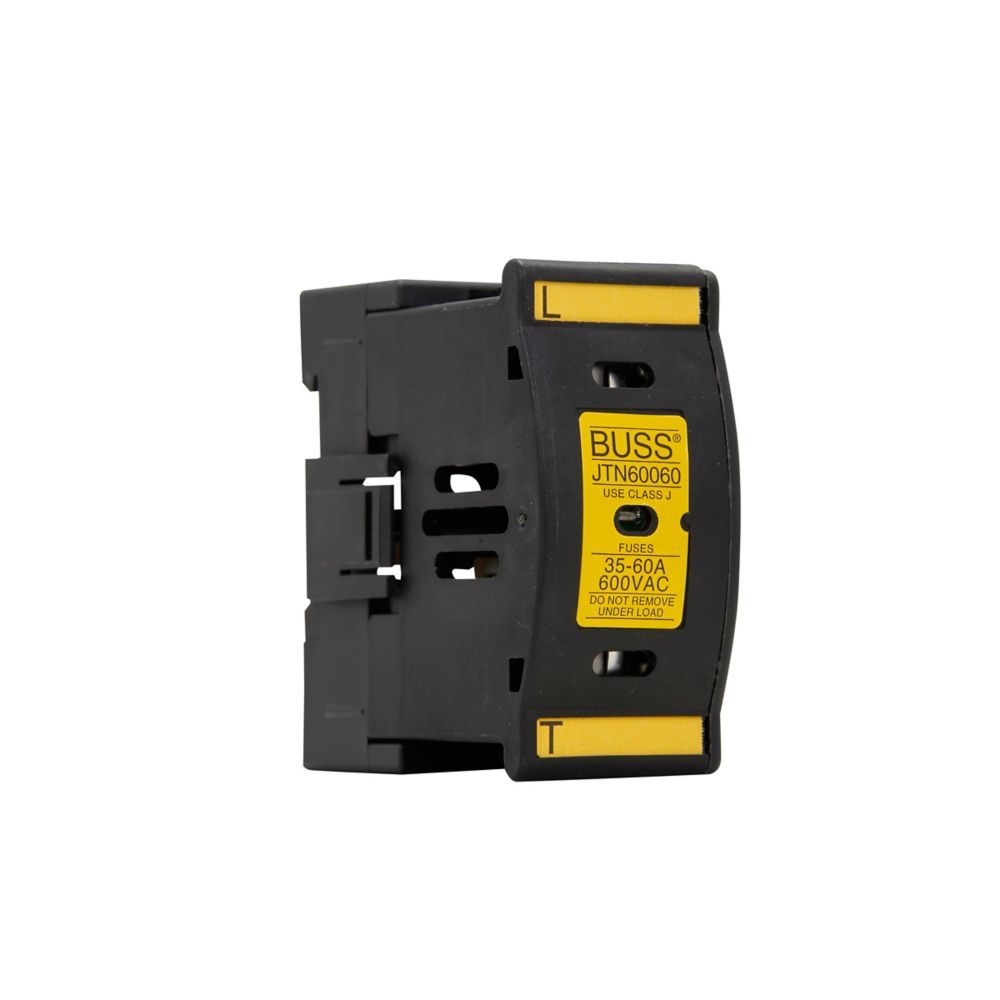

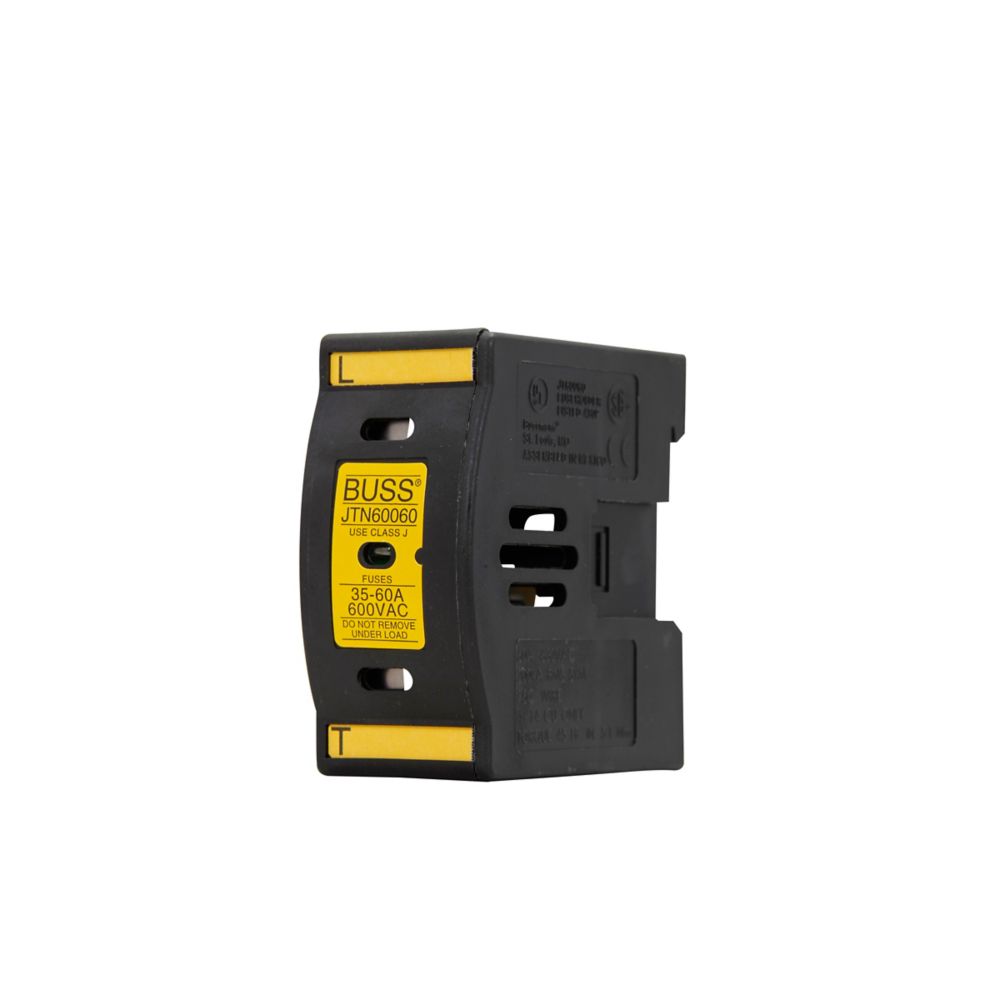

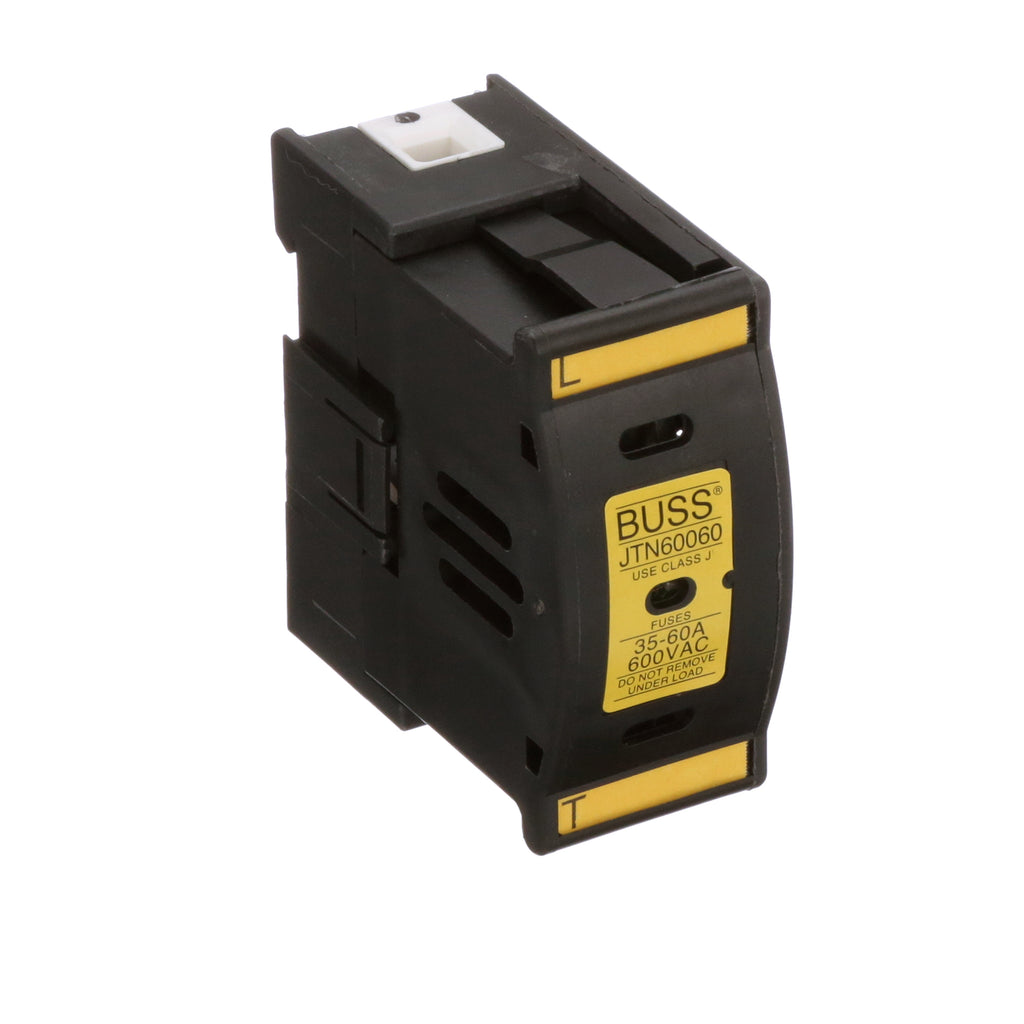

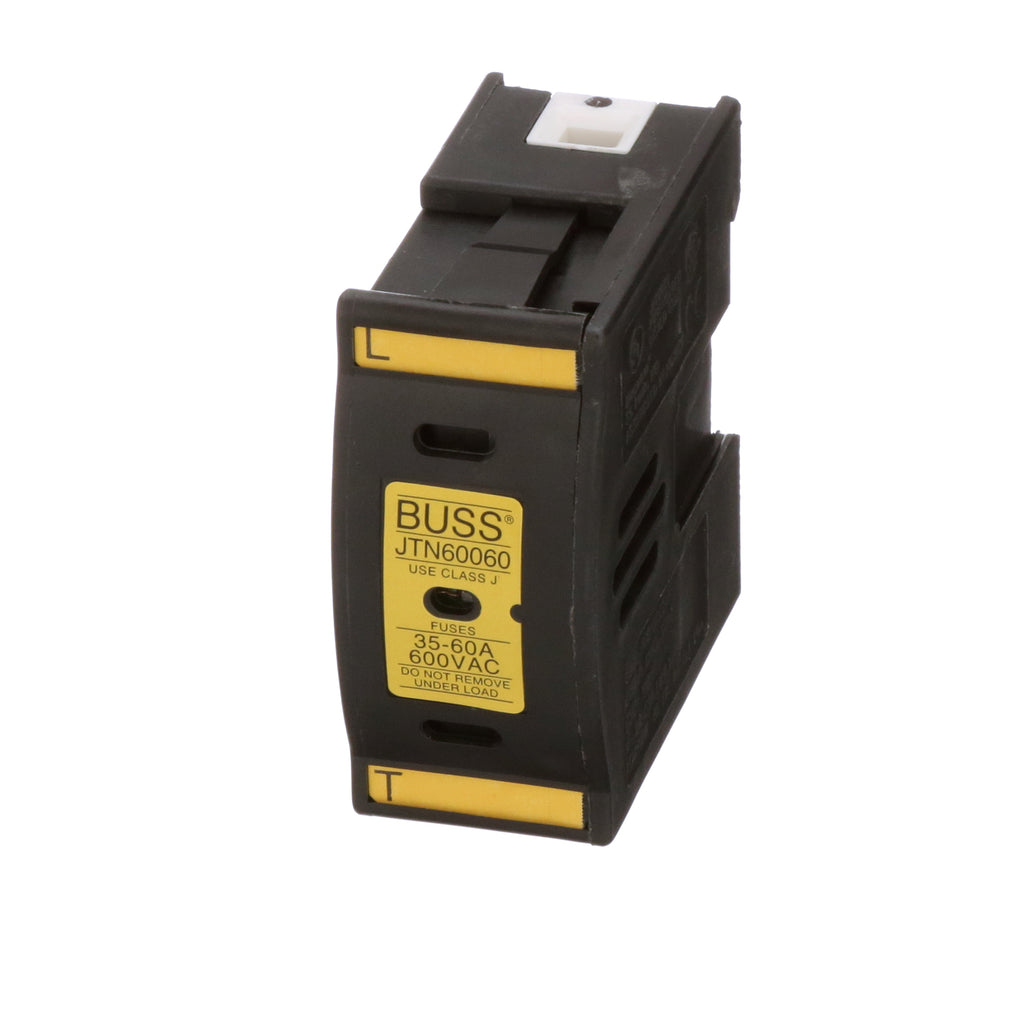

JTN60060 is a finger-safe fuse holder from Eaton Bussmann designed for Class J fuses with a 60 amp rating and 600 volt capacity.This fuse holder features a neon lamp indicator for open fuse status, single-pole design, and rapid 35 mm DIN rail mounting. It supports 14 to 4 AWG copper wire connections with tin-plated copper alloy terminals and is constructed from thermoplastic material rated for 75°C operation. The holder is gangable, IP20 finger-safe, and certified to UL 4248, CSA C22.2 No. 4248, and CE standards. It has a short circuit current rating of up to 300 kA with Bussmann LPJ series fuses.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 600 V AC/DC
• Poles: 1
• Mounting Type: 35 mm DIN rail
• Fuse Class: J (Class J)
• Indicator: Neon lamp for fuse open status
• Wire Range: 14 to 4 AWG copper
• Terminal Material: Tin-plated copper alloy
• Operating Temperature: 75°C max
• Short Circuit Current Rating: 300 kA RMS Symmetrical (with LPJ fuses)
• Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
• Construction: Thermoplastic, UL 94 V-0 flammability rated

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTN60060
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Fuse Block
• Family : Safety J
• Type : JTN600
• Voltage : 600
• Amperage : 60
• Mounting : Box Lug Terminals

Product Data

• UPC : 051712561136
• GTIN : 00051712561136
• Country of Origin : Mexico
• Dimensions : 3.6 in x 3.1 in x 1.52 in (Length/Depth x Height x Width)
• Weight : 0.438
