Description
JTN60030

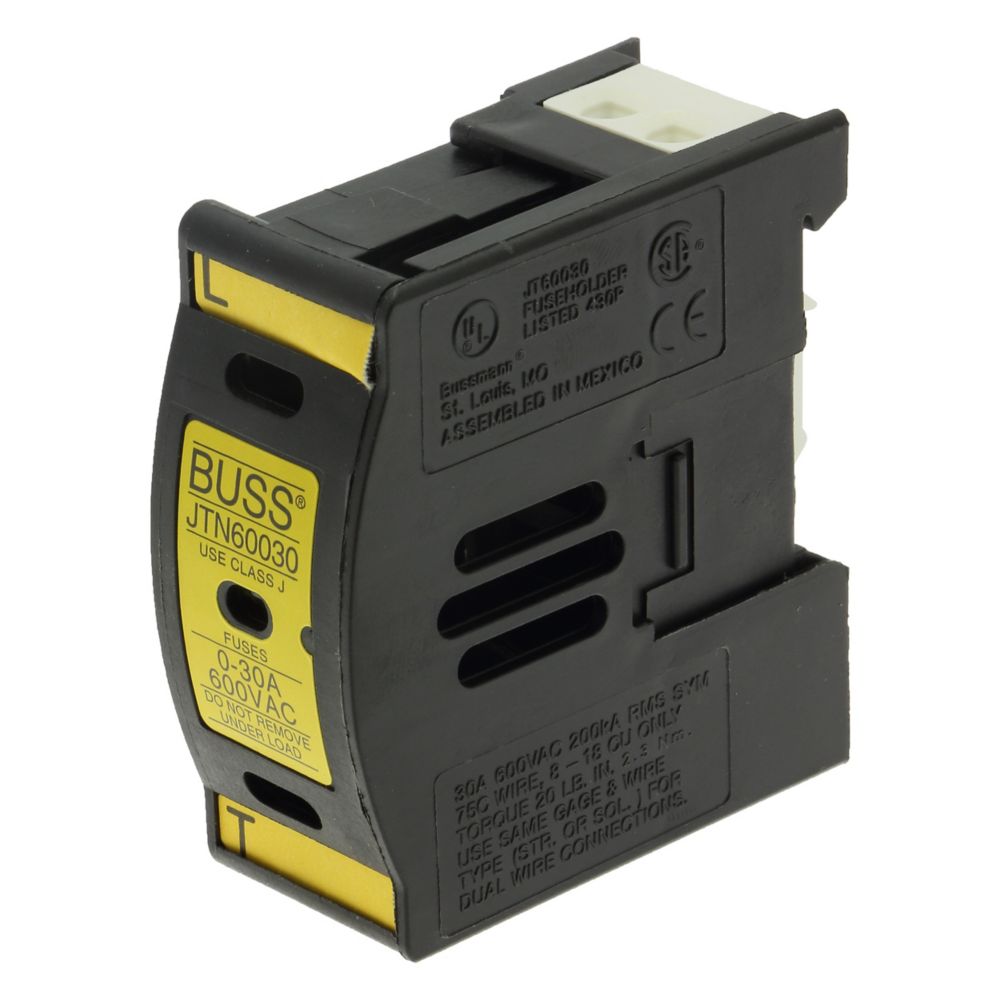

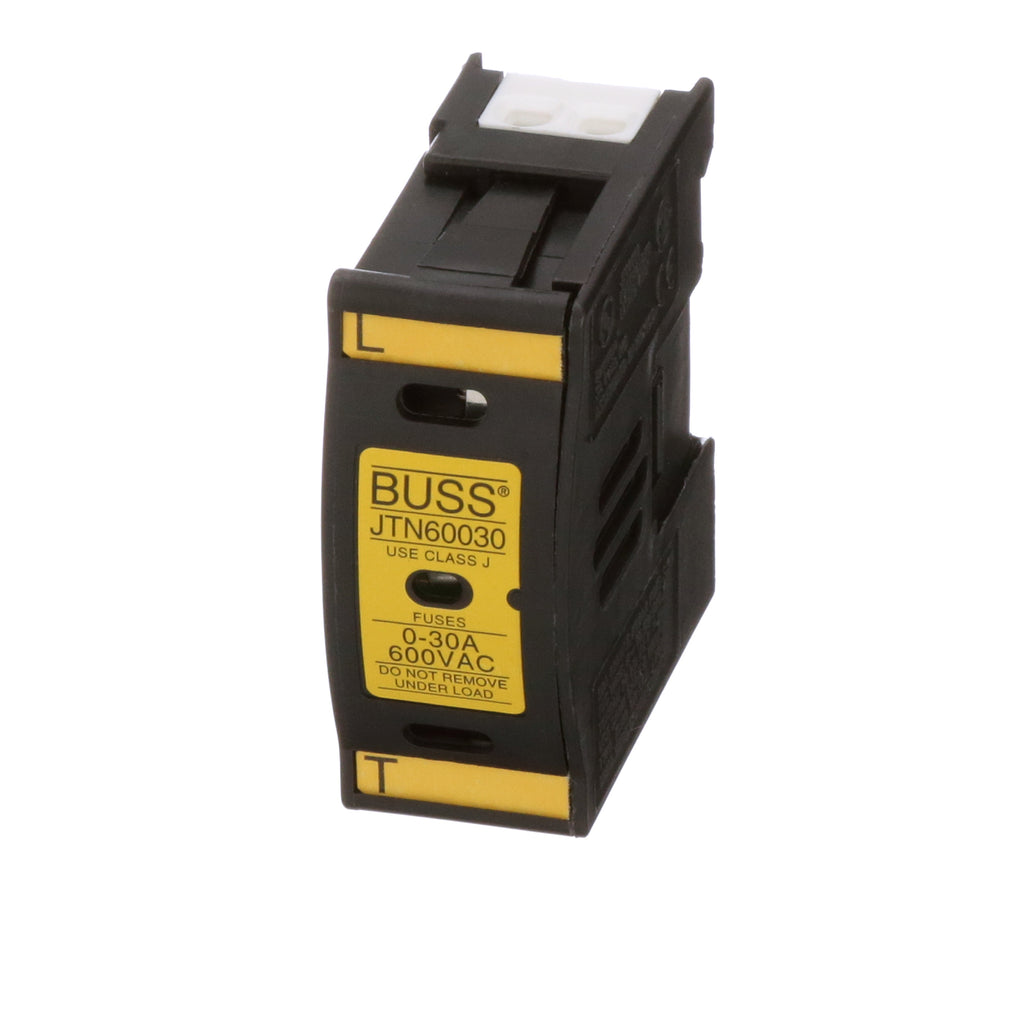

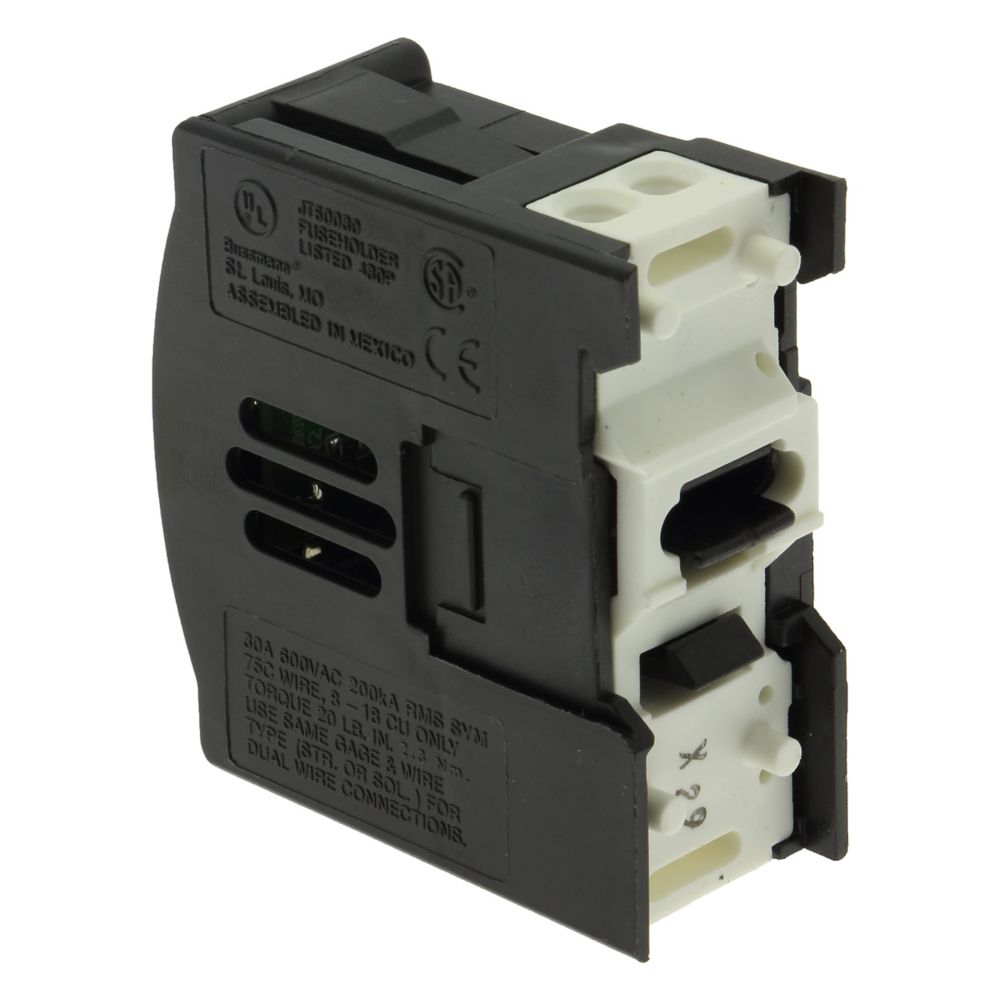

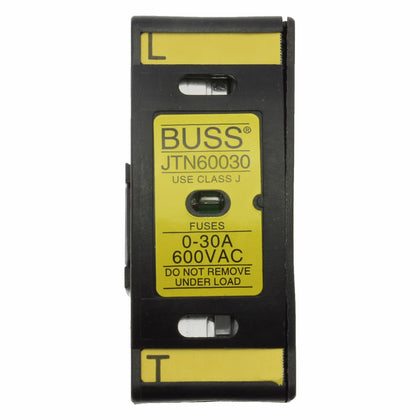

JTN60030 is a finger-safe, single-pole fuse holder from Eaton Bussmann Series JT, designed for 30A Class J fuses and rated for 600V AC/DC.
This industrial-grade fuse holder features a tough polyamide body, snap-on 35mm DIN rail mounting, and an indicator for quick visual fuse status. It supports 18 to 8 AWG tin-plated copper alloy terminals and is suitable for controls, process controls, and small HP VFDs. The JTN60030 is RoHS compliant, CE marked, UL recognized, and CSA certified for reliable performance in demanding environments.
Key Specifications
- Amperage: 30A
- Voltage: 600V AC/DC
- Poles: 1
- Mounting Type: 35mm DIN rail (snap-on)
- Interrupt Rating: Not specified in available data
- Series/Frame: Bussmann Series JT
- Trip Unit: Not applicable (fuse holder)
- Certifications: RoHS, CE, UL, CSA
- Terminal Type: 18 to 8 AWG tin-plated copper alloy
- Body Material: Thermoplastic (polyamide)
- Operating Temperature: -40°C to 75°C
- Indicator: Yes (fuse status)
- Fuse Type: Class J (10mm x 38mm)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: JTN60030
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Fuse Clip
- Family : Safety J
- Type : JTN600
- Voltage : 600
- Amperage : 30
- Temp Rating : -13–158 °F (-25–70 °C)
- Mounting : Box Lug Terminals
Product Data
- UPC : 051712557016
- GTIN : 00051712557016
- Country of Origin : Mexico
- Dimensions : 1.13 in x 2.71 in x 2.18 in (Length/Depth x Height x Width)
- Weight : 0.21
- Temp Rating : -13–158 °F (-25–70 °C)
