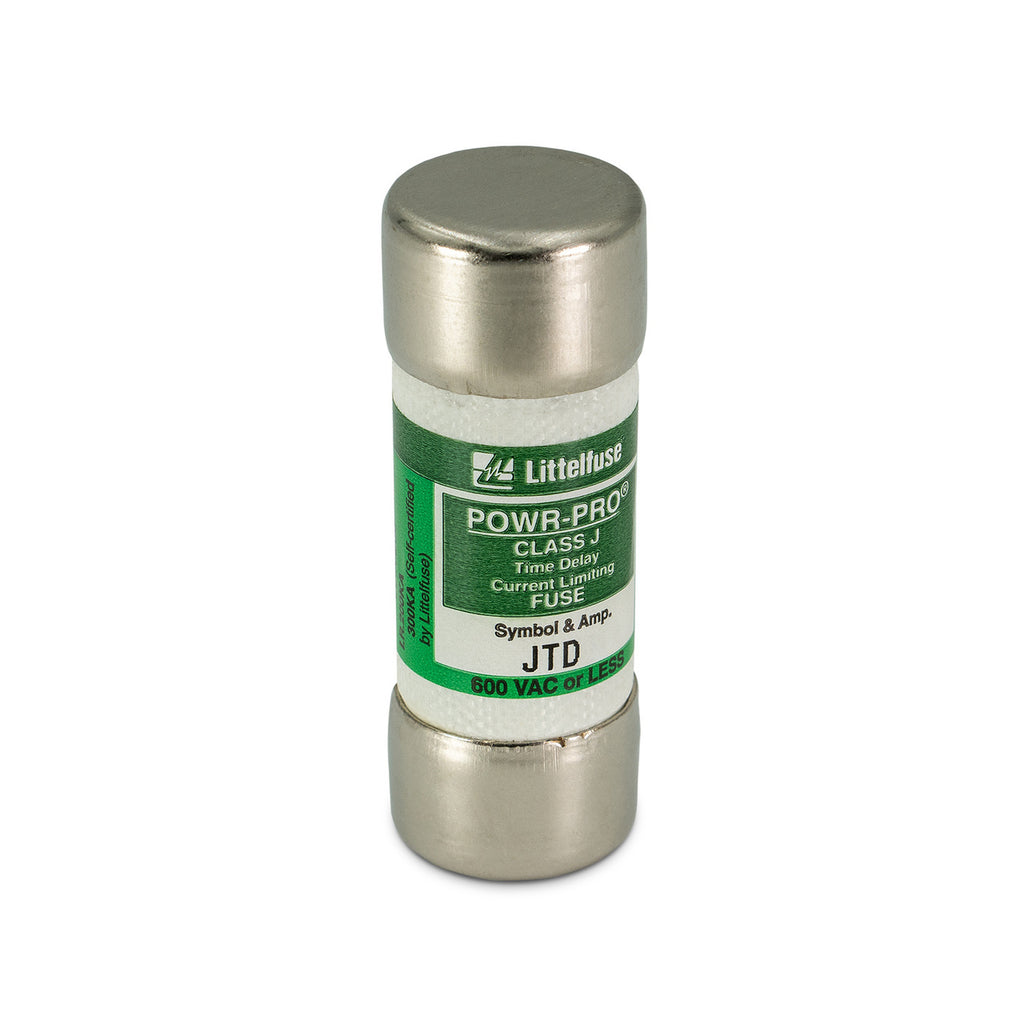

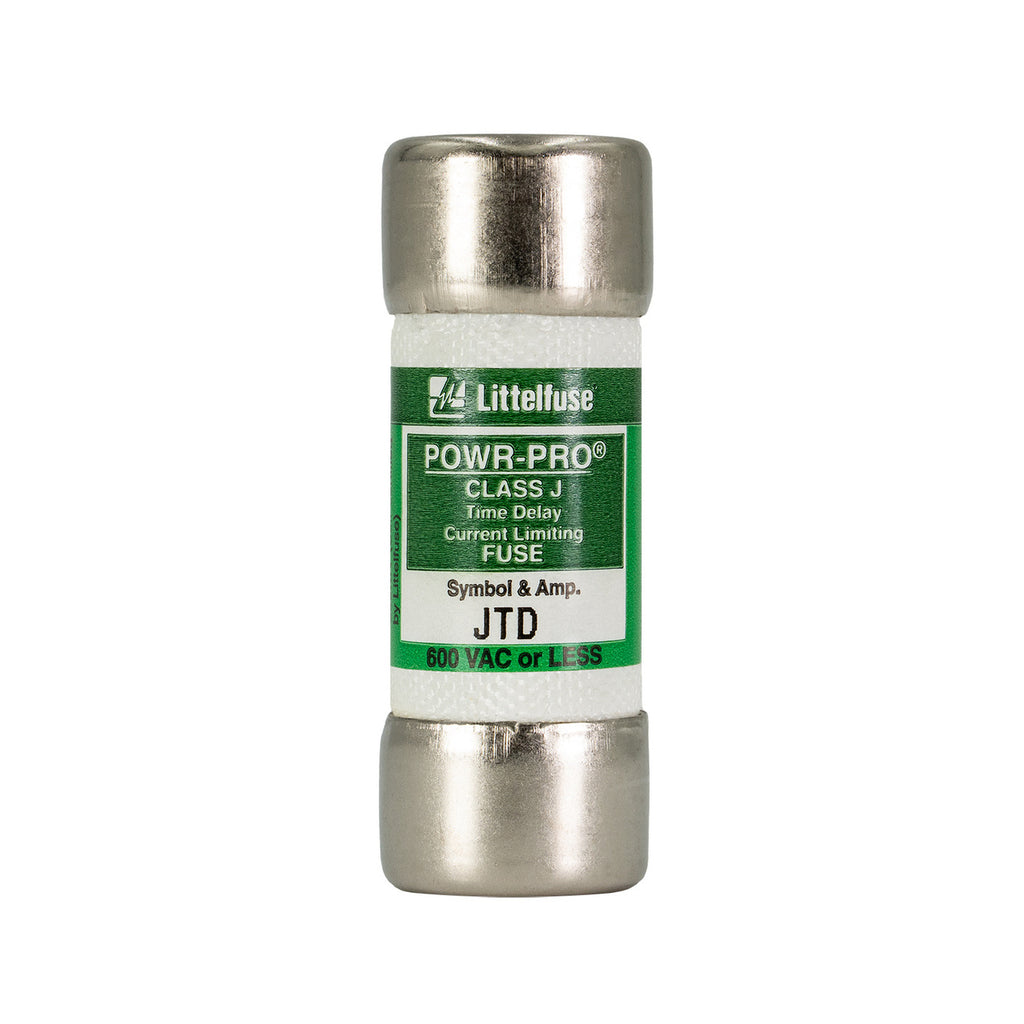

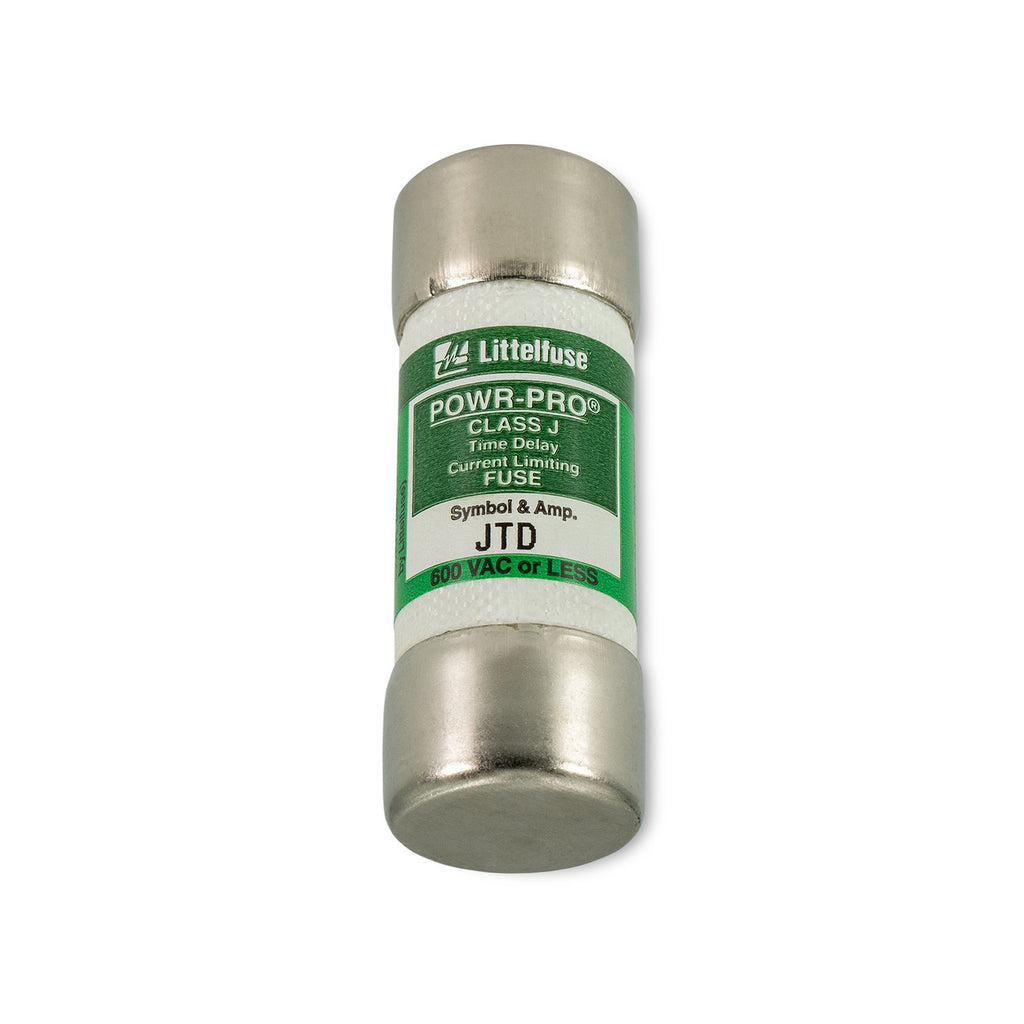

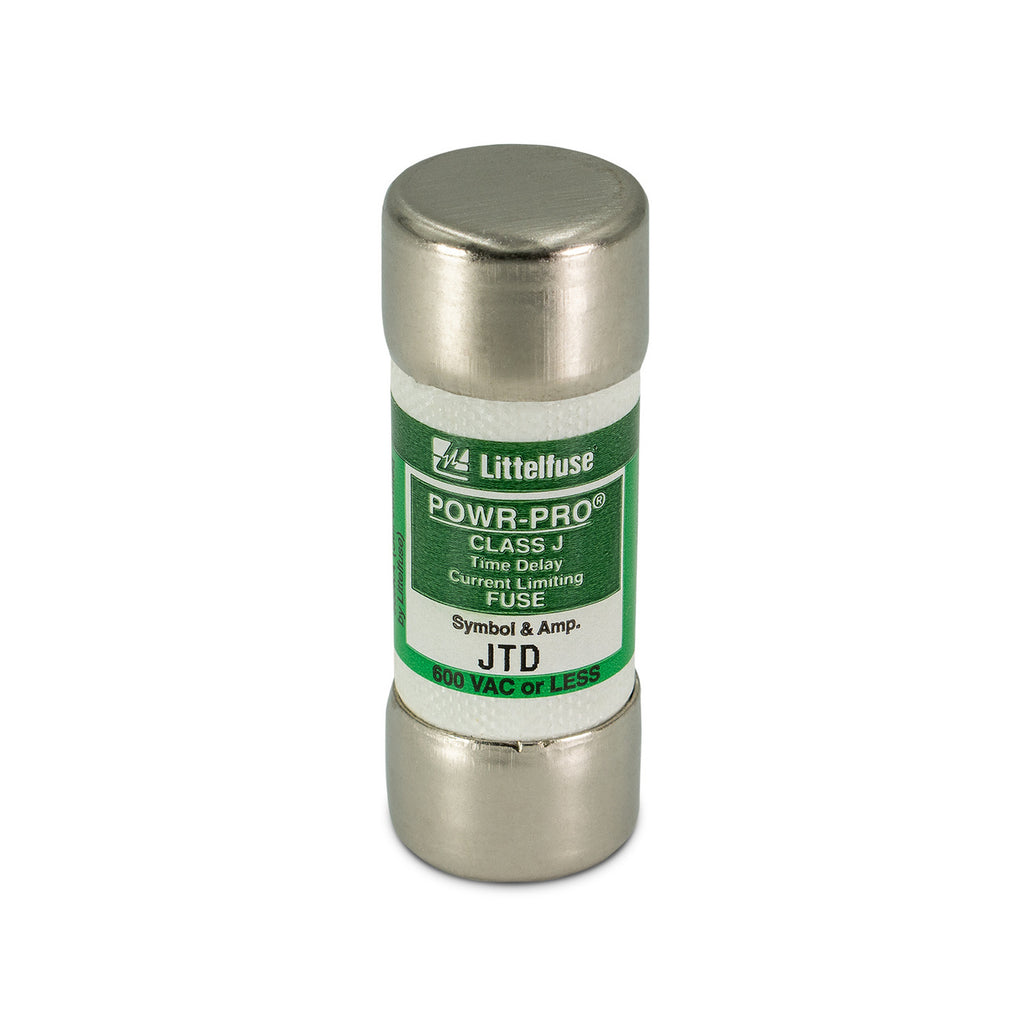

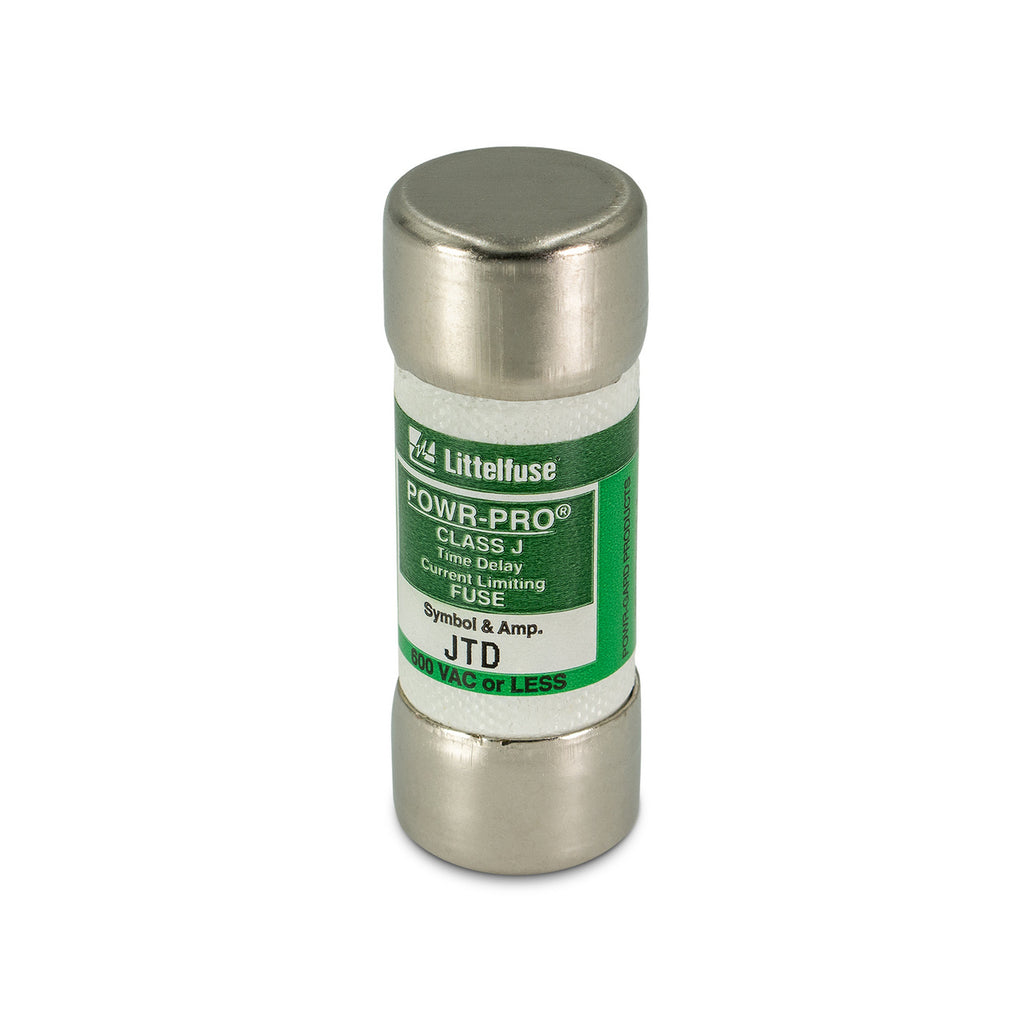

JTD80 - Littelfuse 80A 600V Class J Time Delay Fuse Dual Element

JTD80

JTD80 is an 80 Amp, 600 Volt AC Class J time delay fuse from Littelfuse designed for reliable circuit protection.This fuse features a dual-element construction providing time-delay protection ideal for circuits with high inrush currents. It offers current-limiting capabilities to reduce damage from short-circuit currents and is UL listed and CSA certified. The JTD80 fuse has a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, ensuring robust performance in industrial and commercial applications. It is designed for use with fuse blocks, clips, or holders and provides IEC Type 2 "No Damage" protection for motor circuit components.

Key Specifications
• Amperage: 80 Amps
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Class: Class J
• Time Delay (Slo-Blo) Dual Element
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Current Limiting
• Physical Size: 1 1/8" x 4 5/8"
• Mounting Type: Fuse Block / Clip / Holder
• Certifications: UL Listed, CSA Certified
• IEC Type 2 Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JTD80
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Pro
• Type : JTD
• Voltage : 600
• Amperage : 80
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 1.13
• Class Rating : J
• Barrels : 1



Product Data

• UPC : 7945820222
• GTIN : 00079458202222
• Weight : 5.19
