JTD70ID - Littelfuse 70A 600V Class J Time Delay Fuse with Indicator

JTD70ID

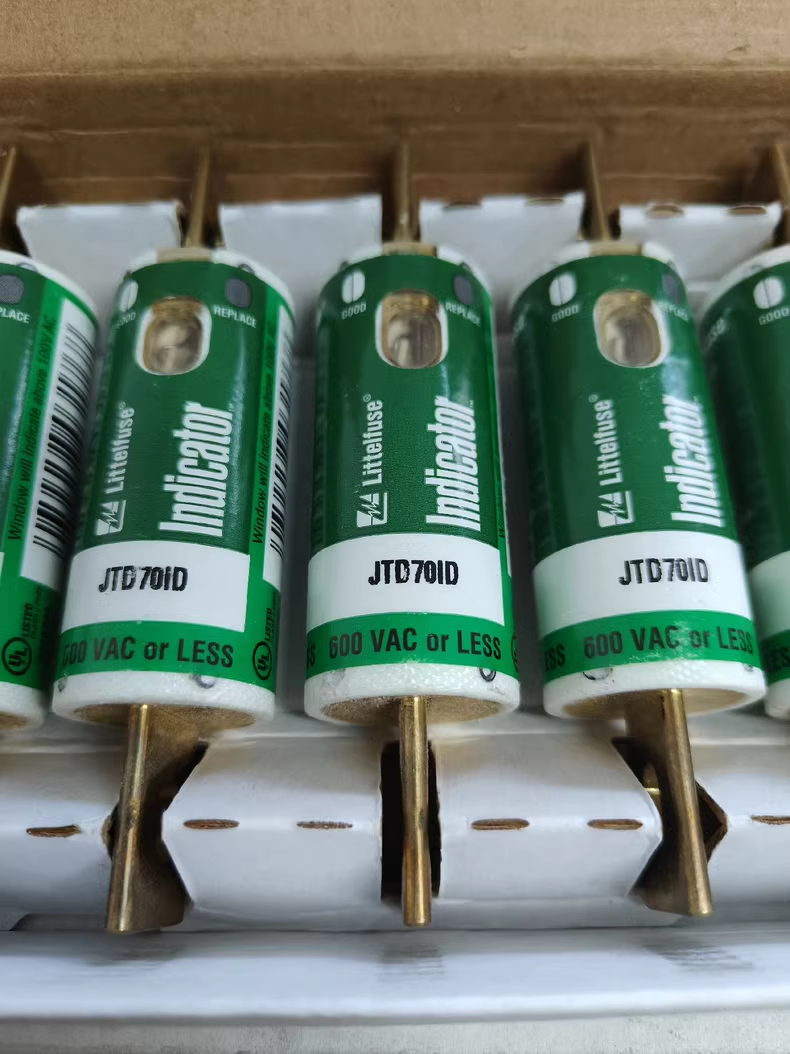

JTD70ID is a Littelfuse 70 Amp, 600 Volt AC Class J time delay fuse with an indicator for status monitoring.This dual-element, current-limiting fuse features POWR-PRO technology for superior protection and reduced nuisance openings. It is UL Listed and CSA Certified, designed for motor control centers, transformers, and general purpose circuits. The fuse has a 200,000 A interrupting rating at 600 VAC and 20,000 A at 300 VDC, with a physical size of 1 1/8" x 4 5/8". It provides Type 2 "No Damage" protection for NEMA and IEC motor circuit components.

Key Specifications
• Amperage: 70 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Class: J (Class J)
• Time Delay (Slo-Blo) Dual Element
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Indicator: Yes (blown fuse indicator)
• Physical Size: 1 1/8" x 4 5/8"
• Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
• Mounting Type: Cartridge
• Series: JTD

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTD70ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Powr-Pro
• Voltage : 600
• Amperage : 70
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 1.13
• Class Rating : J
• Barrels : 1

Product Data

• Weight : 25
