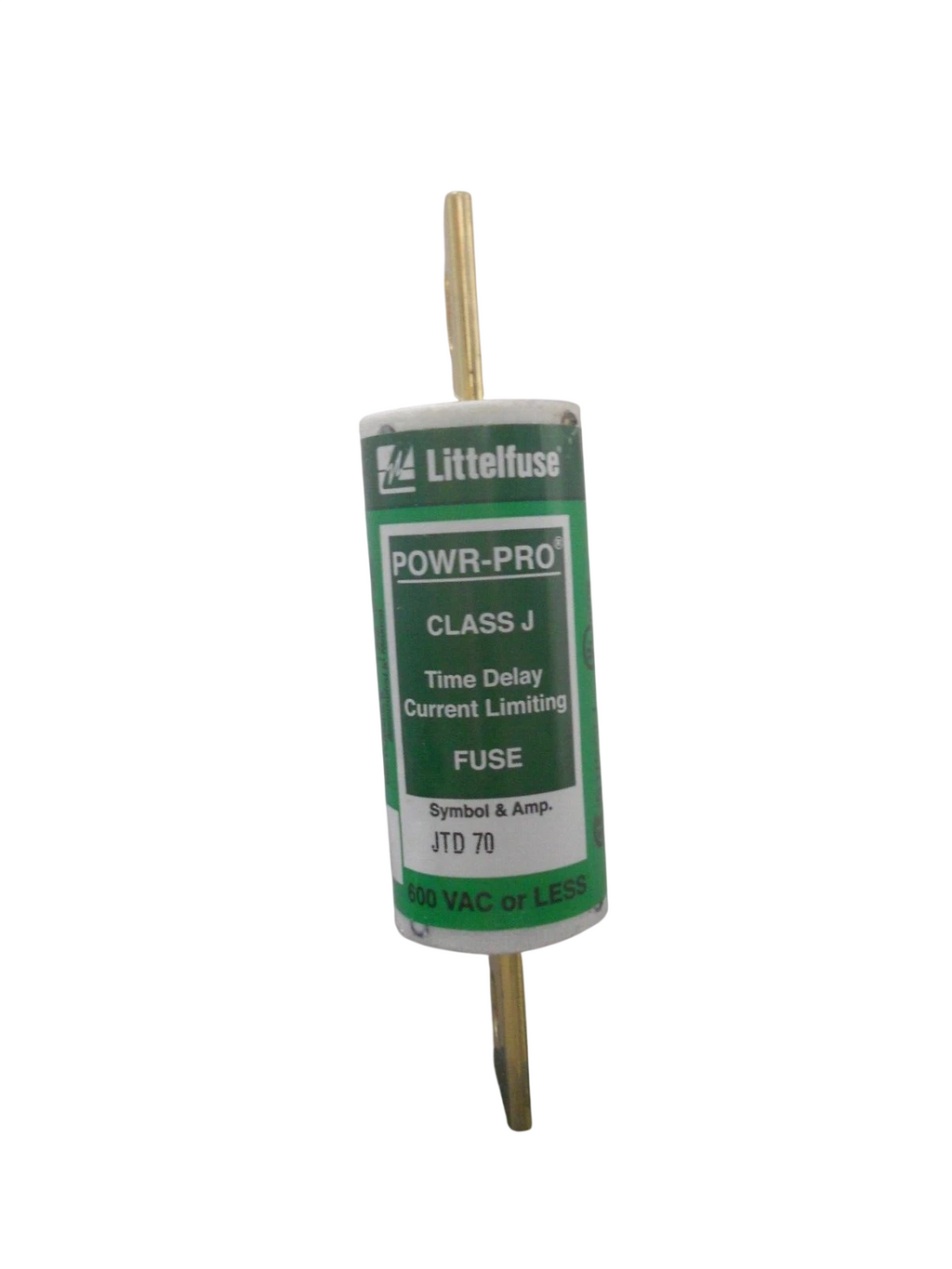

JTD70 - Littelfuse 70A 600V AC Class J Time Delay Fuse Dual Element

JTD70

JTD70 is a 70 Amp, 600 Volt AC Class J time delay fuse from Littelfuse designed for reliable circuit protection.This Littelfuse JTD Series fuse features a dual-element, time delay design with POWR-PRO technology for superior current limiting and reduced nuisance openings. It offers Type 2 "No Damage" protection for motor circuits and general purpose applications, with an interrupt rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse is UL Listed and CSA Certified, measuring 1 1/8" x 4 5/8" for compact mounting.

Key Specifications
• Amperage: 70 A
• Voltage Rating: 600 VAC, 300 VDC
• Fuse Class: UL Class J
• Time Delay, Dual Element
• Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Physical Size: 1 1/8" x 4 5/8"
• Mounting Type: Cartridge Blade
• Certifications: UL Listed (E81895), CSA Certified (LR29862)
• POWR-PRO Technology for current limiting
• IEC Type 2 Protection
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JTD70
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Powr-Pro
• Type : JTD
• Voltage : 600
• Amperage : 70
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 1.13
• Class Rating : J
• Barrels : 1



Product Data

• Weight : 0.3
