Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD-600

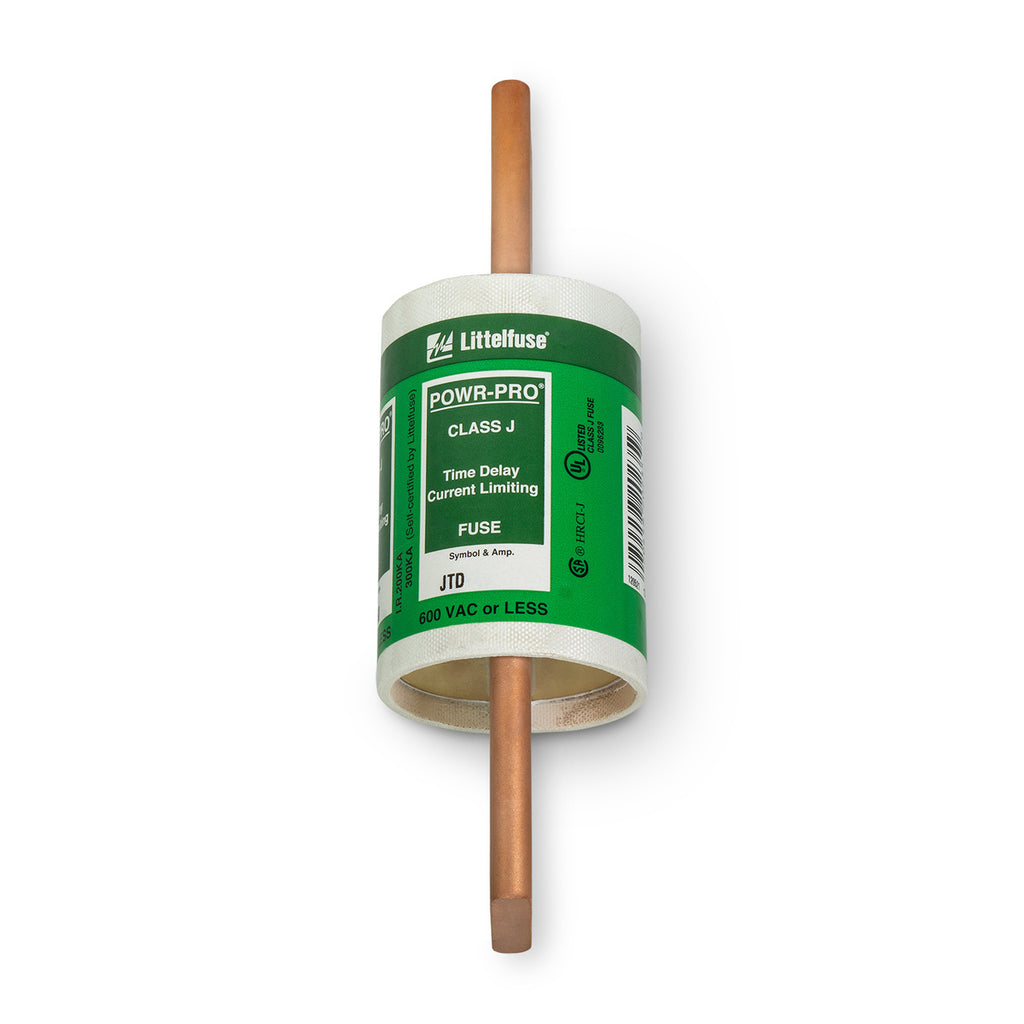

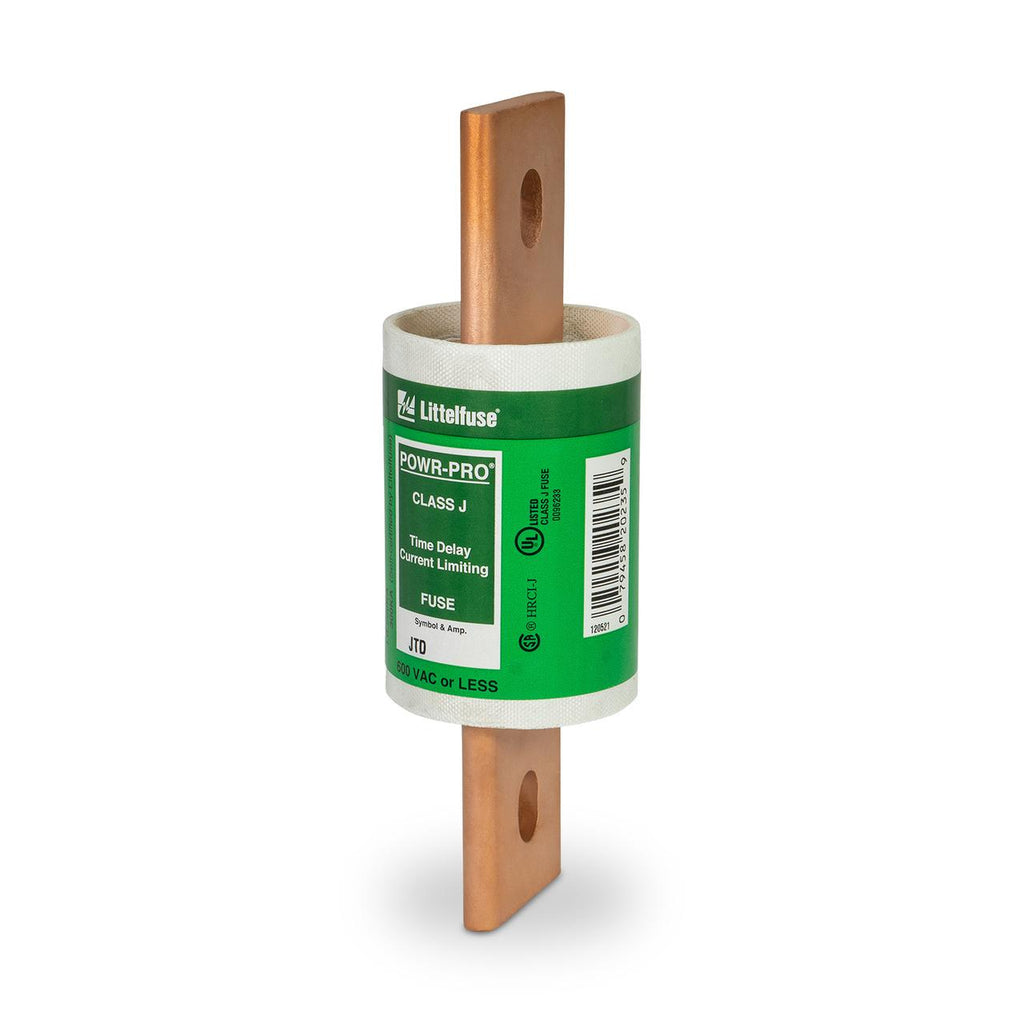

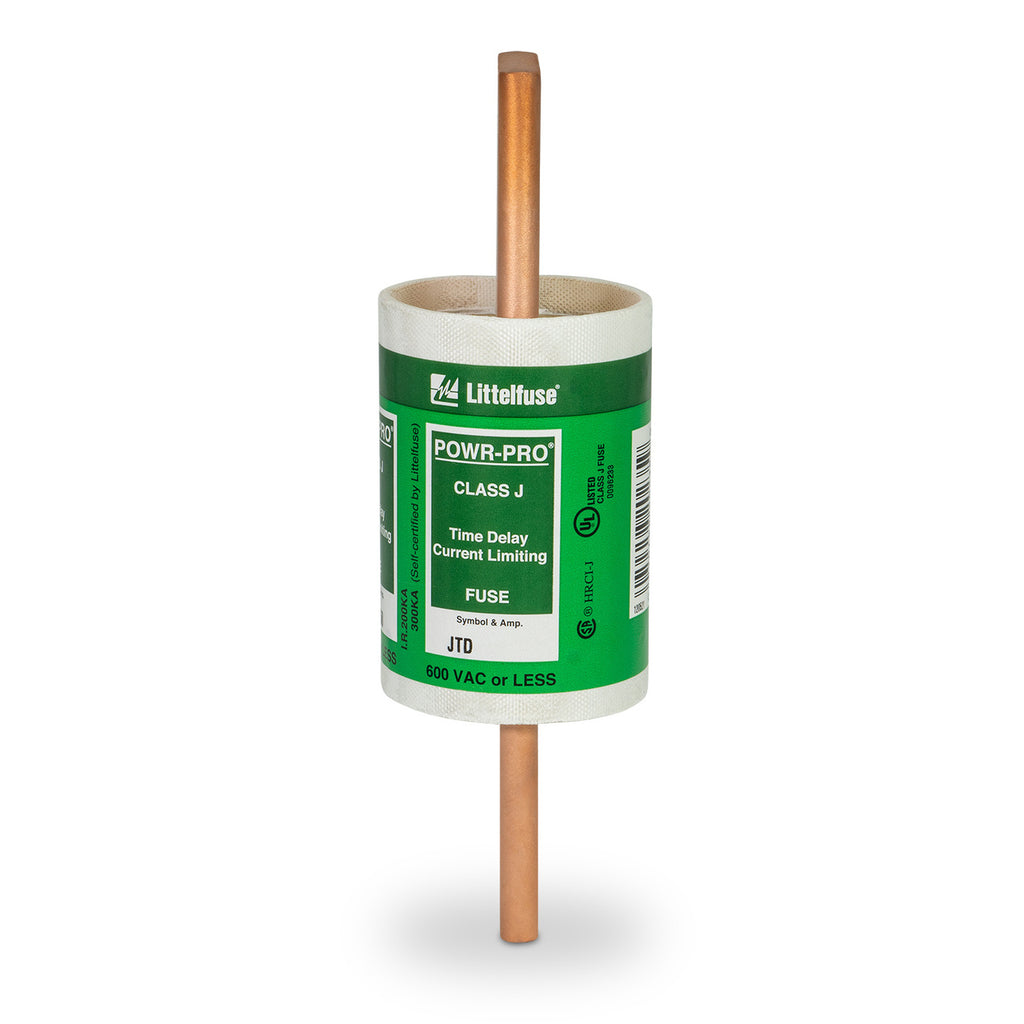

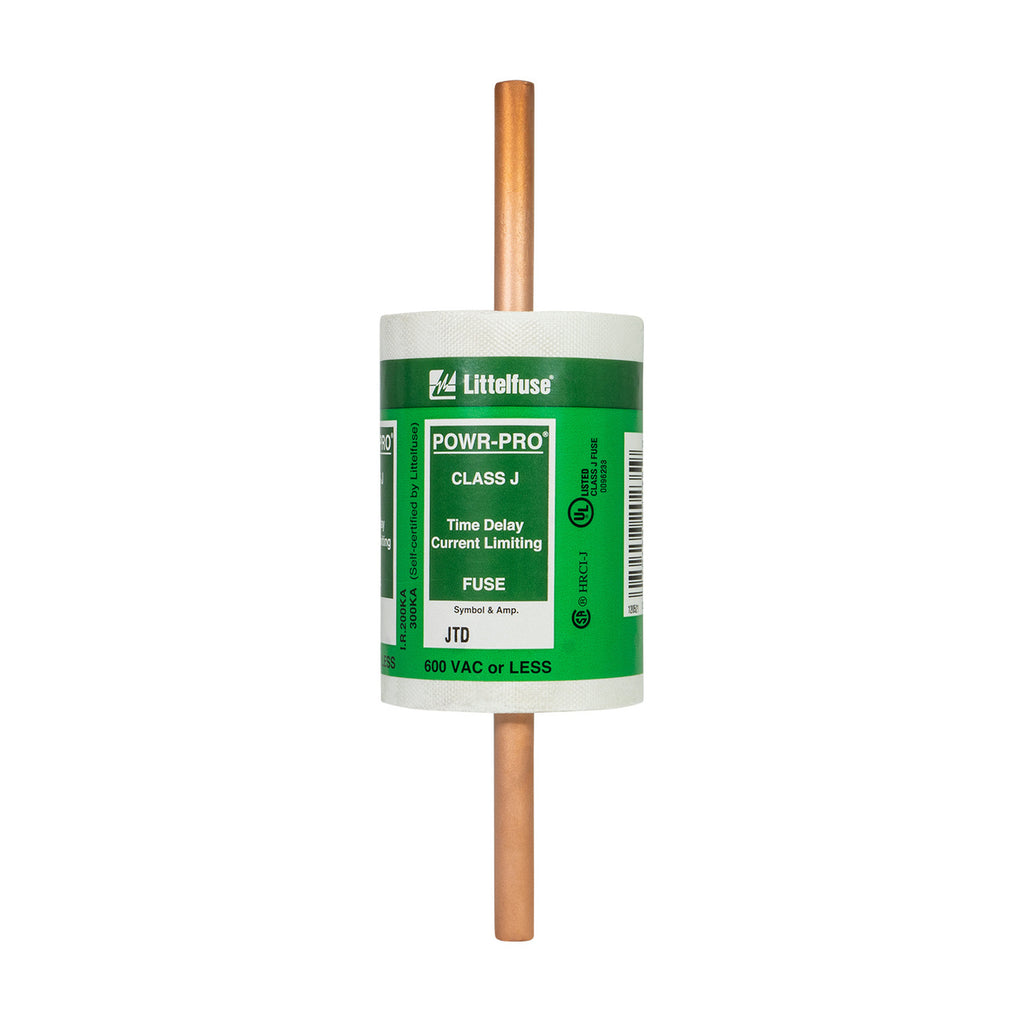

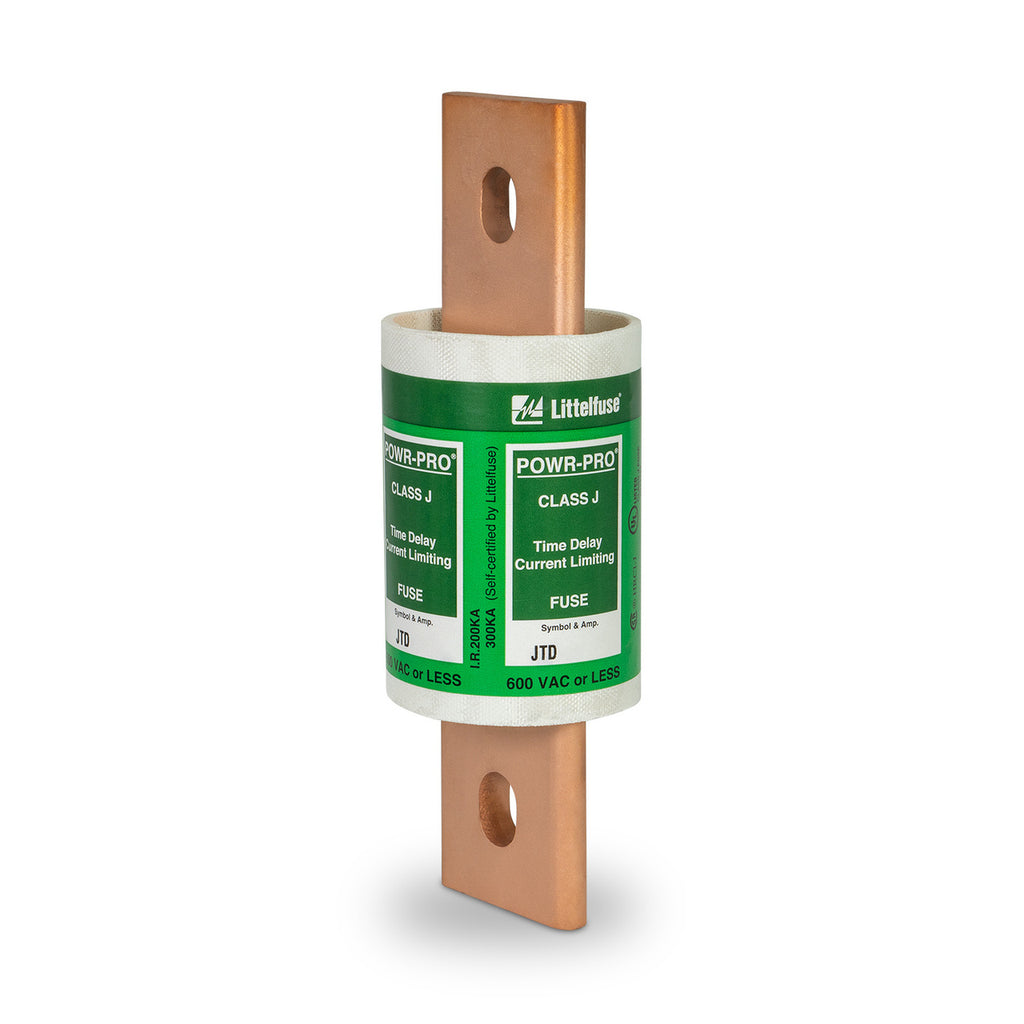

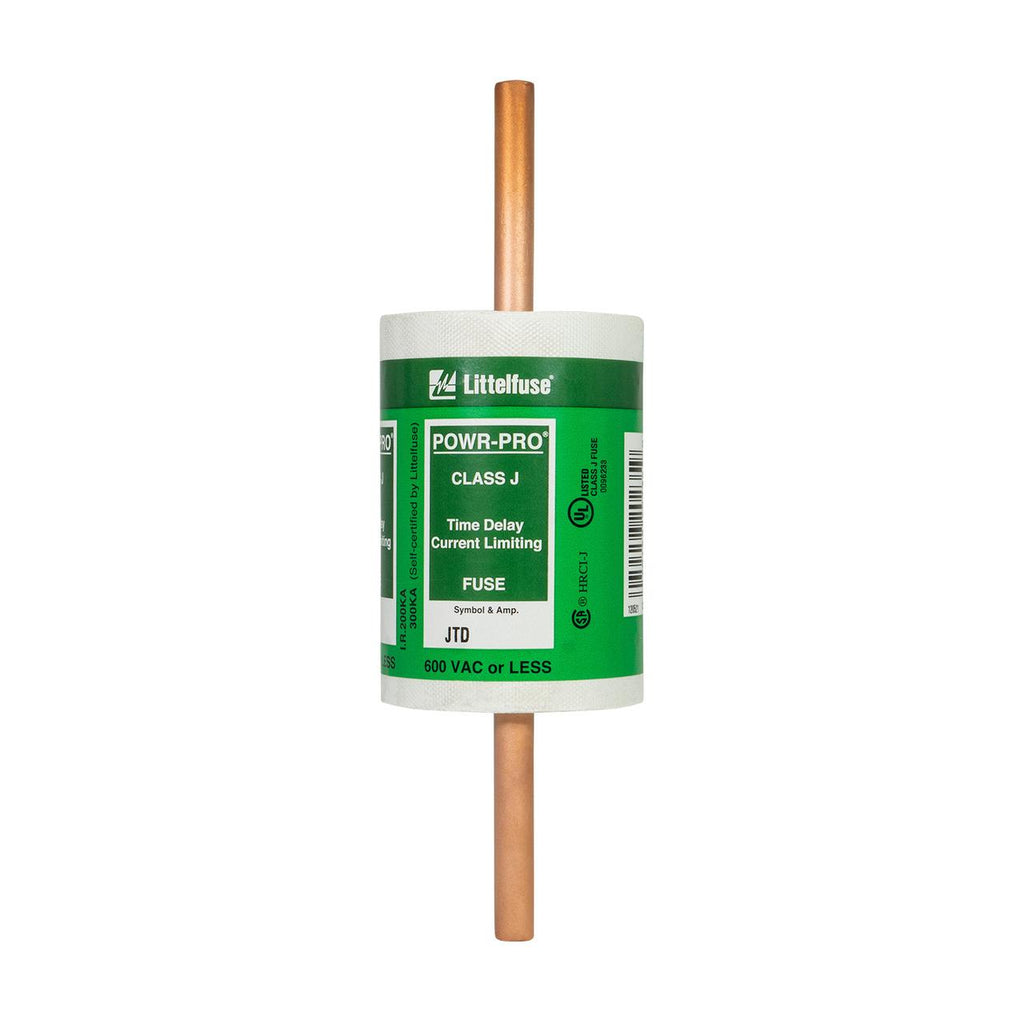

JTD600 is a Littelfuse Class J fuse rated for 600 amps and 600 volts AC with knife-blade construction and time-delay dual-element design.This fuse provides reliable overcurrent protection with a 200kA interrupting rating at 600 VAC and 20kA at 500 VDC. It features a melamine body, brass caps with copper blades, and meets UL 248-8 Class J standards. Certified by UL and CSA, it is designed for high inrush currents and long service life in industrial and commercial applications.
- Amperage: 600 A
- Voltage Rating: 600 VAC, 500 VDC
- Interrupting Rating: 200 kA AC, 20 kA DC
- Fuse Class: J
- Construction: Knife-blade
- Time Delay, Dual Element
- Body Material: Melamine
- Cap Material: Brass with Copper Blade
- Standards: UL 248-8, CSA Certified
- Country of Origin: Mexico
Specifications
- Part Number: JTD-600
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : Line Card
Product Data
- UPC : 079458031935
- GTIN : 00079458202373
- Weight : 7
- Certification : UL, CE, CSA
