Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description
JTD45ID

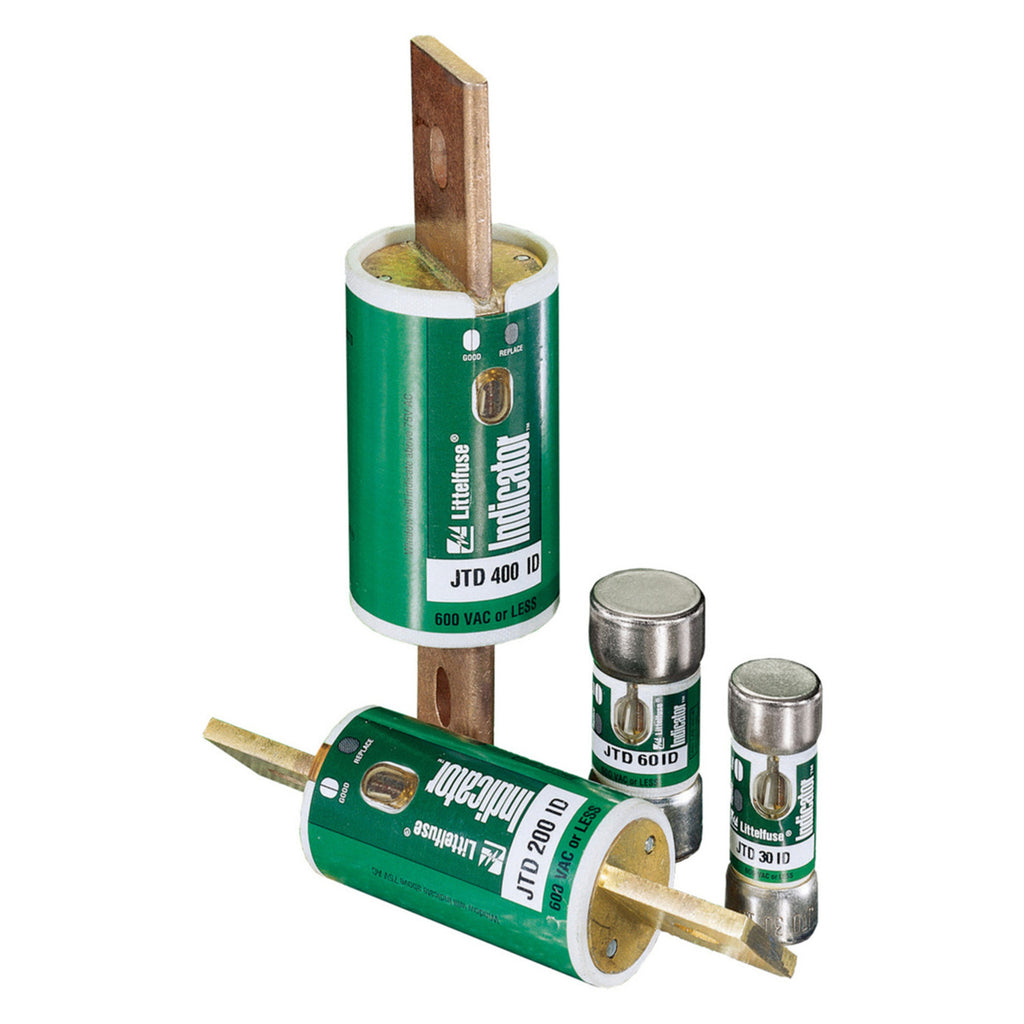

JTD45ID is a Littelfuse POWR-PRO Class J time delay fuse with visual blown indication, designed for reliable circuit protection in compact applications. The JTD45ID fuse features a patented design that reduces nuisance openings and provides Type 2 "No Damage" protection for both NEMA- and IEC-type motor circuit components. It is ideal for use in motor control centers, fused combination motor controllers, transformers, and general purpose circuits where space is limited and high in-rush currents are present.
- Current Rating: 45A
- Maximum AC Voltage: 600VAC
- Maximum DC Voltage: 300VDC
- Interrupting Rating: 200kA RMS symmetrical AC, 20kA DC
- Mounting Type: Fuse Block / Clip / Holder
- Series: JTD_ID Indicator
- Opening Type: Time Delay (Slo-Blo)
- Fuse Class: Class J
- Indicating: Yes
- Body Material: Melamine
- Certifications: UL 248-8, CSA
Specifications
- Part Number: JTD45ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Pro
- Voltage : 600
- Amperage : 45
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 1.06
- Class Rating : J
- Barrels : 1
Product Data
- Weight : 5.19
