Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

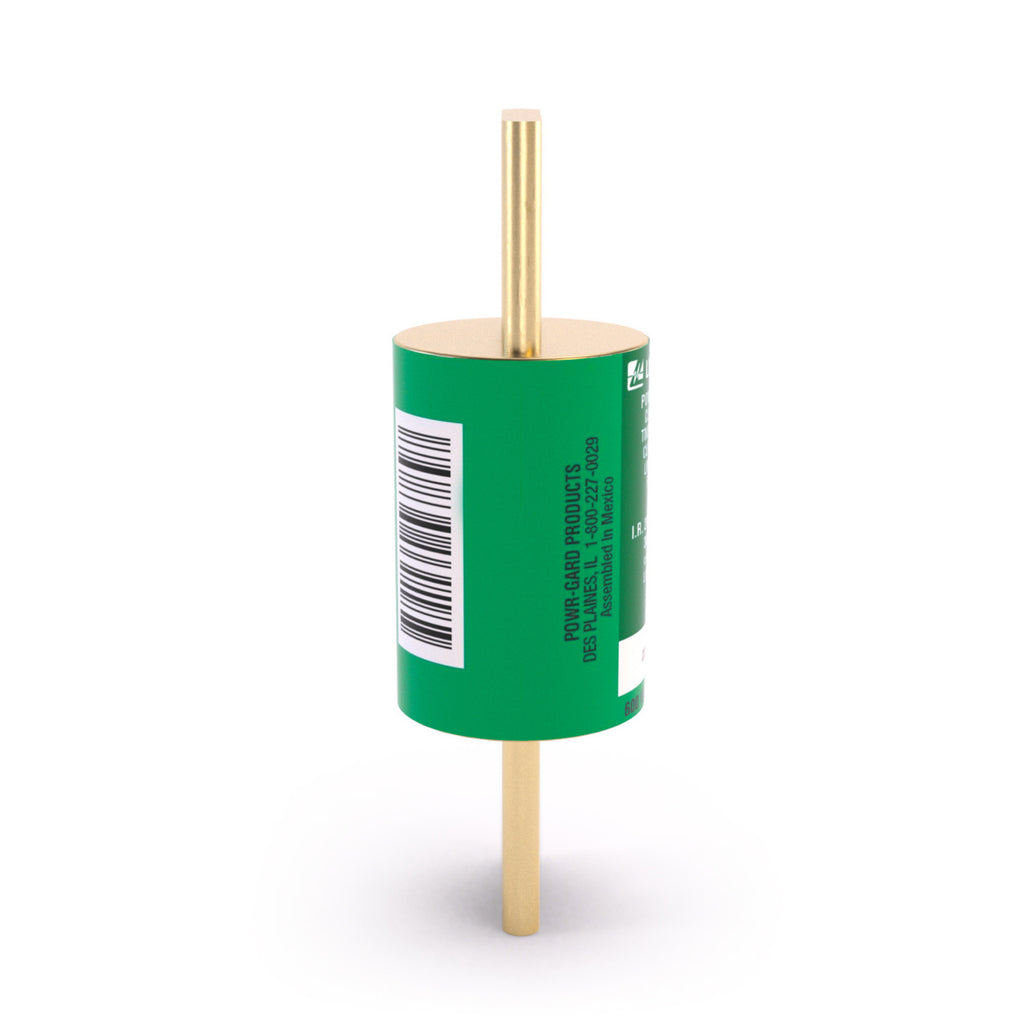

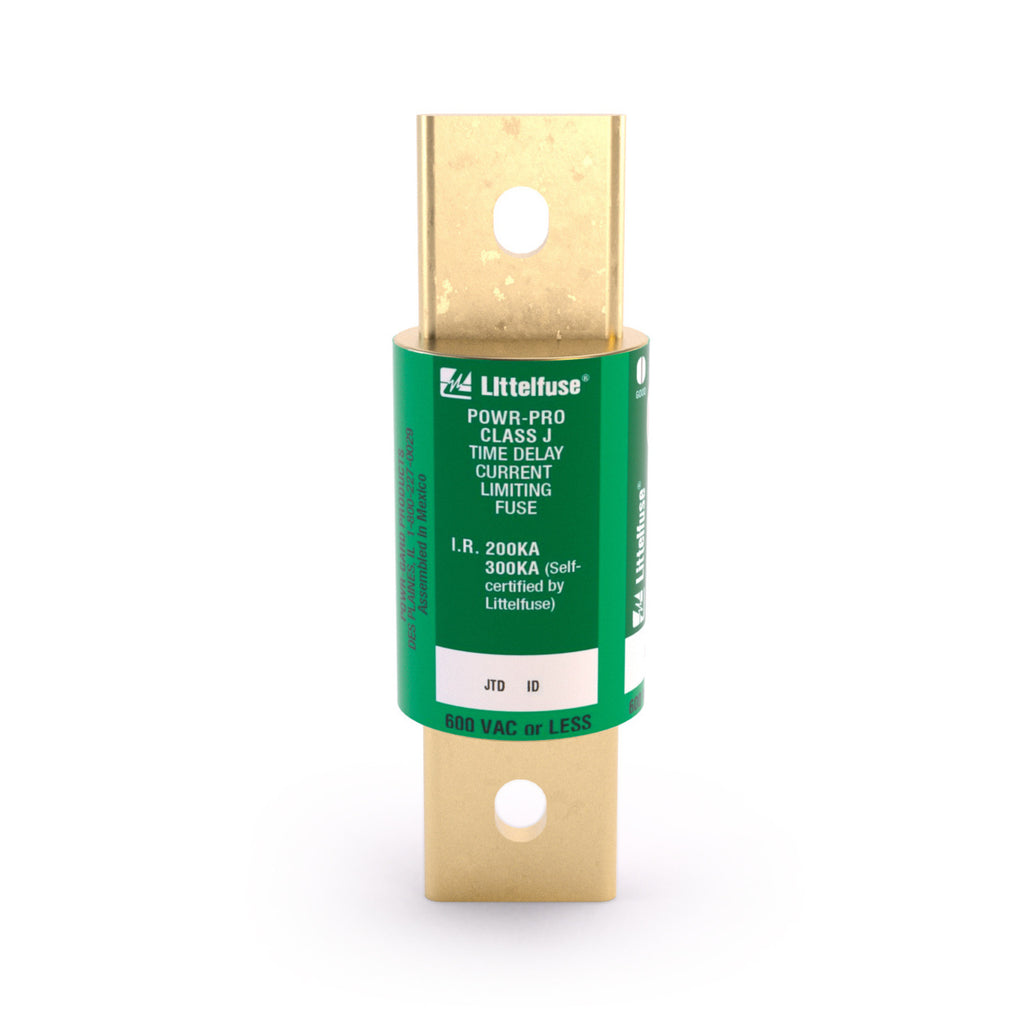

JTD450ID
JTD450ID is a Littelfuse Class J time delay fuse designed for reliable circuit protection in demanding electrical environments. This fuse features a visual blown indication and is built for use in systems requiring high in-rush current tolerance and compact size. The JTD450ID fuse is part of the Littelfuse POWR-PRO series and offers advanced current-limiting technology for maximum protection. It is ideal for motor control centers, fused combination motor controllers, transformers, and general purpose circuits. The fuse provides Type 2 "No Damage" protection, reducing downtime and increasing safety.
- 450A continuous current rating
- 600VAC maximum voltage
- 500VDC maximum voltage
- Class J fuse type
- Time delay (slow blow) operation
- Dual element construction
- Visual blown indication
- Current limiting
- 200 kA AC interrupting rating
- 20 kA DC interrupting rating
- UL 248-8 listed
- Bolt-in mounting
Specifications
- Part Number: JTD450ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse

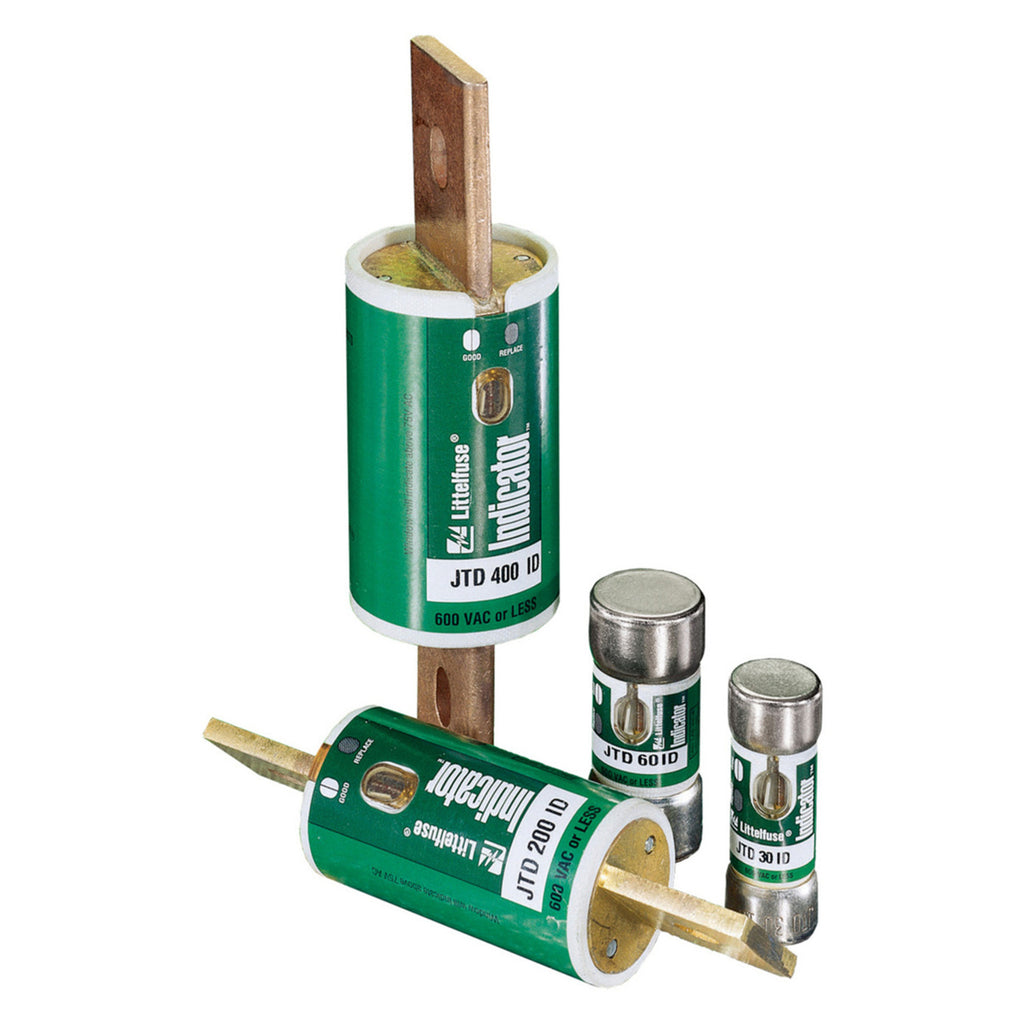

- Family : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Type : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031911
- GTIN : 00079458031911
- Country of Origin : Mexico
- Weight : 3
- Certification : Standard 248-8 UL Listed/CSA
