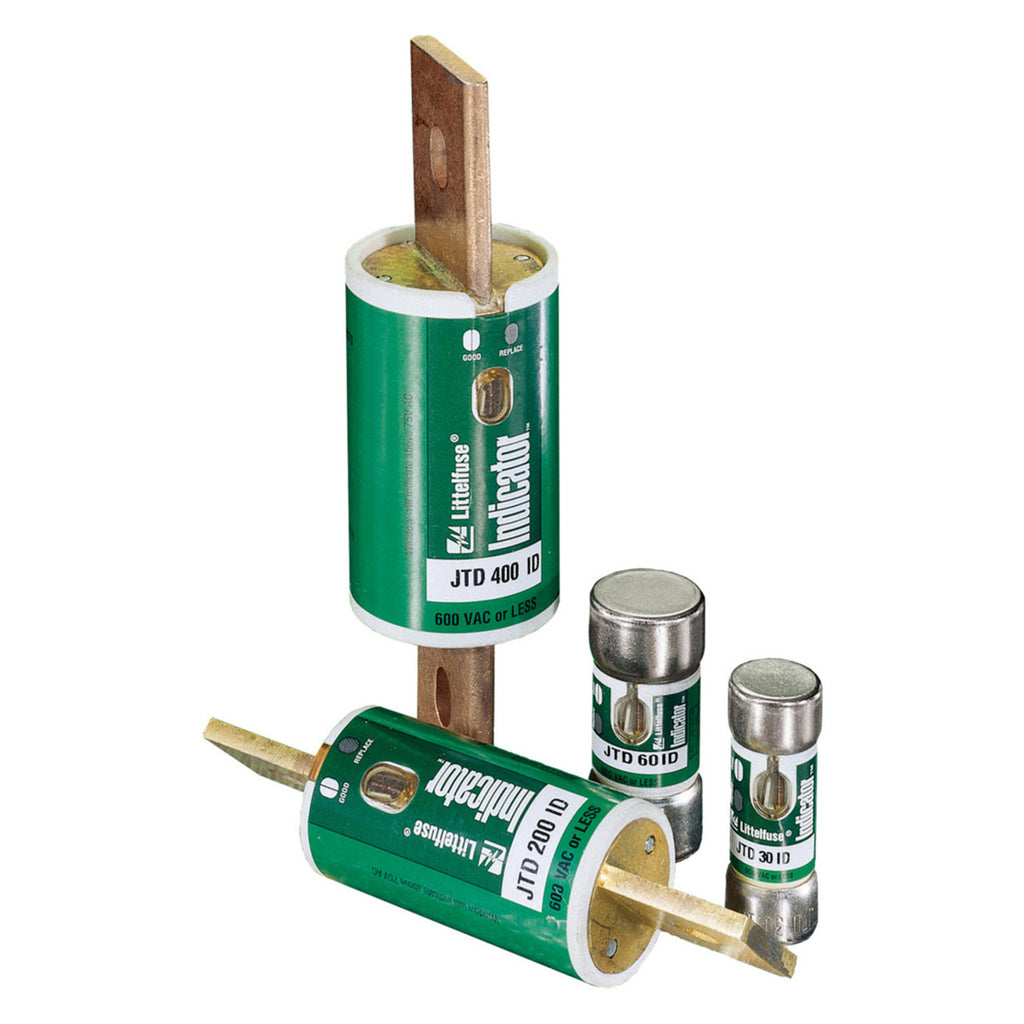

JTD40ID - Littelfuse 40A 600V Class J Time Delay Indicator Fuse

JTD40ID

JTD40ID is a Littelfuse Class J time-delay indicator fuse designed for high performance and reliable circuit protection.The JTD40ID fuse features a 40 amp continuous rating with a 600 VAC and 300 VDC voltage rating. It offers a 20 kA interrupting rating at 300 VDC and 200 kA at 600 VAC, providing superior current-limiting protection. This fuse includes a patented design to reduce nuisance openings and provides Type 2 "No Damage" protection for motor circuits and general-purpose applications. It is UL 248-8 and CSA certified, with a compact cylindrical cartridge body and visual blown fuse indication.

Key Specifications
• Amperage: 40 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupting Rating: 200 kA AC / 20 kA DC
• Fuse Class: J (Class J)
• Time Delay: Dual-element
• Indicator: Visual blown fuse indication
• Mounting Type: Cartridge body
• Certifications: UL Listed, CSA Certified
• Dimensions: 2-3/8 inch length, 1-1/16 inch diameter
• Series: JTD_ID POWR-PRO
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: JTD40ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage
• Family : Powr-Pro
• Voltage : 600
• Amperage : 40
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 1.06
• Class Rating : J
• Barrels : 1



Product Data

• Weight : 0.15
