Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

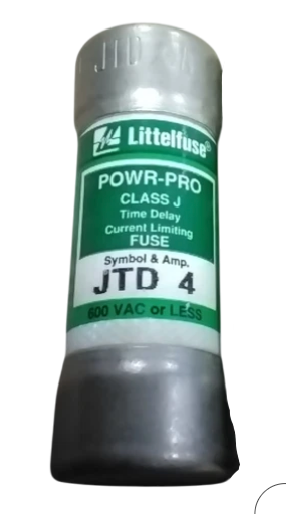

JTD4
JTD4 is a Littelfuse Class J time-delay fuse designed for reliable circuit protection in electrical power distribution systems. This fuse features POWR-PRO technology for superior protection and longer service life. The JTD4 fuse is constructed with a dual-element, cartridge-style body for use in applications requiring space-saving solutions and high in-rush current tolerance. It provides Type 2 "No Damage" protection for both NEMA- and IEC-type motor circuit components, making it suitable for motor control centers, transformers, and general-purpose circuits.
- Amperage Rating: 4 A
- Maximum AC Voltage: 600 V
- DC Voltage: 300 V
- Interrupting Rating: 200 kA AC, 20 kA DC
- Mounting Type: Cartridge-style
- Series: JTD
- Technology: POWR-PRO
- Protection Type: Time-Delay, Dual-Element
- Standards: UL 248-8, CSA Certified
- Body Material: Melamine
- Cap Material: Nickel-plated Bronze
- Application: Motor control centers, transformers, general circuits
Specifications
- Part Number: JTD4
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Pro
- Voltage : 600
- Amperage : 4
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 0.81
- Class Rating : J
- Barrels : 1
Product Data
- Weight : 25
