Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
JTD350ID

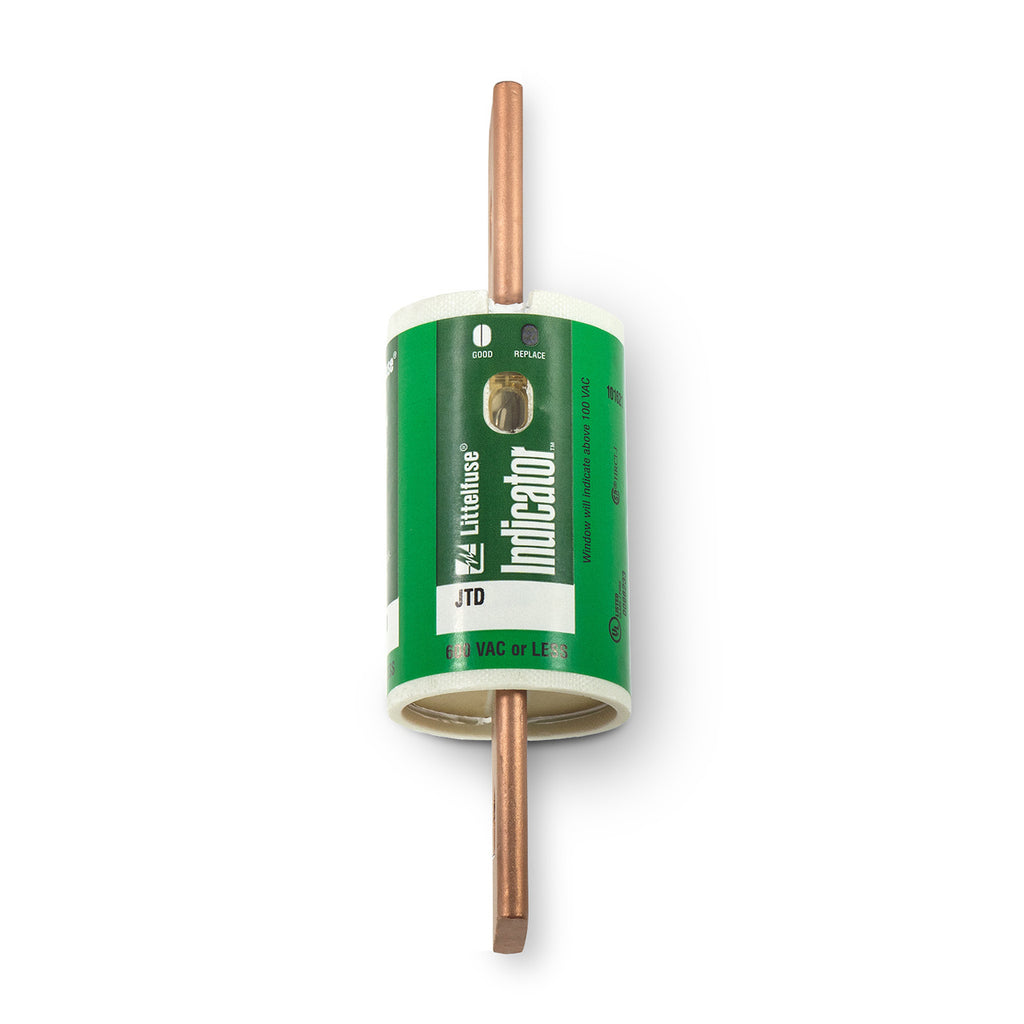

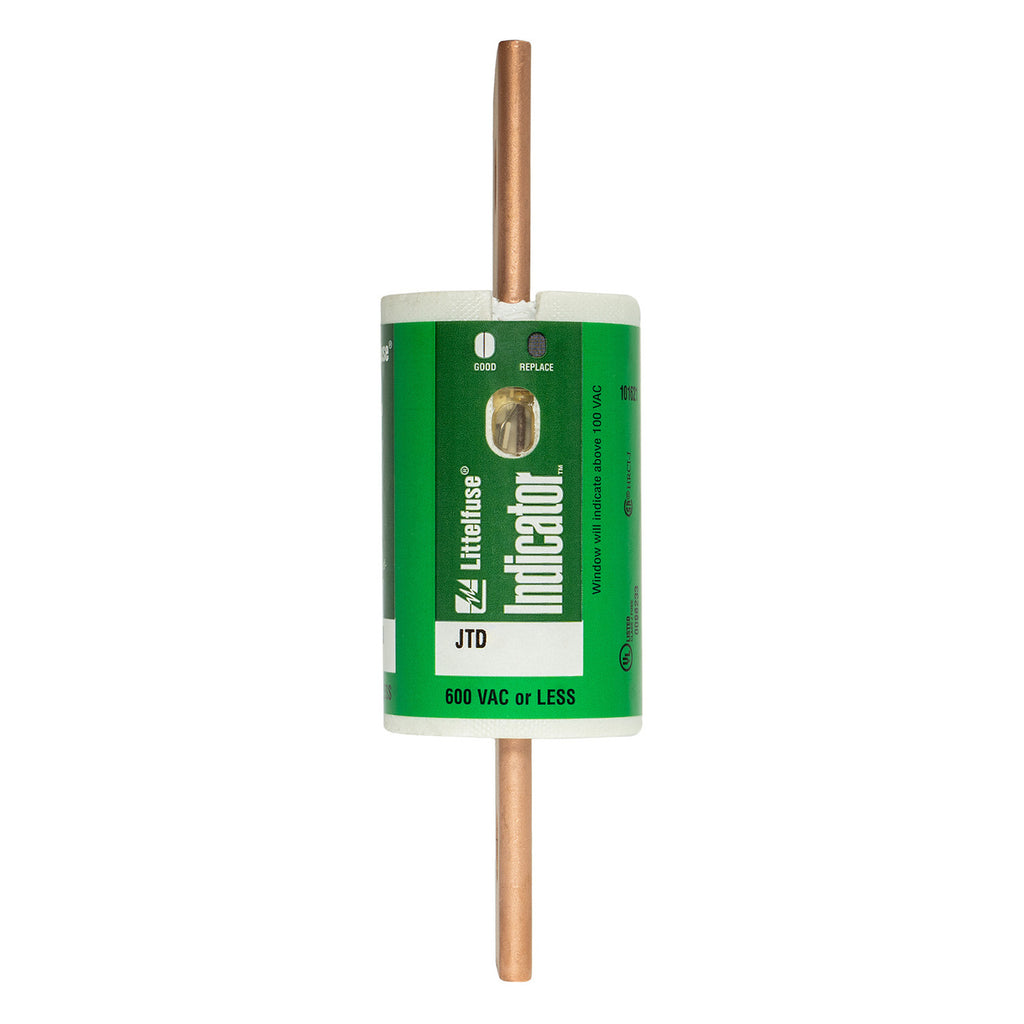

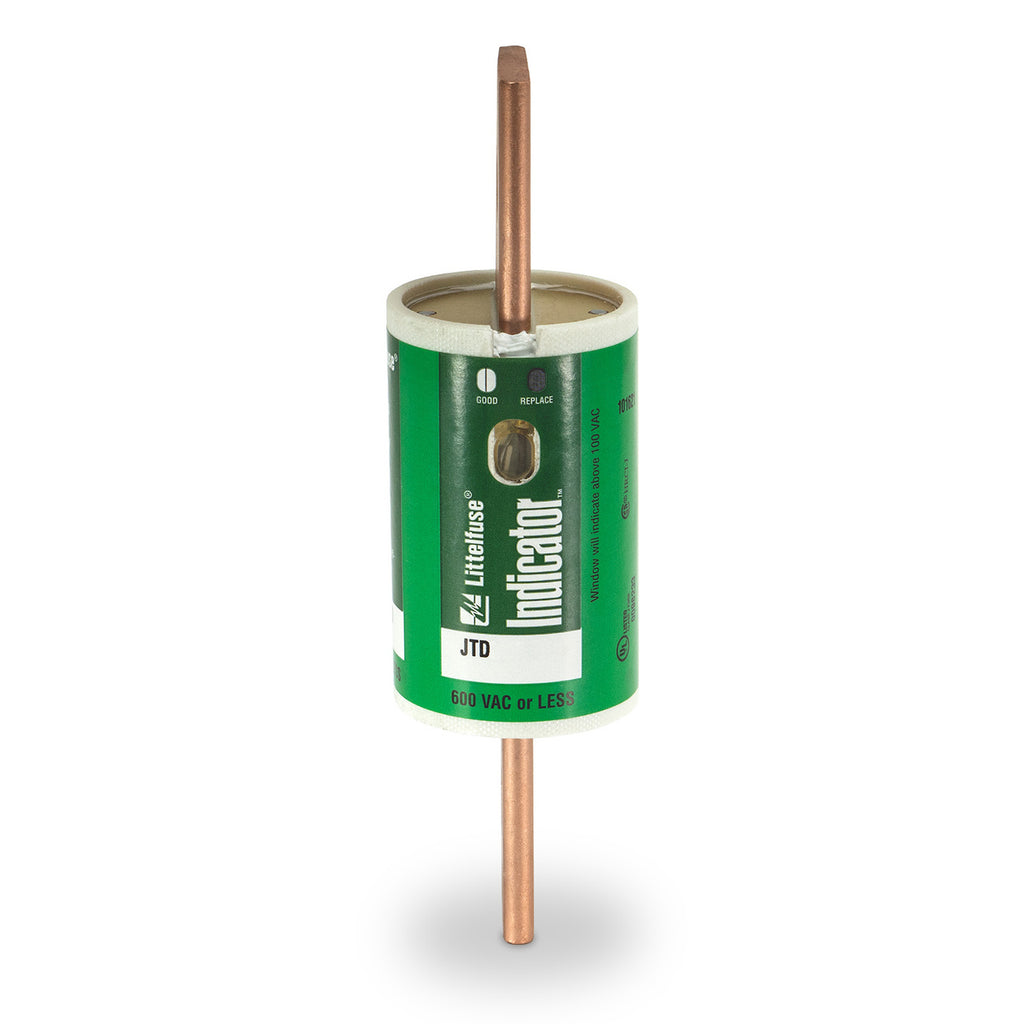

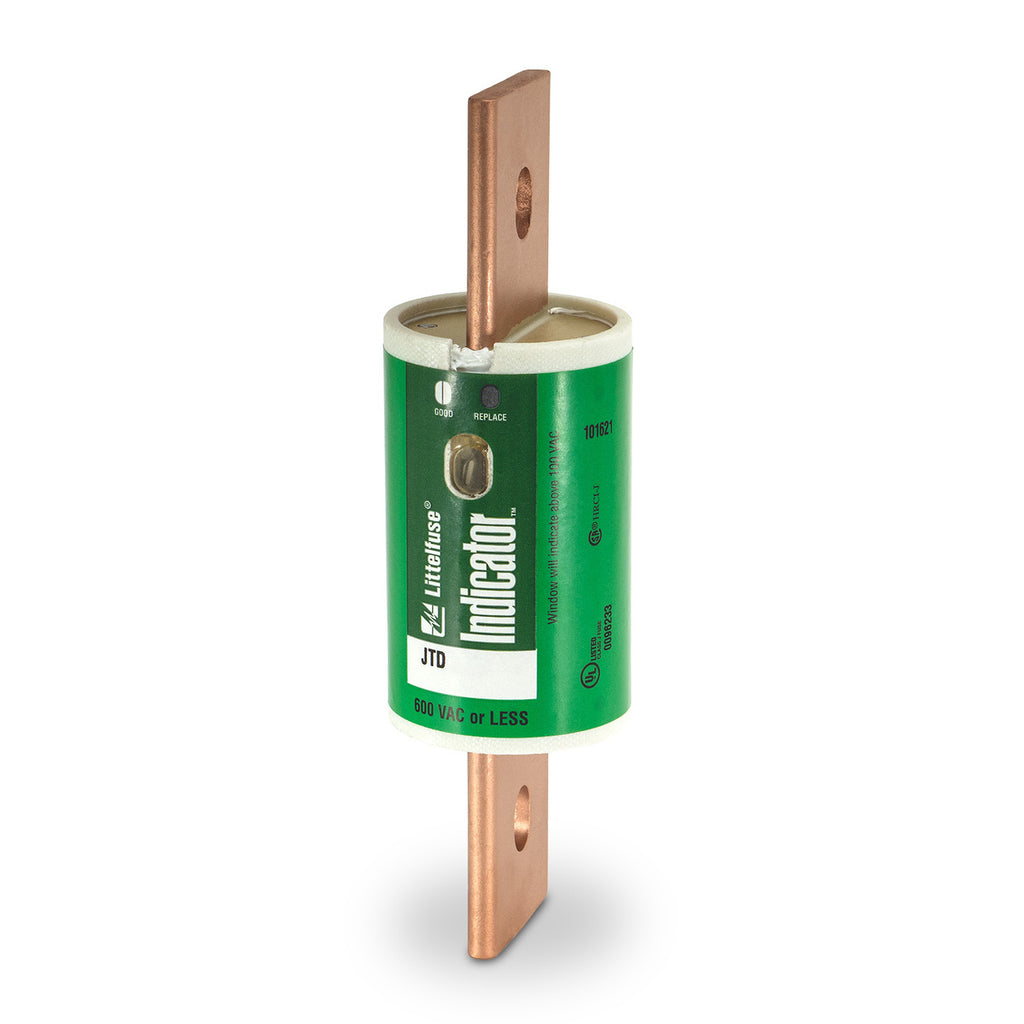

JTD350ID is a Littelfuse Class J time delay fuse designed for high-performance circuit protection in demanding electrical environments. This fuse features current-limiting technology and POWR-PRO® advanced design for reliable operation and reduced nuisance openings. The JTD350ID is ideal for use in motor control centers, transformers, and general-purpose circuits where space is limited and high in-rush currents are present. It provides Type 2 "No Damage" protection for both NEMA- and IEC-rated equipment, and includes blown fuse indication for increased safety and reduced downtime.
- Amperage Rating: 350A
- AC Voltage Rating: 600V
- DC Voltage Rating: 500V
- Interrupting Rating: 200,000A symmetrical @ 600VAC
- DC Interrupting Rating: 20,000A @ 500VDC
- Fuse Type: Class J
- Response Time: Time Delay
- Mounting Type: Cartridge Body
- Protection Type: Current Limiting, Type 2
- Standards: UL 248-8, CSA Certified
- Body Material: Melamine
- Cap Material: Brass with Copper Blade
Specifications
- Part Number: JTD350ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Type : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Connection : Bolt-In
- Diameter : 2
- Class Rating : J
- Barrels : 1
Product Data
- UPC : 079458031898
- GTIN : 00079458031898
- Country of Origin : Mexico
- Weight : 1
- Certification : Standard 248-8 UL Listed/CSA
