JTD225ID - Littelfuse 225 Amp 600 Volt Class J Time Delay Fuse with Indicator

JTD225ID

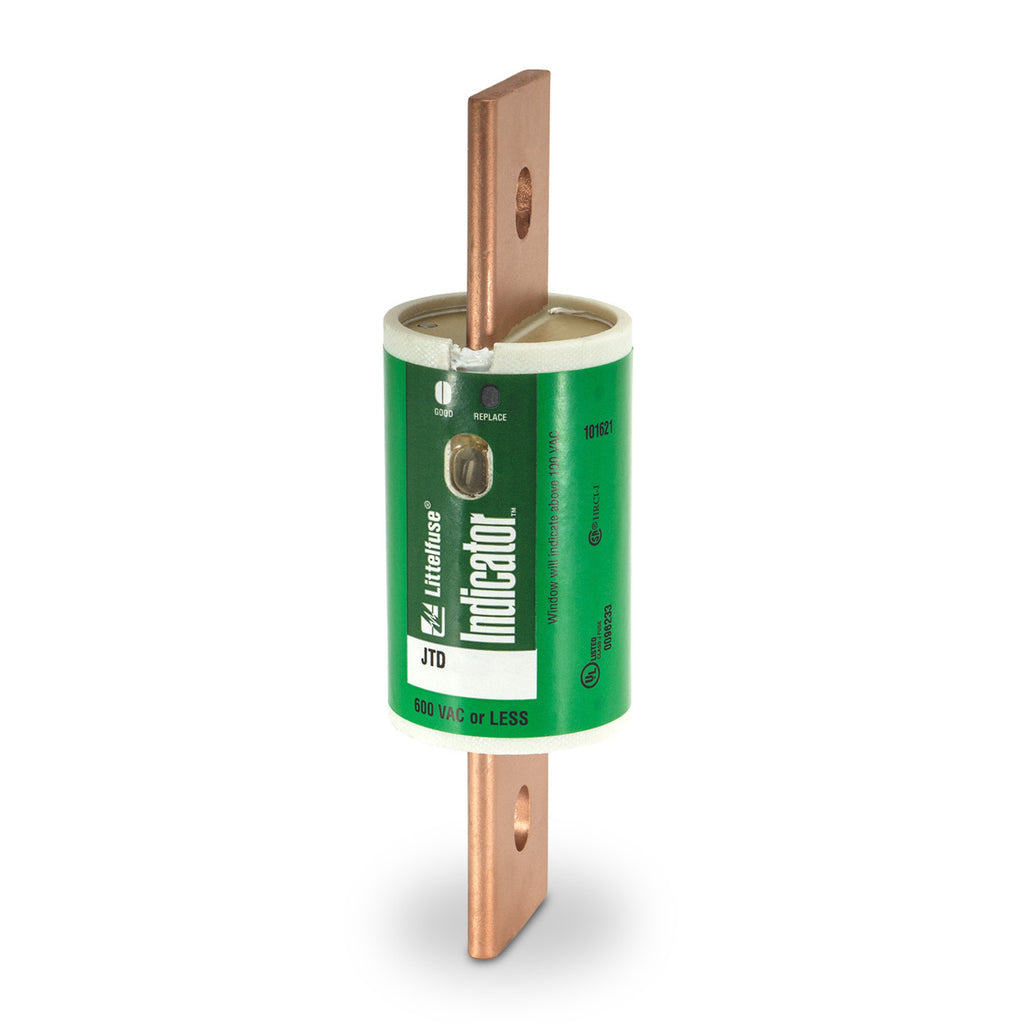

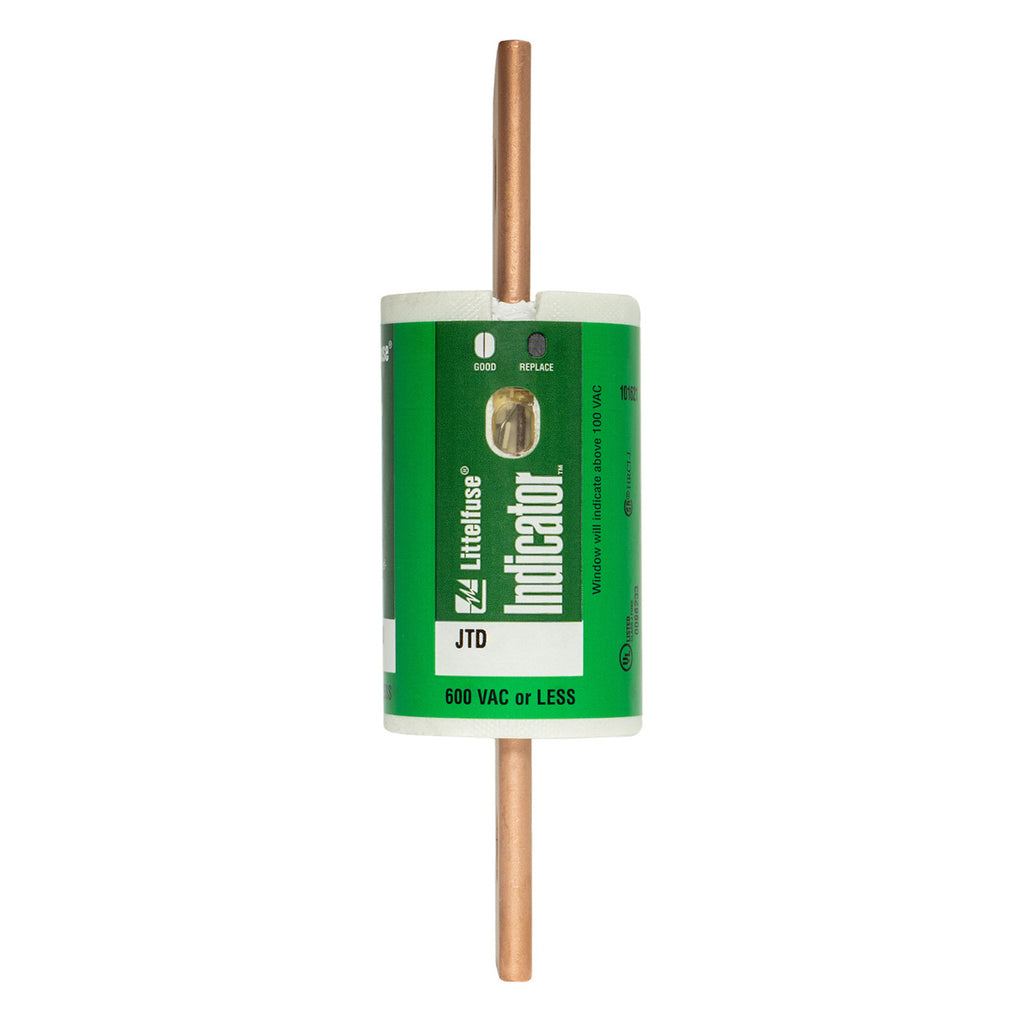

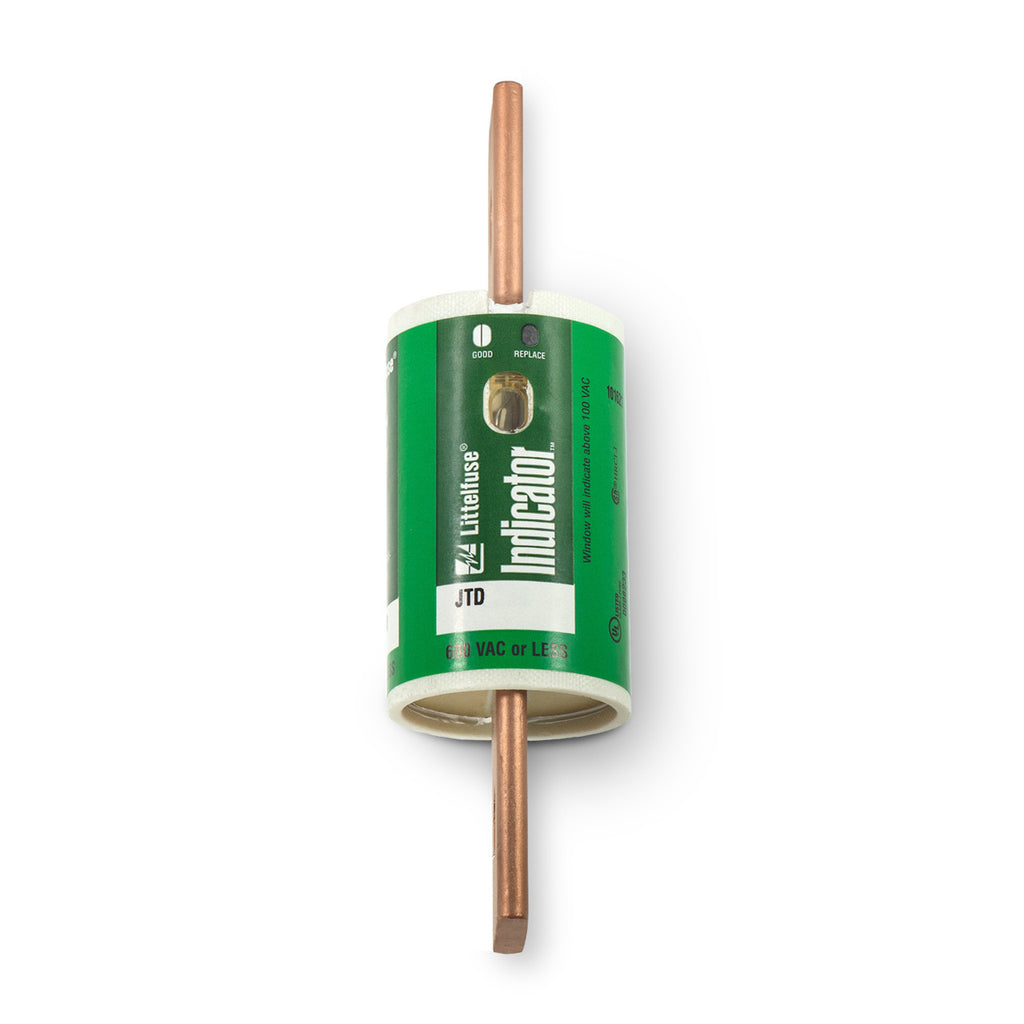

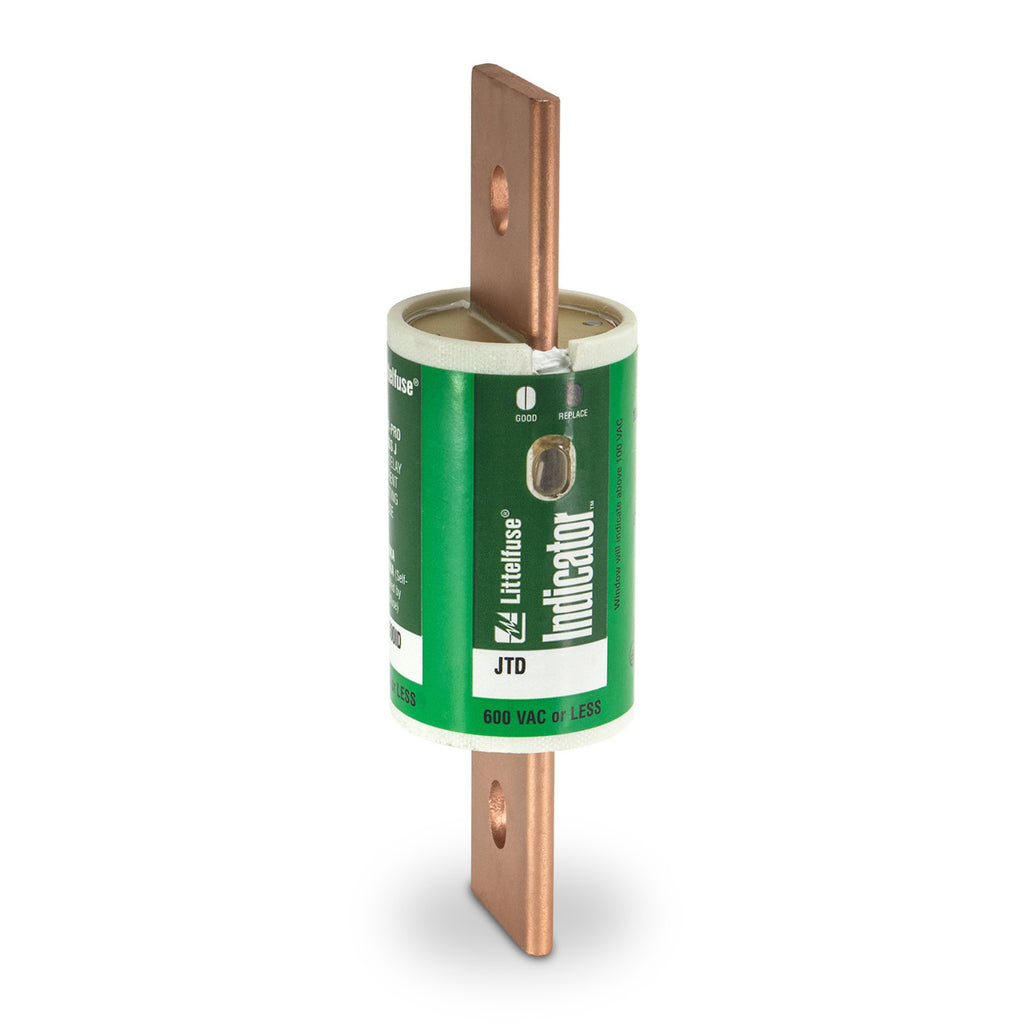

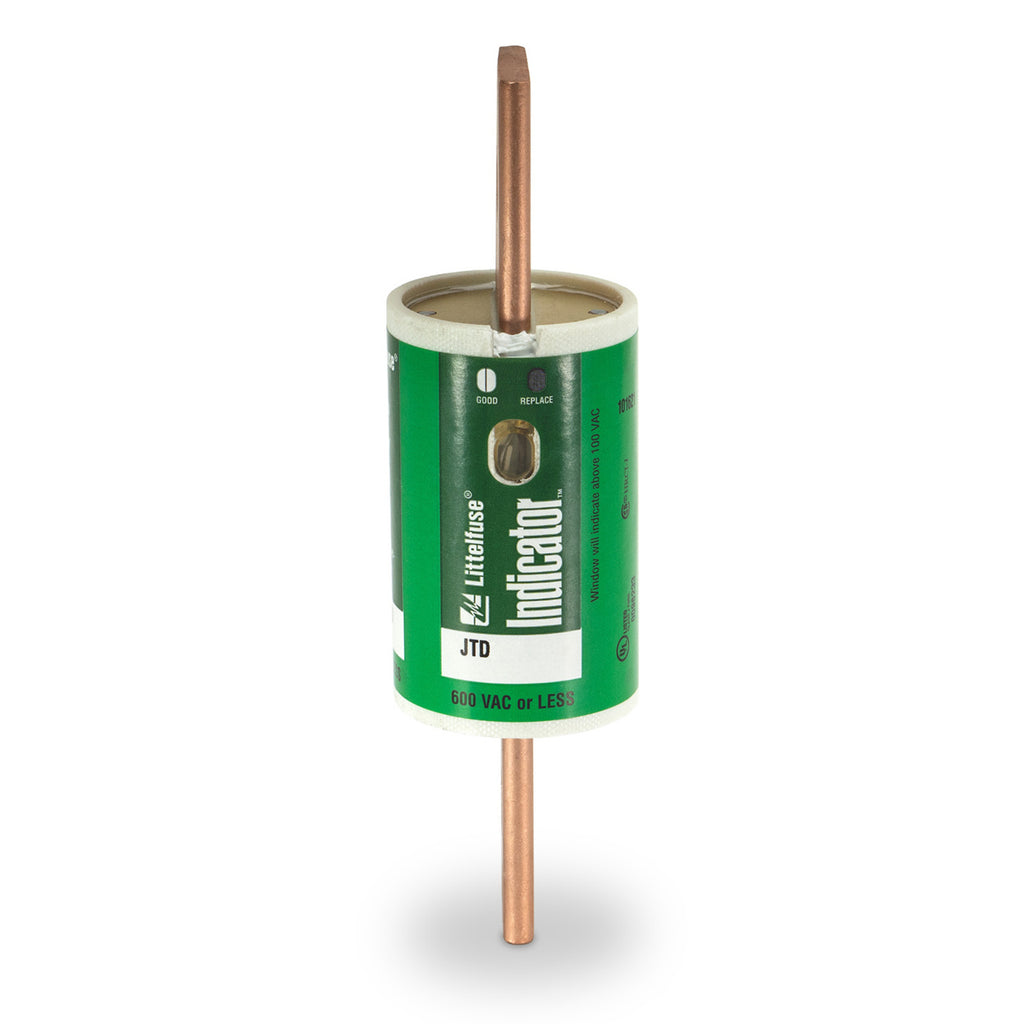

JTD225ID is a Littelfuse Class J time delay fuse rated for 225 amps and 600 volts AC, featuring a visual blown fuse indicator for enhanced safety and maintenance. This fuse provides reliable current limiting protection in a compact design.

The JTD225ID fuse is a POWR-PRO® advanced technology product designed for circuits with high inrush currents. It offers IEC Type 2 "No Damage" motor branch-circuit short-circuit and ground fault protection. The fuse has a time delay dual-element design that reduces nuisance openings and increases system uptime. It is UL listed, CSA certified, and meets UL 248-8 Class J standards. The fuse features a knife-blade mounting style compatible with fuse blocks or holders and has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 500 VDC.

• Fuse Type: Class J
• Amperage Rating: 225 Amps
• Voltage Rating: 600 VAC / 500 VDC
• Interrupting Rating: 200,000 AIC AC / 20,000 AIC DC
• Response Time: Time Delay (Slow Blow)
• Mounting Type: Knife-Blade
• Visual Blown Fuse Indicator Included
• Dimensions: Approximately 1.5 inch diameter x 5.75 inch length
• Certifications: UL Listed, CSA Certified
• Fuse Protection: IEC Type 2 Protection
• Series: POWR-PRO® JTD_ID

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: JTD225ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
• Type : JTD_ID Series - UL Class J Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 225
• AIC rating : 200kA@600V
• Connection : Bolt-In
• Diameter : 0.81
• Class Rating : J
• Barrels : 1

Product Data

• UPC : 079458031867
• GTIN : 00079458031867
• Country of Origin : Mexico
• Weight : 1
• Certification : Standard 248-8 UL Listed/CSA
